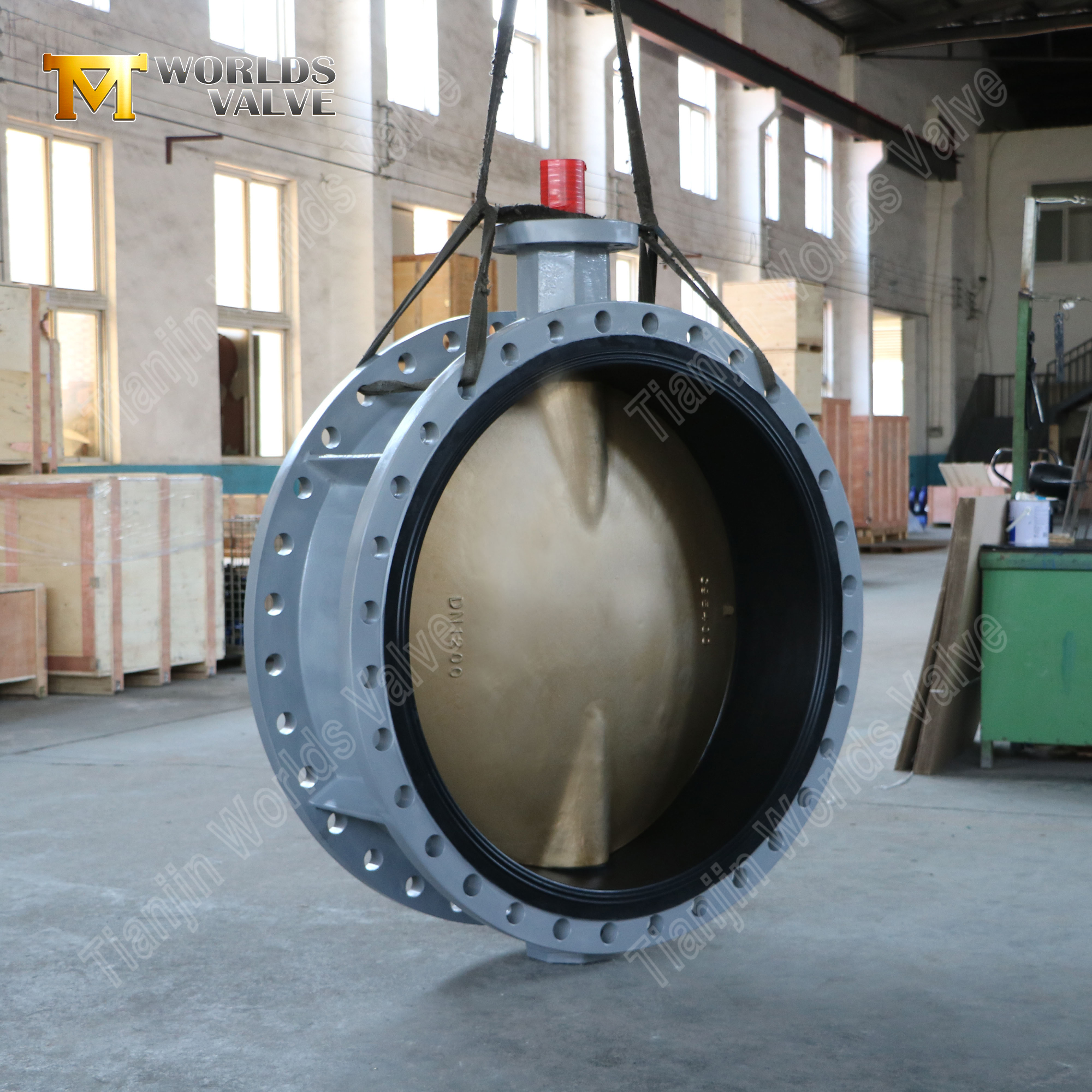

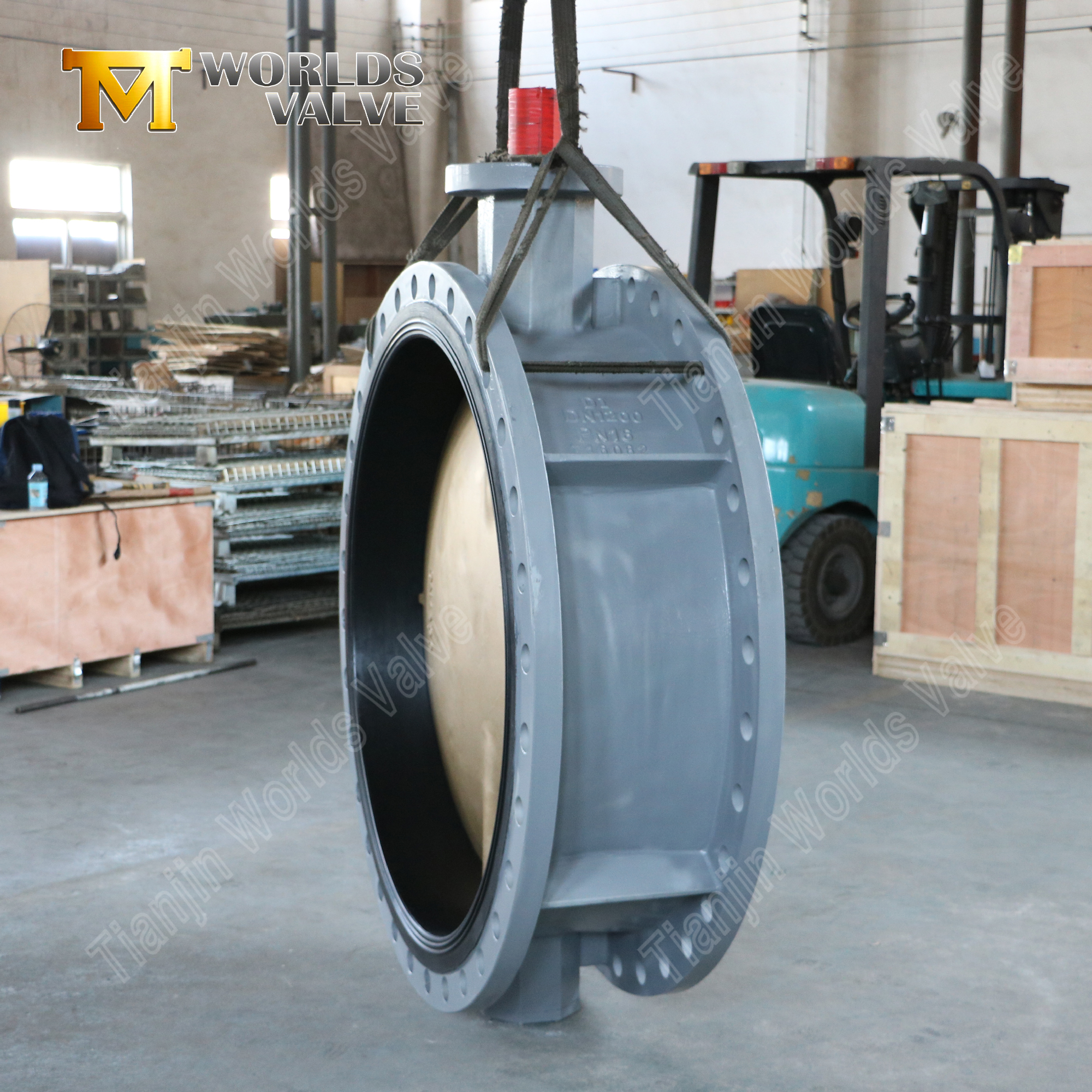

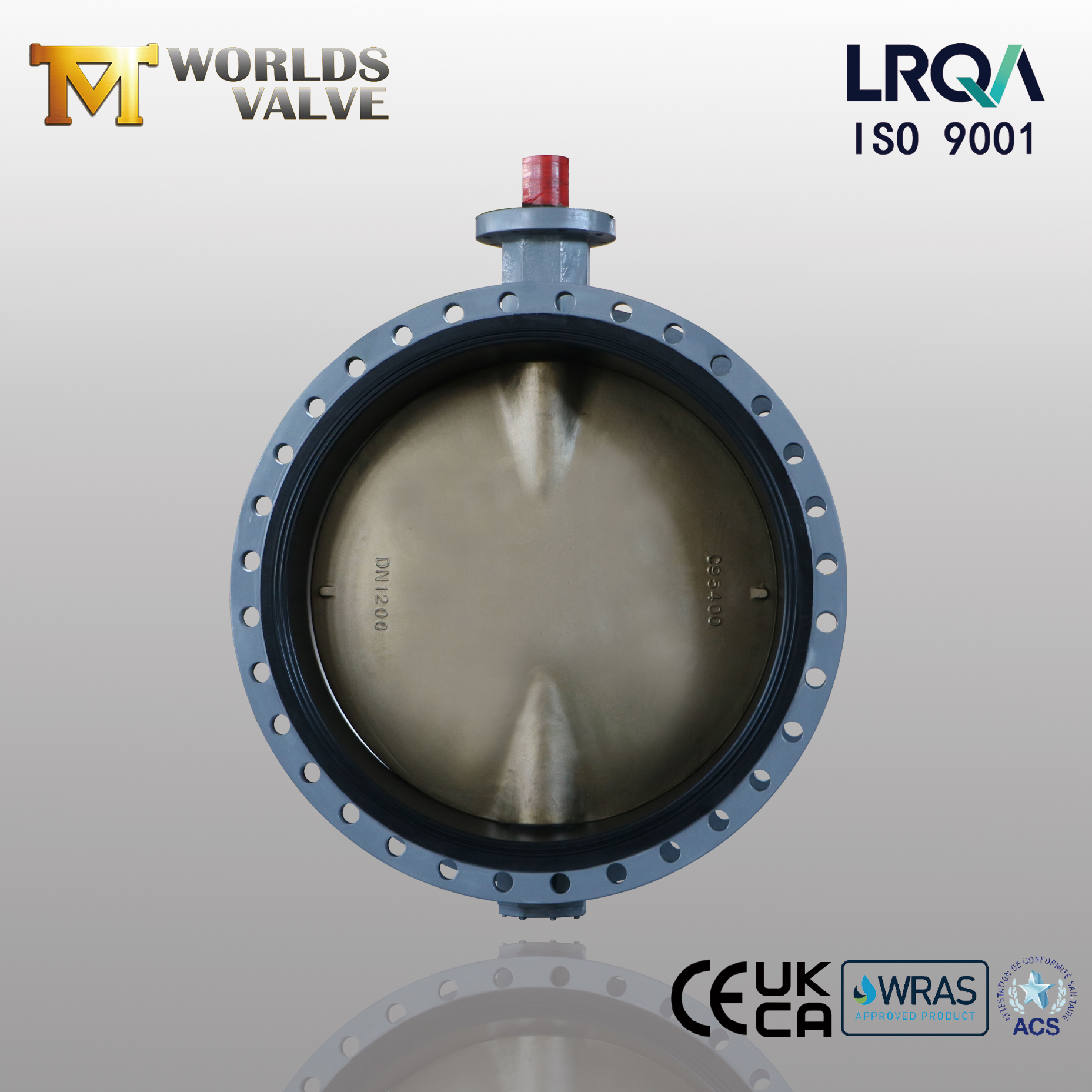

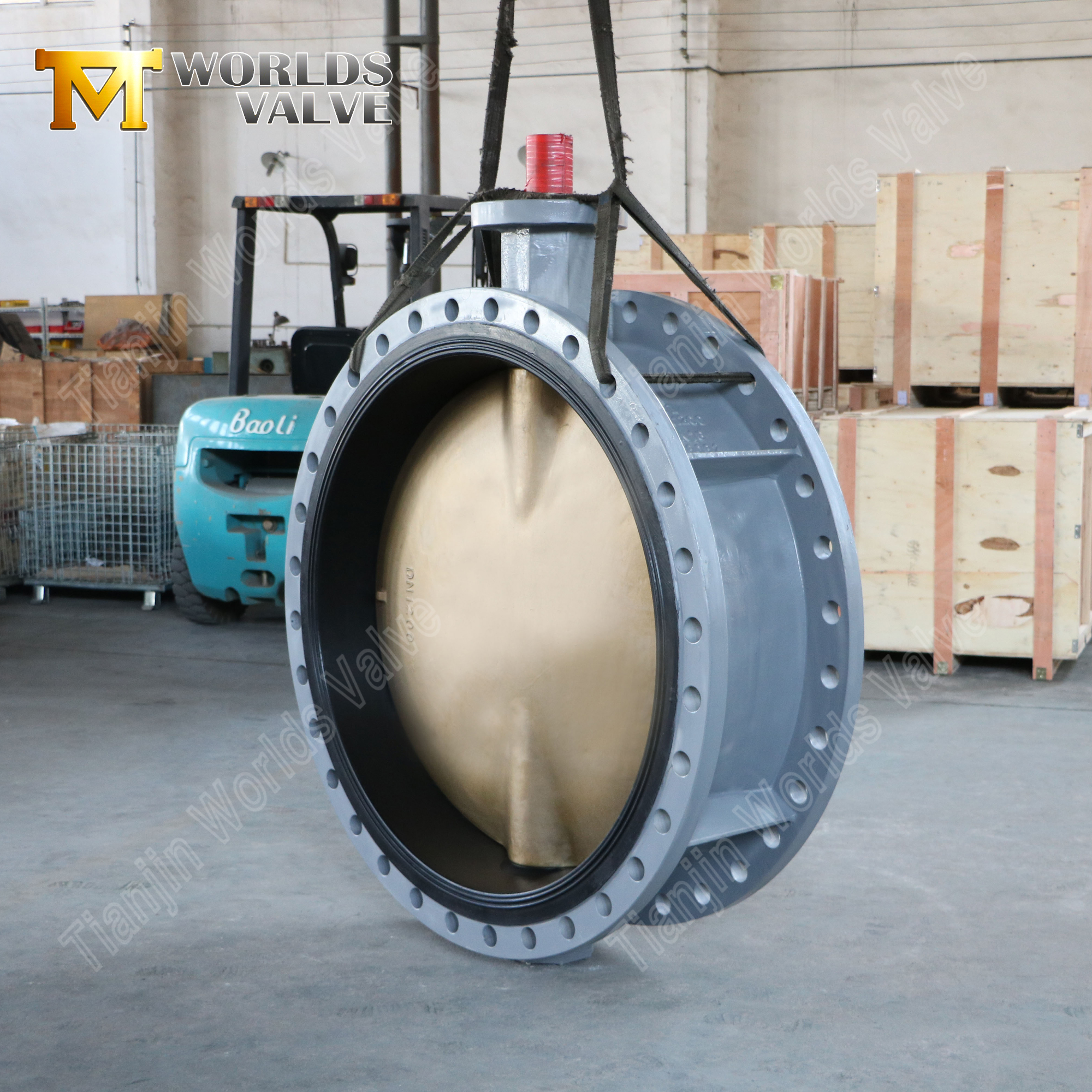

Aluminum Bronze Disc Double Flanged Butterfly Valve

As your trusted Chinese manufacturing partner, we offer the valve type of Aluminum Bronze Disc Double Flanged Butterfly Valve with consistent quality, competitive pricing, and the flexibility to meet your OEM specifications.

Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer

CBF02-TF01-Operation and Maintenance Manual DOWNLOAD

Key Features & Advantages:

1. Premium C95400 Aluminum Bronze Disc for Superior Corrosion Resistance

The standout feature of this valve is its high-performance disc material, specifically selected for aggressive media.

• Exceptional Seawater & Chemical Resistance: **C95400 Aluminum Bronze** (Nickel-Aluminum Bronze) offers outstanding resistance to corrosion, pitting, and erosion in seawater, brackish water, and various chemical environments—significantly outperforming standard stainless steels in marine applications.

• High Strength & Wear Resistance: This alloy provides excellent mechanical strength and resistance to galling and wear, ensuring long-term reliability even in high-velocity flow conditions.

• Non-Sparking & Biostatic Properties: C95400 is non-sparking, enhancing safety in potentially hazardous atmospheres, and its natural biostatic properties resist marine growth, reducing maintenance in seawater systems.

2. Massive DN1200 Size Engineered for Large-Diameter Flow Control

Built to handle the demands of major infrastructure and industrial projects.

• Designed for High-Volume Flow: With a **DN1200 (48-inch)** nominal diameter, this valve is engineered to efficiently manage large flow rates in water transmission mains, cooling water intakes, and other high-capacity systems.

• Reinforced Large-Diameter Construction: The valve body and disc are specifically designed with reinforced structures to maintain rigidity and sealing integrity at this large size under PN16 pressure.

• Optimized Gear Operation: The valve is equipped with a heavy-duty **worm gear operator** providing the high mechanical advantage required for smooth, effortless manual operation of this large-diameter valve.

3. Robust PN16 Ductile Iron Body for Strength & Durability

The foundation of this valve is built for resilience and long service life.

• High-Strength Material: The valve body is cast from **GGG40/500-7 Ductile Iron**, a material known for its exceptional tensile strength, good elongation, and impact resistance—far superior to gray iron.

• Secure Double Flanged Connection: The integral flanges on both sides enable a solid, gasketed bolted connection to the pipeline, providing superior mechanical strength, resistance to pipeline stress, and making it ideal for dead-end service.

• Epoxy-Coated for Added Protection: The ductile iron body is protected with a durable **epoxy coating** (standard), providing an additional barrier against corrosion and extending the valve's service life in buried or exposed installations.

4. Reliable OEM Manufacturing Partner from China

As a specialized OEM factory, we deliver consistent quality and strategic value for global partners.

• Focused Manufacturing Expertise: We control the entire production process from casting to final assembly. Our **ISO 9001 certified** quality management system ensures every DN1200 valve meets strict performance and dimensional standards, batch after batch.

• Cost-Effective Large-Diameter Solutions: Our manufacturing capabilities allow us to offer competitive pricing on large-diameter valves without compromising quality, helping you manage project costs effectively.

• Flexible OEM Customization: We adapt to your specific requirements, offering options for:

    1.Alternative seat materials (EPDM, NBR, Viton)

    2. Special coatings or paint finishes

    3.Actuator mounting preparation (electric or pneumatic)

    4.Custom tagging, packaging, and documentation

• Export-Ready Logistics: With extensive experience exporting to global markets, we provide reliable shipping, comprehensive documentation, and support for international certifications.

Standard:

Why Choose Tianjin Worlds Valve as Your OEM Partner?

• Specialized in Large-Diameter Valves: We possess the engineering expertise and manufacturing capacity to produce high-quality large-diameter valves (DN600 to DN2000+) that meet the rigorous demands of major infrastructure projects.

• Material Selection Expertise: Our knowledge of advanced materials like **C95400 Aluminum Bronze** ensures we can recommend and supply the optimal disc material for your specific media and environmental conditions.

• Global OEM Experience: We have a proven track record of supplying valves to partners in over 50 countries, understanding the importance of consistent quality, reliable lead times, and clear communication.

• Certified Quality Assurance: As an ISO 9001 certified manufacturer, we maintain strict quality controls from incoming material inspection to final pressure testing and documentation.

Typical Applications:

• Seawater Intake & Cooling Systems for power plants and desalination facilities

• Marine & Offshore Installations including shipbuilding and port infrastructure

• Municipal Water Transmission Mains requiring large-diameter isolation

• Industrial Process Water in chemical, petrochemical, and mining industries

• Wastewater Treatment Plants handling aggressive effluents

Conclusion:

Looking for a reliable, large-diameter butterfly valve for your next project? Contact Tianjin Worlds Valve Co., Ltd. today to discuss your specifications and receive a competitive OEM quotation.
