Flanged Y Type Strainer | WCB Carbon Steel | Industrial Pipeline Protection

Professional manufacturer of flanged Y type strainers in WCB carbon steel. Available in sizes DN15-DN600 with customizable stainless steel screens. ISO 9001 certified with CE, UKCA options. Ideal for oil, gas, water, and industrial applications. OEM/ODM services available.

Model:
GL01-TF01
Brand:
OEM | ODM | WDS

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction：

Key Features & Advantages:

1. Robust WCB Carbon Steel Construction

Built for strength and durability in demanding industrial environments.

High-Quality Material: The strainer body is cast from WCB (Weldable Cast Carbon Steel) , conforming to ASTM A216, offering excellent mechanical properties and weldability.
Pressure & Temperature Resistance: WCB carbon steel provides reliable performance across a wide range of pressures and temperatures, suitable for steam, oil, gas, and water services.
Corrosion Protection: Standard exterior coating protects against atmospheric corrosion, with optional epoxy or special coatings available for harsh environments.

2. Secure Flanged Connections for Easy Installation

Engineered for permanent, leak-proof pipeline integration.

Standard Flange Drilling: Flanged ends are manufactured to international standards including ANSI B16.5, EN 1092-1, or as specified, ensuring compatibility with existing pipeline systems.
Easy Maintenance Access: The flanged cover or threaded plug allows for quick removal of the filter screen without disturbing pipeline connections.
Bidirectional Flow Capability: Designed to accommodate flow in either direction, simplifying installation and reducing the risk of incorrect assembly.

3. Effective Filtration with Customizable Screen Options

Provides reliable protection tailored to your system requirements.

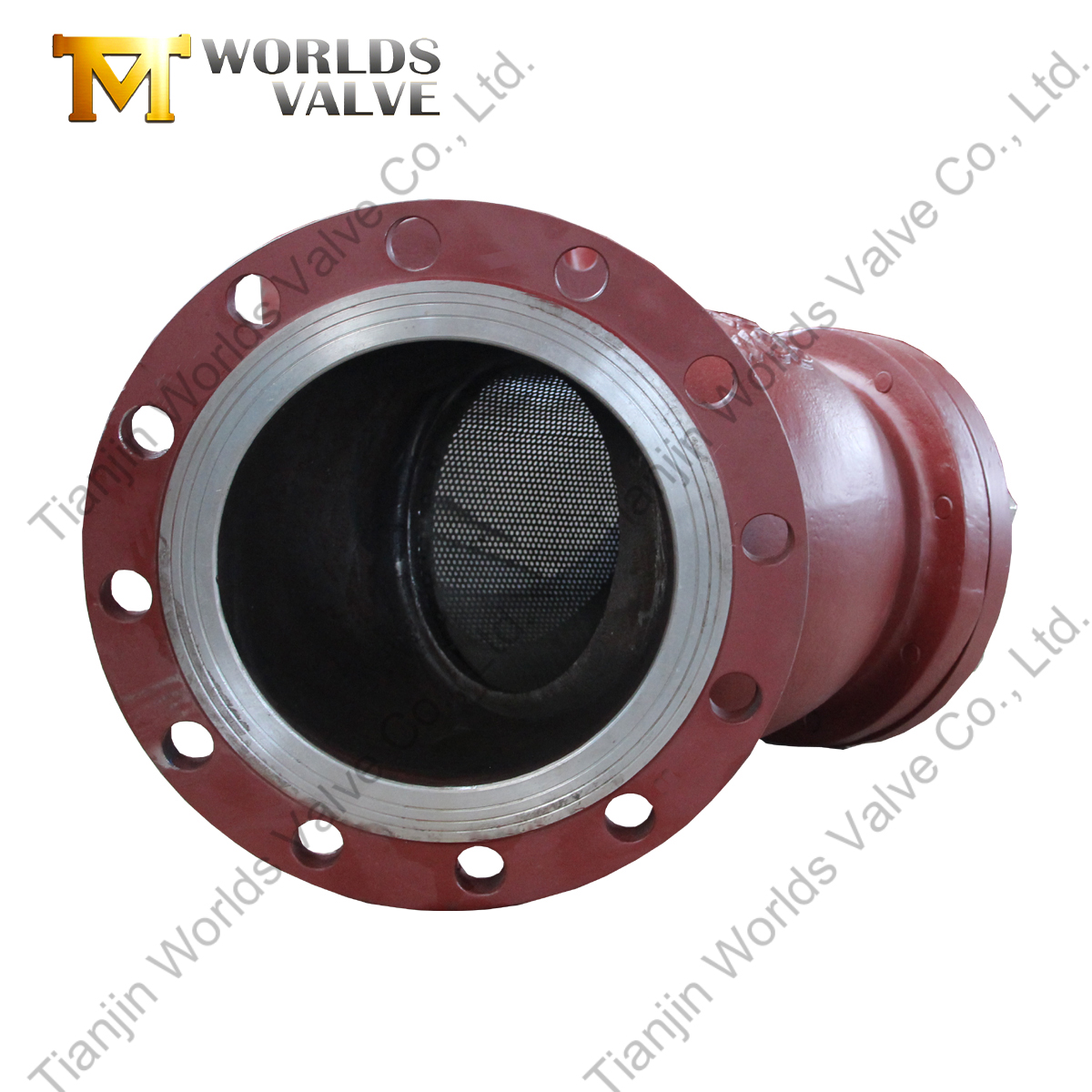

Perforated or Mesh Screens: Available with various perforation sizes or mesh grades to match specific debris removal needs.
Stainless Steel Screen Material: Standard screens are made from stainless steel for corrosion resistance and long service life.
Easy Cleaning & Maintenance: The screen can be easily removed, cleaned, and reinstalled, minimizing system downtime.

4. Versatile Industrial Application

Suitable for a wide range of piping systems and media types.

Wide Size Range: Available in sizes from DN15 to DN400 (1/2" to 16") to accommodate various pipeline diameters.
Multiple Pressure Ratings: Offered in Class 150, 300, or PN10/16/25/40 to match system pressure requirements.
Media Compatibility: Suitable for water, oil, gas, steam, and various industrial fluids within the material temperature limits.

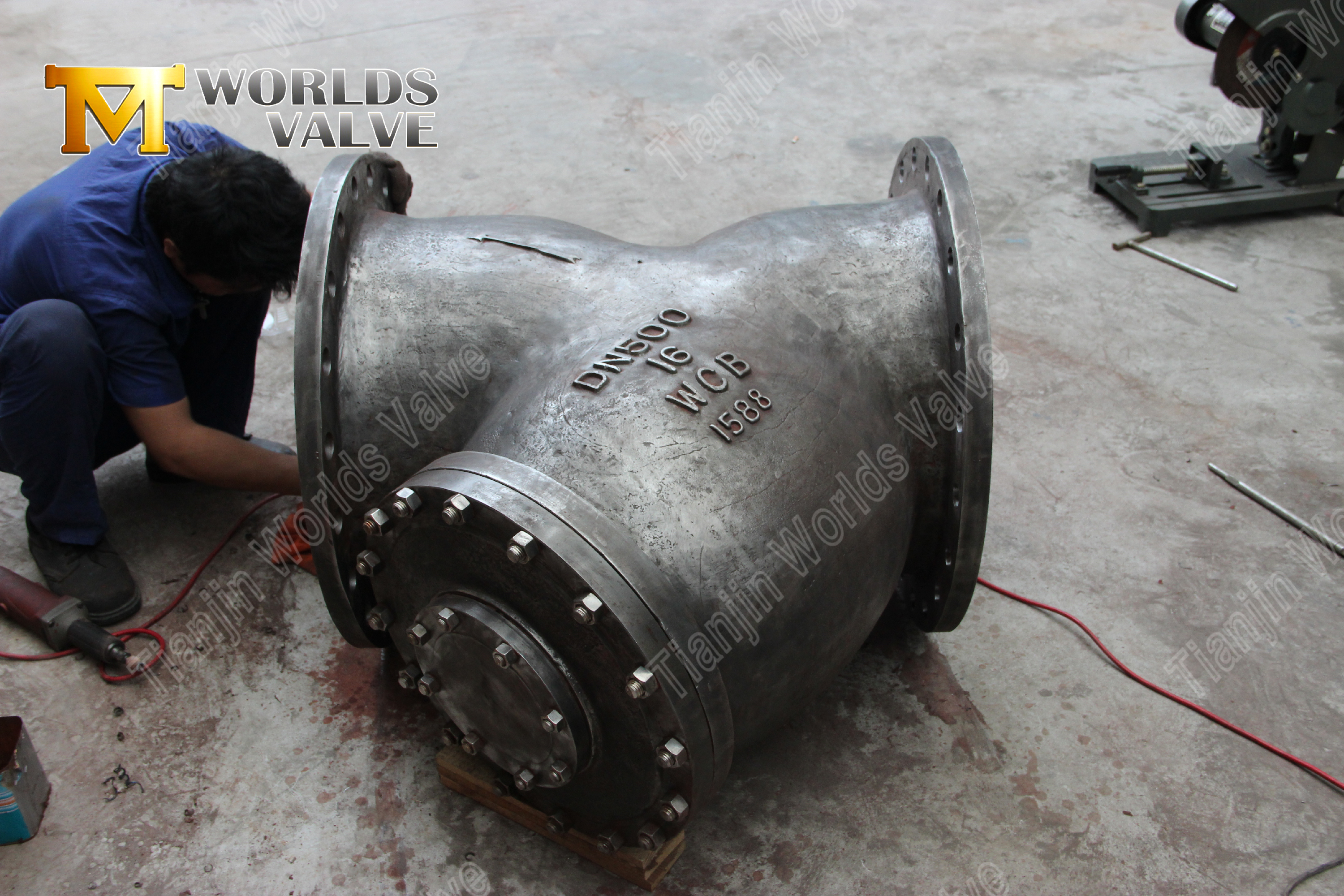

Flanged Y Type Strainer WCB Carbon Steel Industrial Pipeline Protection (9)

Standard:

Parameter	Specification
Model	Flanged Y Type Strainer(GL01-TF01)
Sizes	DN40-DN600
Pressure Rating	PN16
Testing	ISO5208 EN12266-1
Body	WCB
Applicable Media	Water, Oil, Gas, Steam, Industrial Fluids

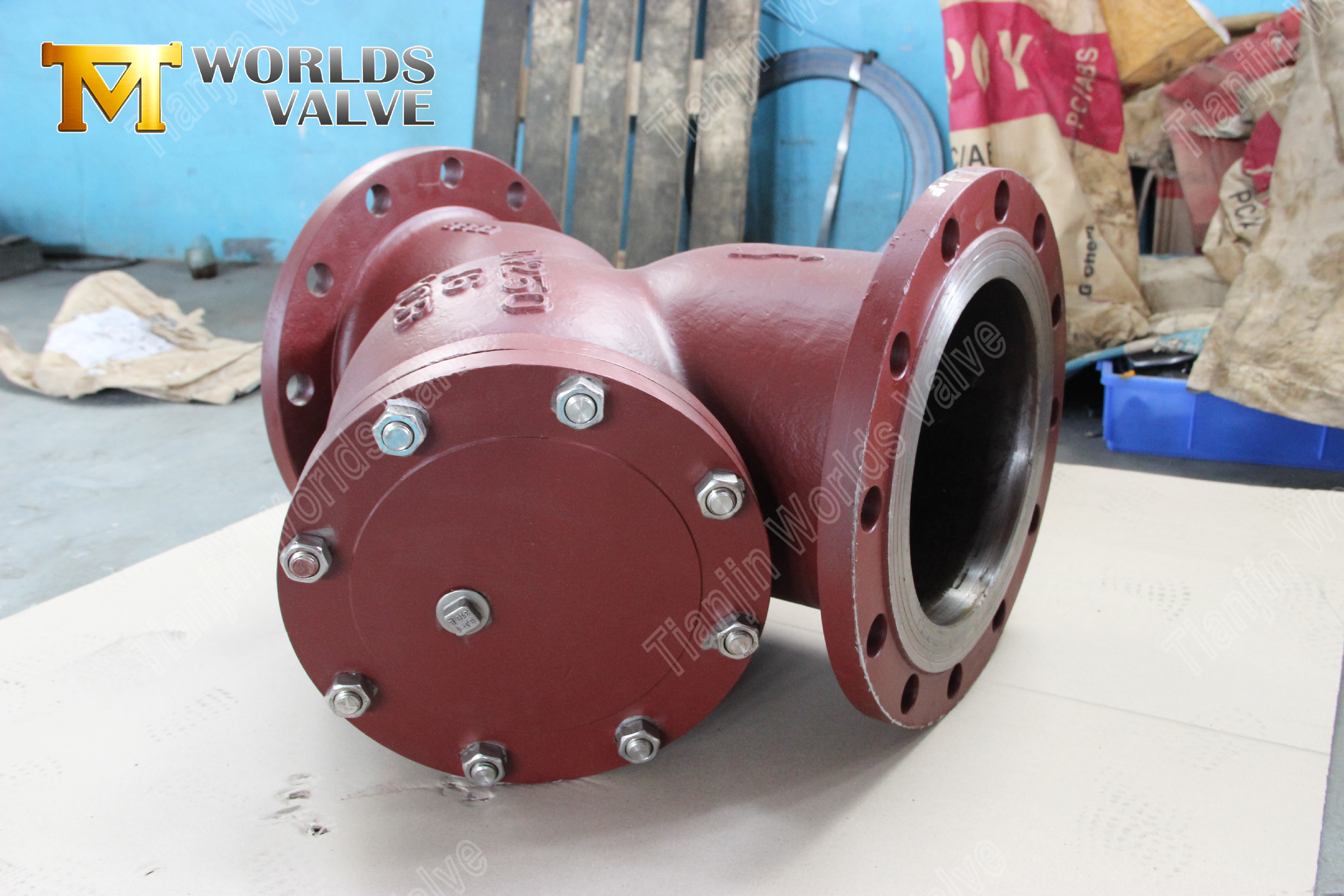

Flanged Y Type Strainer WCB Carbon Steel Industrial Pipeline Protection (8)

Why Choose Tianjin Worlds Valve as Your Strainer Supplier?

OEM/ODM Expertise: We specialize in manufacturing strainers to customer specifications, with flexible customization of size, pressure rating, screen type, and connections.
Certified Quality: Our ISO 9001 certified facility ensures consistent quality. Products can be supplied with CE, UKCA, and other certifications as required.
Material Traceability: Full material certification and testing documentation available upon request.
Global Export Experience: With exports to over 50 countries, we understand international project requirements and provide reliable logistics support.

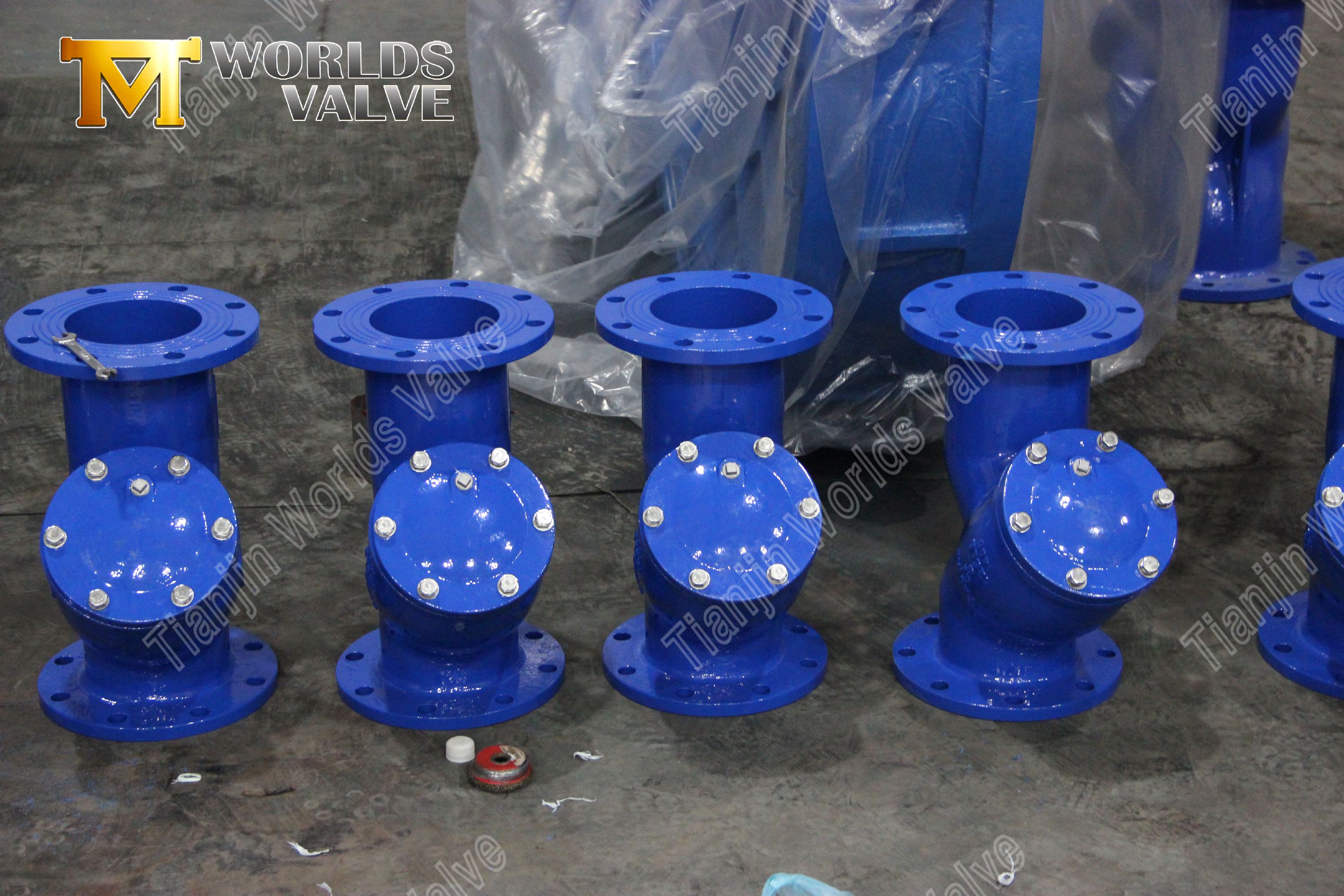

Flanged Y Type Strainer WCB Carbon Steel Industrial Pipeline Protection (7)

Typical Applications:

Oil & Gas Industry: Pipeline protection for pumps, compressors, and instrumentation
Chemical Processing: Filtration of process fluids to protect sensitive equipment
Power Generation: Steam and water line protection in boiler feed systems
Water Treatment: Removal of debris from raw water and treated water lines
HVAC Systems: Protection of chillers, pumps, and cooling towers
Industrial Manufacturing: General pipeline protection in various process applications

Conclusion:

For reliable pipeline protection and equipment safety, the Flanged Y Type Strainer from Tianjin Worlds Valve Co., Ltd. delivers exceptional performance and durability. Manufactured from high-quality WCB carbon steel with precision-machined flanged connections and customizable stainless steel screens, it provides effective filtration across a wide range of industrial applications.

Choose Tianjin Worlds Valve for your strainer requirements—where quality, customization, and customer satisfaction come first.

Contact us today for technical specifications, drawings, or a customized quotation for your specific application.

Flanged Y type strainer WCB carbon steel strainer Y shaped strainer Industrial pipeline strainer Flanged basket strainer Y strainer with flanged connection ASTM A216 WCB strainer OEM strainer manufacturer China Pipeline protection strainer Tianjin Worlds Valve
