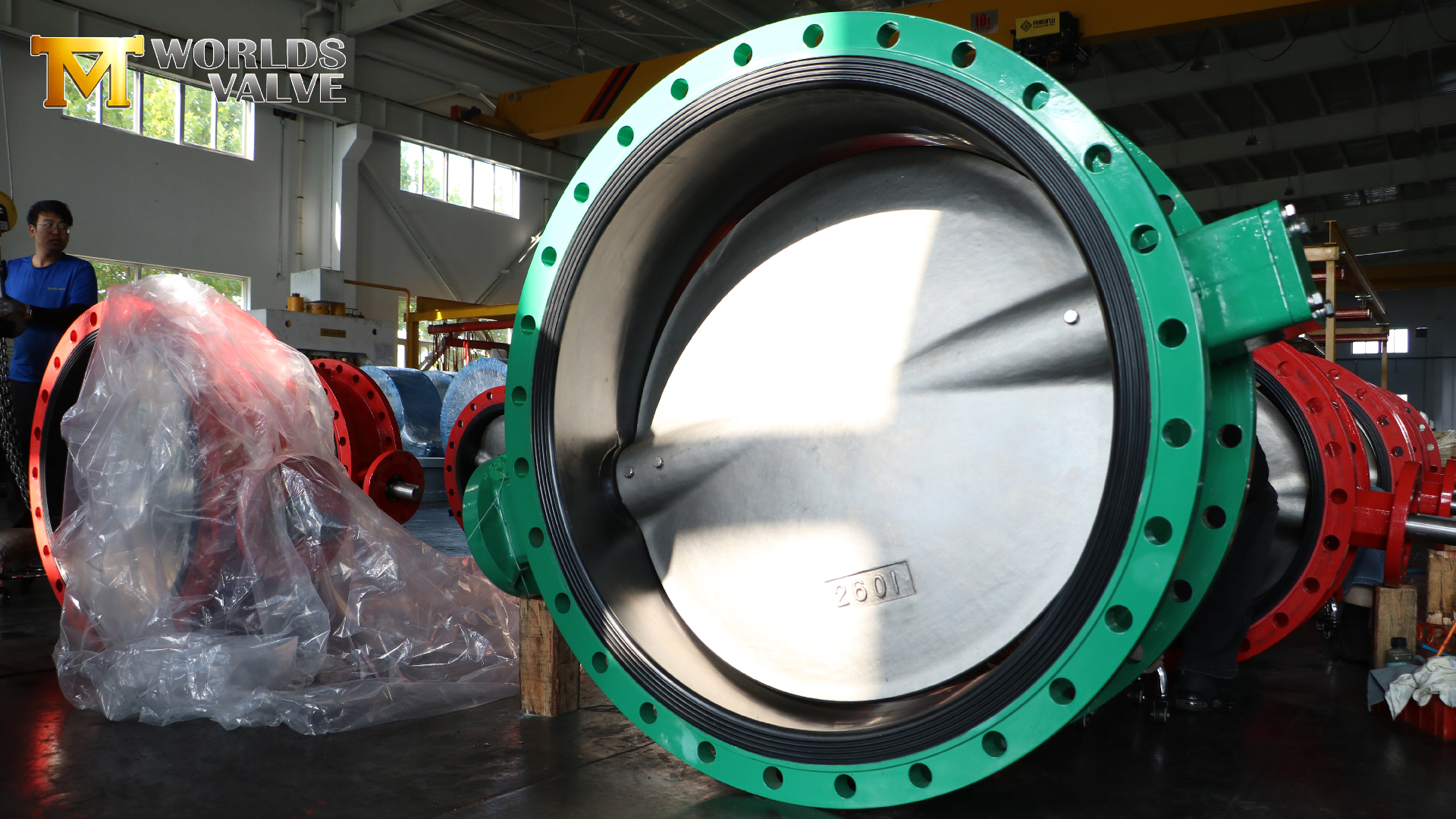

Butterfly valves are among the most reliable flow-control devices in industrial piping. Their simple quarter-turn design, compact footprint, and low cost make them a default choice for water, wastewater, HVAC, chemical, and general industrial service. But reliability does not mean invincibility. Over time, even the best butterfly valve will show signs of wear, and when something goes wrong, the symptoms are often similar regardless of the valve’s size, material, or application.
The challenge for maintenance engineers and plant operators is distinguishing between problems that can be fixed in the field and those that require valve replacement. This guide covers seven of the most common butterfly valve problems, their root causes, and practical solutions based on general industry experience.
External leakage at the flange is one of the most common complaints, especially after installation or maintenance. The valve itself may be perfectly fine — the issue is often in how it was installed.
Uneven bolt tightening, which distorts the valve body and prevents proper gasket compression
Misalignment between upstream and downstream pipe flanges
Deformed rubber seat caused by forcing the valve into an insufficient flange gap
Damaged or missing flange gaskets

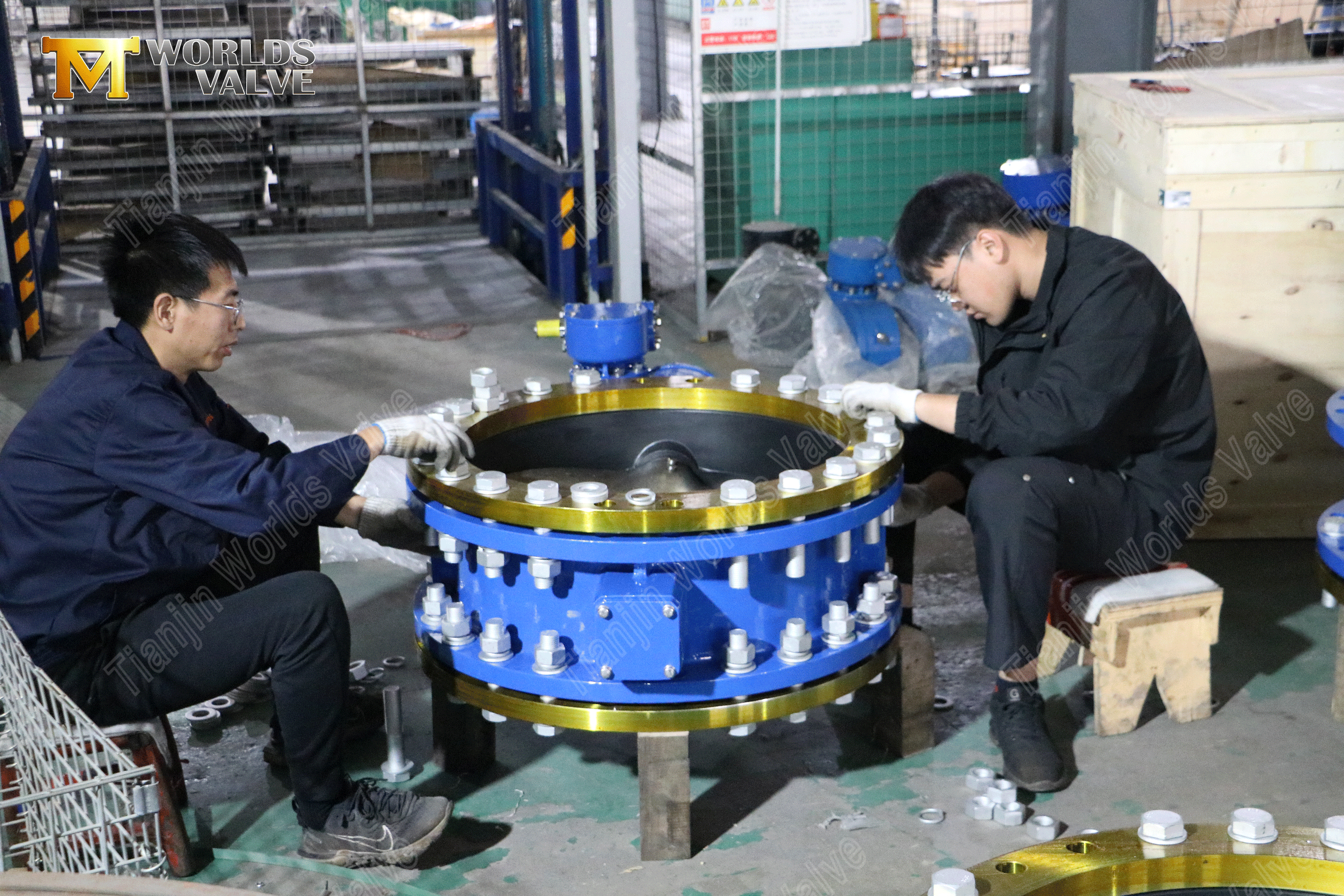

Tighten flange bolts gradually and evenly in a star pattern. Avoid impact wrenches, which can over-torque and crack the body.
Check pipe alignment before final tightening. The valve should center naturally without forcing.
Allow adequate space between pipe flanges before inserting the valve, then bring the flanges into contact with the body as bolts are tightened.
Inspect gaskets for damage and replace if necessary.
The key to preventing external leakage is patience during installation. Rushing the bolt-tightening sequence is a common cause of flange leaks.

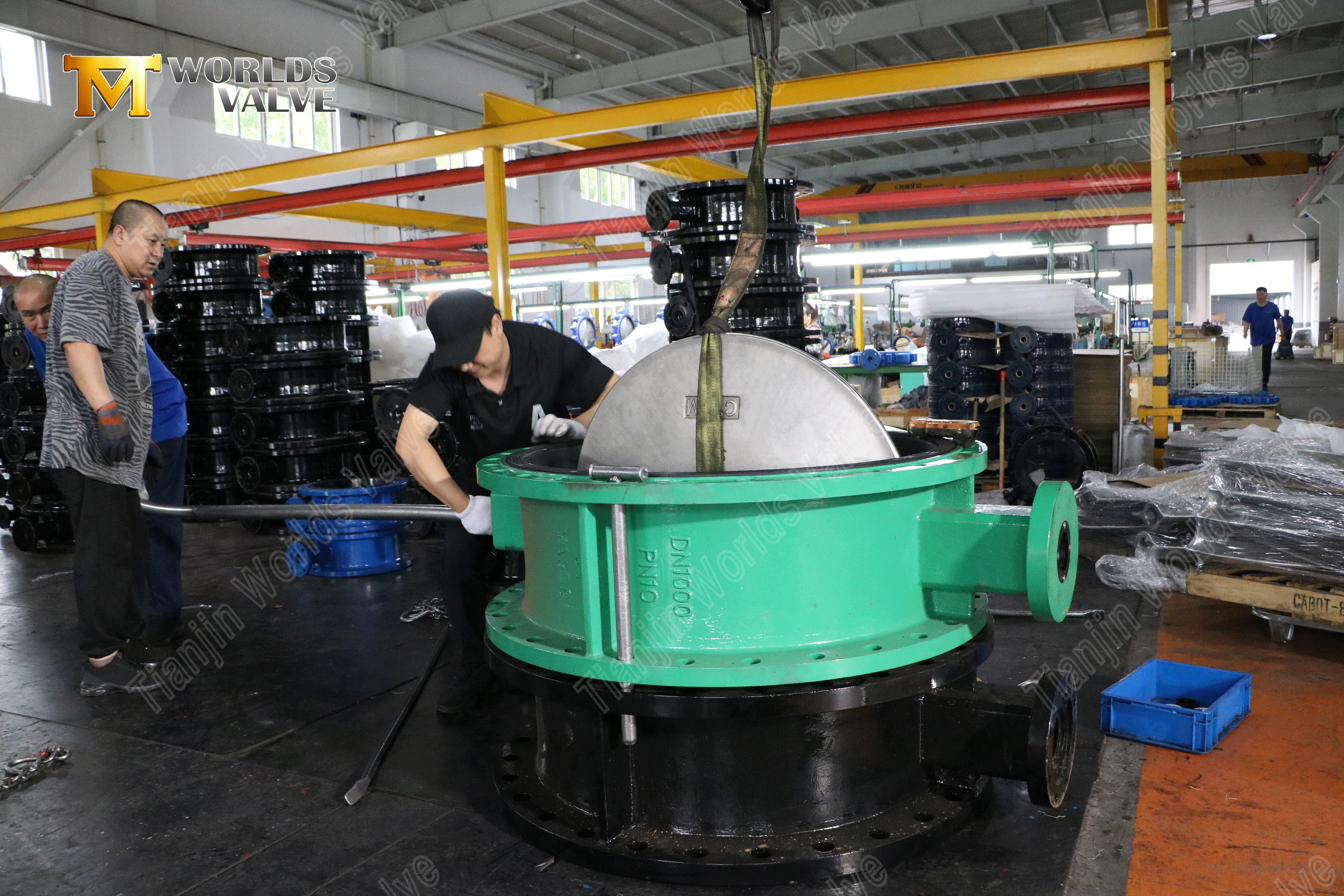

Internal leakage — sometimes called “passing” or “leak-by” — occurs when the valve fails to achieve a tight seal in the closed position. This is more serious than external leakage, as it can compromise process quality, cause cross-contamination, and in extreme cases, create safety hazards.
Foreign material trapped between the disc and seat
Seat deformation or permanent compression set
Disc not reaching the fully closed position due to actuator or gearbox limit adjustment
Worn or damaged seat surface
Corrosion or pitting on the disc sealing edge
Cycle the valve open and closed several times to flush out debris.
Adjust the actuator or gearbox limit stops so the disc seats correctly.
Inspect the seat and disc sealing surfaces for wear, cracking, or embedded particles.
If the seat is replaceable, swap it out. If it is bonded or vulcanized, the valve may need to be replaced.
Internal leakage often signals a mismatch between the seat material and the process media. EPDM seats, for example, degrade in oil service, while NBR seats swell in ketones and esters. Selecting the right seat compound for the media is essential for long-term sealing performance.
Stem leakage, sometimes called gland packing leakage, appears as a drip or trickle from the area where the stem exits the valve body. It is one of the few butterfly valve problems that can often be fixed without removing the valve from the pipeline.
Normal wear of the packing material over time
Loose gland nut
Incorrect packing installation
Excessive stem movement or vibration
Tighten the gland nut in small increments until the leakage stops. Do not over-tighten, as this increases operating torque and accelerates packing wear.
If tightening does not stop the leak, replace the packing. On valves with adjustable packing glands, this can sometimes be done in-line without removing the valve.
On butterfly valves without stem packing, stem leakage typically requires valve removal and repair or replacement.
Modern packing systems can offer advantages over traditional packing, including field adjustment and easier servicing. The exact options depend on the valve design.
A valve that won’t reach its fully open or fully closed position is a sign of a mechanical or adjustment issue. This problem can range from a minor inconvenience to a serious operational risk.
Actuator or gearbox limit stops incorrectly set
Obstruction in the flow path — debris, scale, or foreign objects
Stem deformation or corrosion
Disc-to-seat interference caused by thermal expansion or swelling
Gearbox or actuator malfunction
Adjust the limit stops to allow full disc travel.
Inspect the flow path for obstructions and clean if necessary.
Check the stem for straightness and freedom of movement.
Verify that the actuator has sufficient torque for the valve size and pressure differential.
For large-diameter valves, inadequate actuator torque is a frequent cause of incomplete operation. Actuator sizing must account for the valve size, seat material, and operating pressure differential.
High operating torque makes the valve difficult to operate manually, overloads actuators, and can lead to premature failure of stems and bearings. It is often a gradual problem — the valve becomes harder to turn over months or years — which makes it easy to ignore until it becomes critical.
Seat swelling or compression set
Stem corrosion or galling
Bearing wear or contamination
Media buildup on the disc or seat surface
Incorrect seat material for the media
Over-tightened gland packing
Check the seat material compatibility with the process media.
Inspect and lubricate the stem and bearings.
Clean the disc and seat surfaces.
Adjust gland packing tension.
Consider upgrading to a PTFE-seated or metal-seated design if the current seat is swelling.
Monitoring torque trends over time can be an effective preventive strategy. A gradual increase in operating torque is an early warning sign of developing problems.
Corrosion of the valve body is a slow-developing problem that can ultimately lead to structural failure. In water and wastewater service, external corrosion is often caused by inadequate coating or humid environments. Internal corrosion occurs when the body material is incompatible with the process media.
Damaged or degraded epoxy coating
Incorrect body material for the media
Galvanic corrosion between dissimilar metals
Erosion-corrosion from high-velocity flow
Inspect the coating periodically and repair minor damage before it spreads.
Select the appropriate body material: ductile iron with epoxy coating for general water service; stainless steel, duplex, or exotic alloys for corrosive media.
Avoid mixing dissimilar metals in the same piping system without proper isolation.
For aggressive chemical service, a PTFE-lined or PFA-lined butterfly valve may be necessary to isolate the metal body from the media entirely.
Actuator and gearbox failures can prevent the valve from operating at all. Pneumatic actuators may develop air leaks, electric actuators may fail due to motor burnout or control board issues, and gearboxes may jam or strip gears.
Air leaks in pneumatic actuator seals or fittings
Motor overload or control signal failure in electric actuators
Gear wear or lubrication failure in manual gearboxes
Water ingress into actuator housing
Incorrect actuator sizing for the valve torque requirements
Check air supply pressure and inspect pneumatic fittings for leaks.
Verify electrical connections and control signals.
Inspect gearbox for smooth operation and adequate lubrication.
Ensure the actuator is correctly sized for the valve and operating conditions.
For critical applications, consider using an actuator with a manual override or a fail-safe spring-return design to maintain operability during power or air supply interruptions.
The most effective troubleshooting strategy is prevention. A simple maintenance schedule can reduce the frequency and severity of butterfly valve problems.
Recommended maintenance schedule:
Monthly: Visual inspection for leaks, corrosion, or damage
Quarterly: Cycle the valve open and closed to verify smooth operation
Semi-annually: Check gland packing and tighten if necessary
Annually: Inspect seat and disc for wear; check bolt tightness
As needed: Clean the valve interior, replace worn seats, lubricate stems and bearings
Documenting inspections and repairs creates a historical record that helps identify recurring issues and supports maintenance planning.
Not every butterfly valve problem warrants a repair. Here is a simple decision guide:
The problem is limited to the seat (if replaceable)
Gland packing leakage can be stopped by tightening
Actuator or gearbox components can be replaced individually
Valve body and disc are structurally sound
The seat is bonded or vulcanized and has failed
The body is cracked or severely corroded
The disc or stem is deformed or severely worn
The cost of repair approaches or exceeds the cost of replacement
