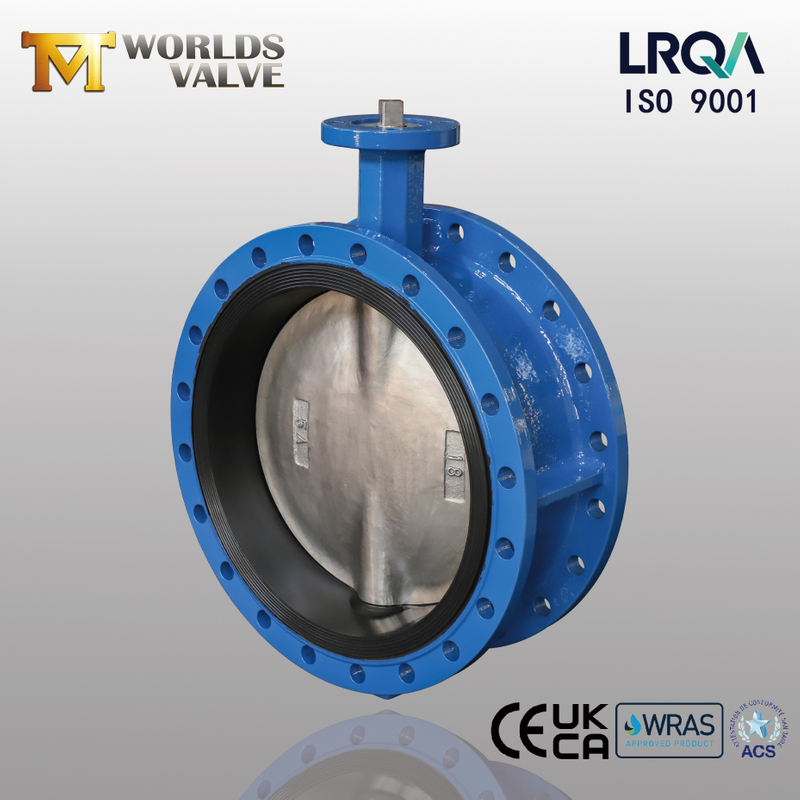

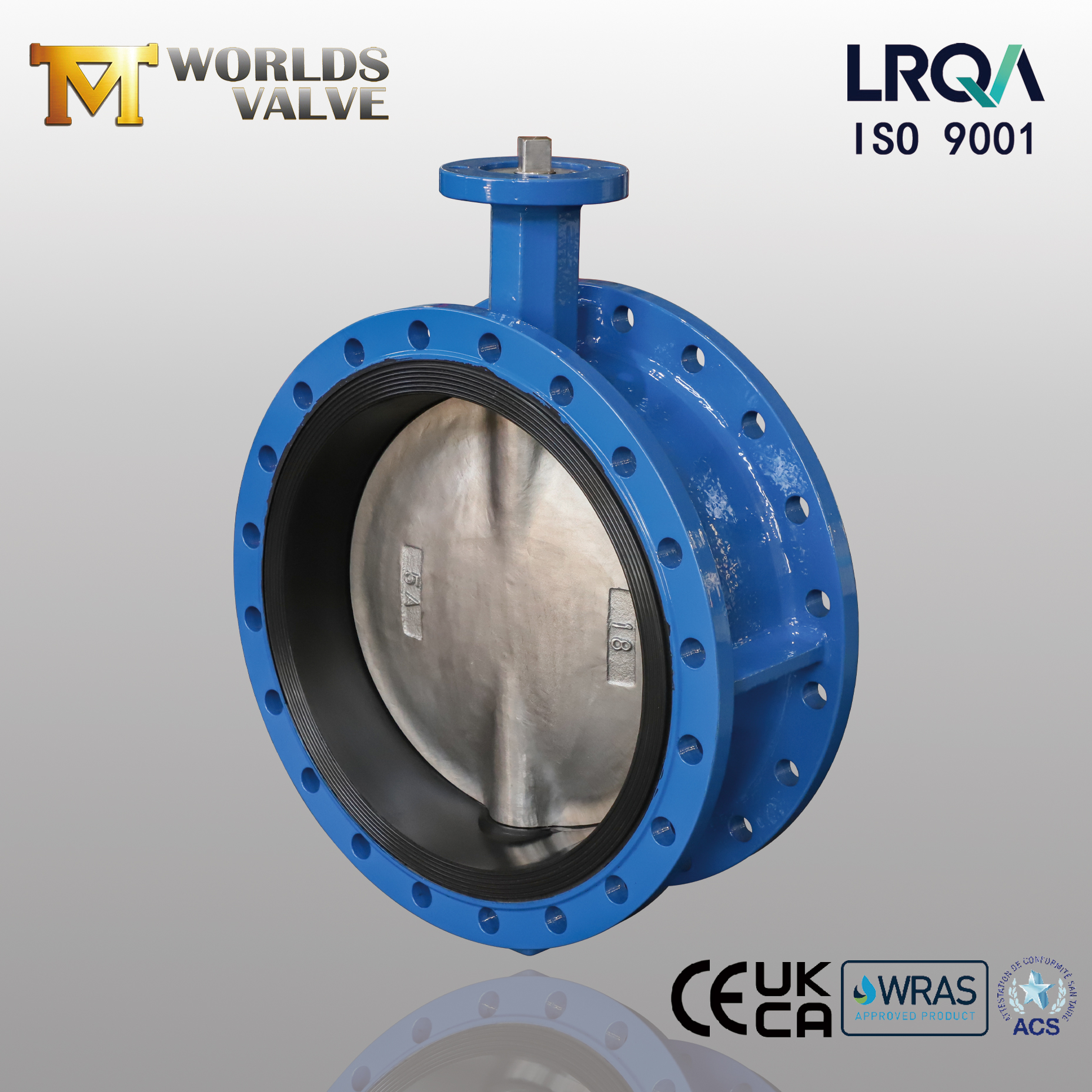

18" Double Flanged Butterfly Valve with Super Duplex Disc and Vulcanized Rubber Seat | ISO 5211 Top Flange
Tianjin Worlds Valve Co., Ltd. – Your Reliable Source for Durable, Cost-Effective Flow Control
CBF02-TF01-Operation and Maintenance Manual DOWNLOAD
All major parameters of this valve are customizable to meet specific project requirements:
Body material: Ductile iron (GGG40) is offered as a standard option, with an epoxy coating applied for external corrosion protection. The coating color is customer-selectable – any RAL or custom color can be specified. Alternative body materials such as carbon steel (WCB), stainless steel (CF8, CF8M), or other alloys are also available upon request.
Disc material: Super duplex (5A) as described; other disc materials can be supplied if specified.
Seat elastomer: EPDM, NBR, or Viton – customer choice.
Pressure rating: No fixed default – each order is manufactured to the required rating, such as PN10, PN16, PN25, Class 150, Class 300, or others.
Flange standard: Conforms to customer specifications (e.g., EN 1092, ANSI B16.5, AS2129, etc.).
Size range: 18 inches (DN450) as described; other sizes from DN50 up to DN2000 are also available.
Double flanged body: Provides a rigid, bolted connection on both pipeline sides, offering excellent mechanical stability for permanent installations, high-vibration lines, and dead-end service.
Vulcanized rubber seat: The elastomer is permanently bonded to the body during vulcanization, creating a leak-proof seal without removable components.

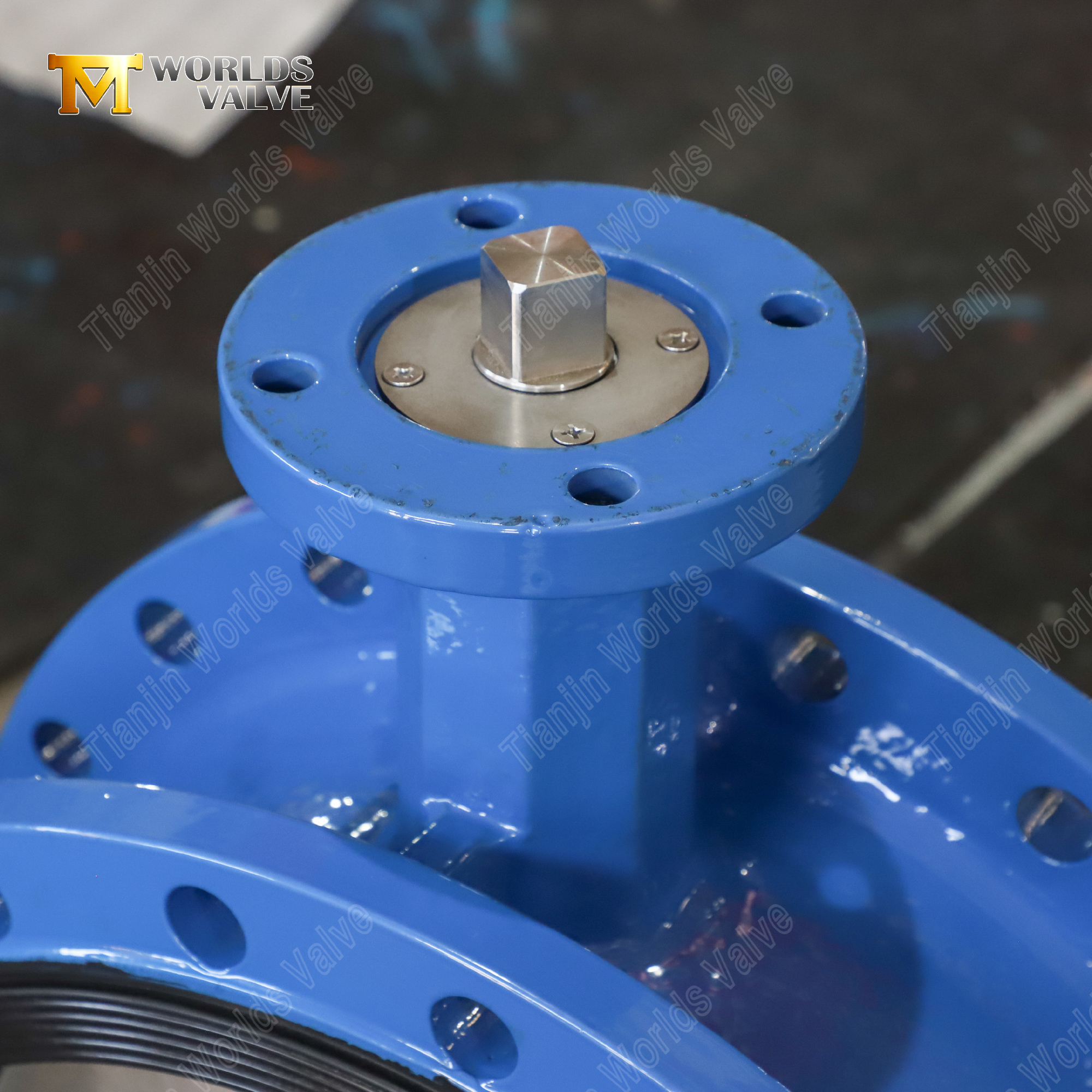

ISO 5211 top flange: The valve's upper flange is machined to ISO 5211 standards, allowing direct mounting of electric, pneumatic, or hydraulic actuators without custom adapters, simplifying automation integration.
Parameter | Available Options |
Valve type | Double flanged butterfly valve（CBF02-TF01） |
Nominal size | 18 inches (DN450) – other sizes available |

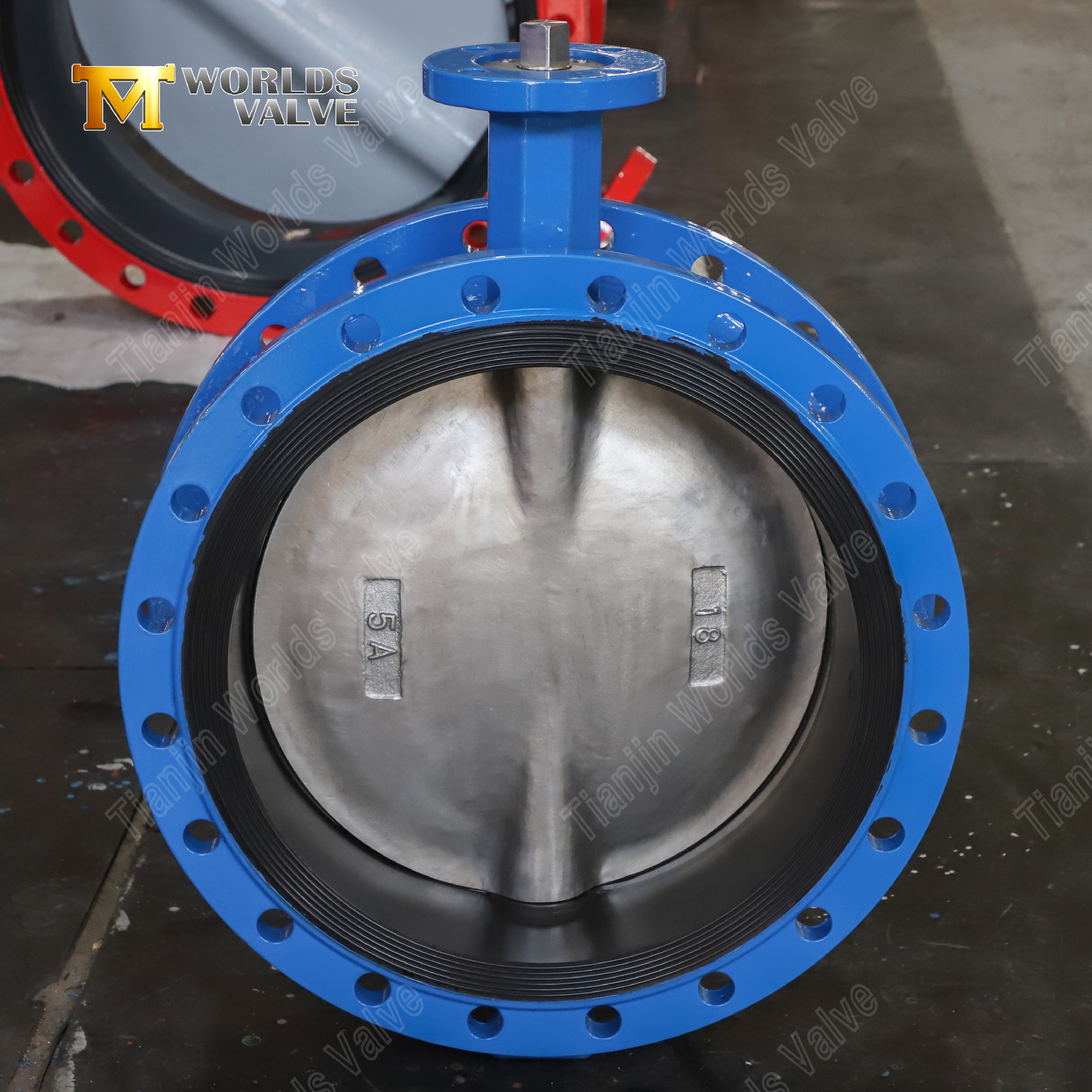

Disc material | Super duplex stainless steel (5A) |
Seat type | Vulcanized rubber seat (non‑replaceable) |
Seat material | EPDM, NBR, or Viton (customer selects) |
Body material | Ductile iron (with epoxy coating); WCB, CF8, CF8M also available |
Epoxy coating color | Customer-selectable (any RAL or custom color) |
Pressure rating | Custom (PN10, PN16, Class 150, etc.) |
Flange standard | Custom (EN 1092, ANSI B16.5, etc.) |
Top flange | ISO 5211(customer selects) |
Temperature range | Depends on chosen seat material |
Typical media | Seawater, brine, chemicals, oil, water, etc. |
Because the valve is equipped with a vulcanized rubber seat, the elastomer is permanently bonded to the body and cannot be replaced in the field. For applications requiring a replaceable seat design, please contact our technical team to discuss alternative valve configurations.
1. We manufacture valves strictly according to customer specifications, while also providing professional recommendations on material selection and installation to ensure optimal performance.
2. Our experience with super duplex (5A) and other high-grade alloys ensures proper material application for severe environments.
3. Full documentation, including material certificates and test reports, is provided with every order.
4. Our ISO 9001‑certified facility supports global export, with certifications such as CE, UKCA, WRAS, and ACS available upon request.
We invite you to contact us for a competitive quotation or to arrange a visit to our factory. Our team is ready to discuss your project requirements, offer technical support, and demonstrate our manufacturing capabilities firsthand. dekai@worldsvalve.com
