Understanding the inner workings of a check valve is fundamental to ensuring the safety, efficiency, and longevity of any fluid piping system. These automatic guardians of flow direction are critical for preventing costly backflow incidents. At Tianjin Worlds Valve Co., Ltd., our expertise lies in engineering precision check valves, with a specialized focus on the highly efficient Dual Plate Wafer Check Valve. This guide will explain the core operating principle, explore common valve types with an emphasis on our specialty, and outline key selection criteria to help you secure your system.
At its core, a check valve is a self-actuating, automatic device designed to permit fluid (liquid or gas) flow in one direction only. Its operation relies on fluid dynamics, requiring no external control or manual intervention.
Opening: When the upstream pressure exceeds the downstream pressure plus the valve's internal resistance (such as spring force), the flow forces the valve's internal mechanism (disc, ball, or plates) to open.
Flow Maintenance: The valve remains open as long as the forward flow is sufficient to keep it actuated.
Closing & Prevention: If the flow decreases, stops, or attempts to reverse, the pressure differential changes. The valve's internal mechanism—often assisted by gravity, a spring, or backflow pressure—automatically and swiftly returns to its seated position, creating a seal that blocks reverse flow.
This simple yet fail-safe mechanism is crucial for protecting pumps, compressors, and other equipment from damage, preventing media mixing (contamination), and maintaining system pressure integrity.
While several designs exist, each suits specific pressure, flow, and installation conditions. Here’s an overview, highlighting our area of specialization.
Swing Check Valve: Features a hinged disc that swings open on a pivot. It offers low flow resistance but requires sufficient space and may close relatively slowly, potentially allowing minor reverse flow. Best for lower-velocity applications.
Ball Check Valve: Uses a spherical ball that lifts off its seat during forward flow. It provides a good seal and is suitable for thicker fluids but can be prone to wear with high-frequency cycling.
Piston Check Valve: Employs a cylindrical piston that moves within a guide. Excellent for high-pressure, pulsating flows but can be bulky and cause significant pressure drop.
Lift Check Valve: Similar to a globe valve, a disc lifts vertically off the seat. It provides a tight seal but creates a high-pressure drop due to its flow path.

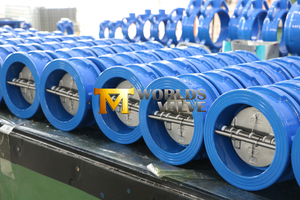

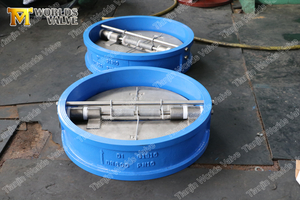

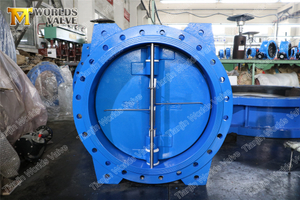

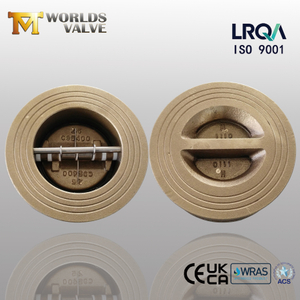

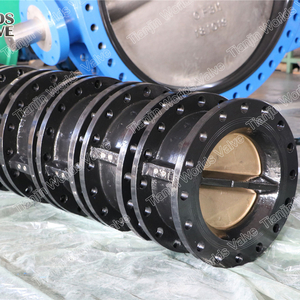

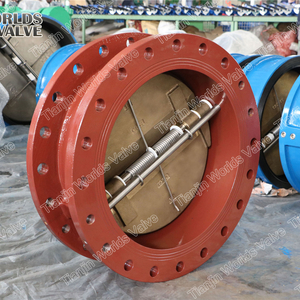

As a focused manufacturer, Worlds Valve excels in producing advanced Dual Plate Wafer Check Valves. This modern design incorporates two spring-loaded, hinged plates (discs) mounted on a central pin.
How It Works: Under forward flow, the plates independently swing open. The torsional springs ensure immediate closure the moment flow diminishes or reverses, resulting in extremely fast reaction times.
Key Advantages: This design is compact, lightweight, and installs directly between pipe flanges, saving significant space and weight compared to traditional types. It minimizes water hammer, offers a low-pressure drop, and its dual-plate mechanism provides excellent sealing reliability. It's our premier solution for a wide range of applications from water and HVAC to chemical and hydrocarbon services.
Choosing the correct valve is vital for optimal performance. Consider these factors, and leverage our engineering support for guidance:
1. Application & Media: Identify the fluid type (water, oil, chemical, gas), its temperature, viscosity, and any corrosive properties.
2. Pressure & Flow Conditions: Determine the operating and maximum pressure (PSI/Bar), as well as the flow velocity. Valves must be rated for your system's demands.
3. Installation Requirements: Consider pipe size, orientation (horizontal or vertical), and available space. The wafer design of our specialty valves is ideal for tight spaces.
4. Material Compatibility: Valve body and seal materials (like Ductile Iron, Stainless Steel, EPDM, NBR) must be compatible with the media to ensure longevity.
5. Certification Needs: Ensure the valve meets required industry standards for your region and application.
Selecting Tianjin Worlds Valve Co., Ltd. means investing in reliability backed by global standards and deep expertise.
Focused Manufacturing Excellence: We dedicate our production to perfecting the Dual Plate Wafer Check Valve, ensuring unparalleled quality and performance in this category.
Internationally Certified Quality: Our manufacturing processes are governed by an ISO9001-certified quality management system. Our products carry recognized certifications such as CE, UKCA, ACS, and WRAS, guaranteeing compliance and safety.
Customization & OEM/ODM Support: We understand that standard solutions don't always fit. We offer extensive customization options and support OEM/ODM projects, tailoring dimensions, materials, pressures, and seals to your exact specifications.
Proven Global Reliability: With valves serving clients in **over 50 countries**, we have a proven track record of providing durable solutions for demanding environments across water treatment, oil & gas, chemical processing, and HVAC industries.
Expert Technical Support: Our team provides knowledgeable guidance—from selection and customization to installation support—ensuring you get the right valve for your system.
Check valves are indispensable for safe and efficient system operation. Understanding their mechanics and selecting the appropriate type—such as the efficient Dual Plate Wafer Check Valve—is key to preventing backflow and protecting your assets.
As a specialist manufacturer committed to quality and customization, Worlds Valve is your trusted partner for robust and reliable check valve solutions. We combine engineering precision with international certifications to deliver products that perform where it matters most.
Contact us today to discuss your application requirements, request detailed technical information, or obtain a competitive quotation for your project.
