In any industrial pipeline, maintaining strict unidirectional flow is not just a matter of efficiency—it's a fundamental requirement for system safety, equipment protection, and operational continuity. Pipeline check valves serve as the critical, automatic guardians that enforce this principle, preventing costly and dangerous backflow events. This article explains the vital role of check valves, how they protect and enhance pipeline systems, and provides a clear framework for selecting and maintaining the correct valve for your specific application.
A pipeline check valve is a self-actuating mechanical device designed to allow fluid (liquid or gas) to flow freely in one direction while automatically preventing reverse flow (backflow). Unlike manually operated valves, it requires no external control, functioning solely based on the differential pressure created by the flow itself.
Basic Operation: When forward flow pressure exceeds the downstream pressure, the valve's internal mechanism (a disc, ball, or piston) opens. If the flow diminishes, stops, or attempts to reverse, this mechanism swiftly closes, forming a seal against the valve seat.
Key Purpose: Its primary function is backflow prevention, which safeguards pumps, compressors, and other downstream equipment from damage, prevents media mixing (contamination), and maintains system pressure integrity.
Common Designs: Include Swing, Ball, Piston, Lift, and Dual Plate Wafer check valves, each optimized for different pressure, flow, and installation conditions.
Backflow is a primary cause of pipeline system inefficiency and failure. Check valves act as a first line of defense against:
Equipment Damage: Reverse flow can cause pumps to run backwards, damaging impellers and seals. It can also lead to water hammer—destructive pressure surges that can rupture pipes and fittings.
Process Contamination: In systems handling different media (e.g., clean vs. waste water, or different chemicals), backflow can lead to cross-contamination, compromising product quality or creating safety hazards.
System Downtime & Costly Repairs: The damage from unchecked backflow often results in unplanned shutdowns, expensive component replacements, and cleanup operations.
By ensuring flow moves only in the intended direction, check valves directly contribute to system reliability, safety, and lower total cost of ownership.
Beyond protection, a properly specified check valve actively contributes to operational efficiency:
Maintaining Steady Flow & Pressure: By eliminating flow reversals, check valves help stabilize system pressure and flow rates, leading to more consistent process performance.
Reducing Energy Consumption: They prevent the loss of pumped media backward through the system, which wastes energy. Protecting pumps from reverse rotation also improves their efficiency and lifespan.
Minimizing Pressure Drop: High-quality, modern check valve designs (like our Dual Plate Wafer Check Valves at Worlds Valve) are engineered for streamlined flow paths, creating minimal resistance and pressure loss when open.
Selecting the optimal valve is crucial. Consider these four pillars:
1. Application & Media:
Fluid Type: Water, oil, chemical, gas, slurry?
Properties: Temperature, viscosity, corrosiveness, cleanliness (presence of solids).
2. Performance Parameters:
Pressure Rating: Valve must withstand maximum system operating pressure (PSI/Bar).
Flow Requirements: Required flow rate (Cv/Kv value) and velocity.
Required Seal Tightness: Is bubble-tight shutoff needed, or is some leakage acceptable?
3. Valve Design & Material:
Type Selection: Swing (general service), Ball (high-flow), Piston (high-pressure/pulsing), Dual Plate Wafer (compact, fast-closing, low-pressure drop).
Material Compatibility: Body (cast iron, ductile iron, carbon steel, stainless steel), Trim, and Seal materials (EPDM, NBR, Viton®, PTFE) must resist corrosion and wear from the media.
4. Installation & Maintenance:
Connection Type: Wafer (between flanges), Lug (end-of-line service), Flanged (for higher pressure/robust connection).
Orientation: Can it be installed horizontally, vertically, or at an angle? (Follow manufacturer guidelines).
Accessibility: Is space available for maintenance and inspection?
Ensure proper pipeline alignment to avoid stress on the valve body.
Follow recommended upstream/downstream straight-run pipe lengths for optimal disc/plate operation and to minimize turbulence.
Install in the correct orientation as specified (arrow on valve body indicates flow direction).
Regular Inspection: Periodically check for external leaks, unusual noises, or visible corrosion.
Functional Testing: In systems with intermittent flow, ensure the valve opens and closes freely and isn't stuck open or closed by debris.
Preventive Strategy: For critical applications, consider a scheduled inspection and parts replacement program based on operating hours or cycles.

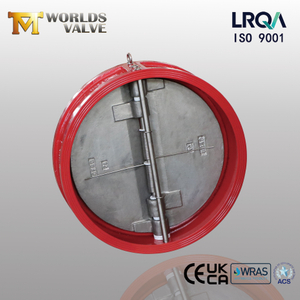

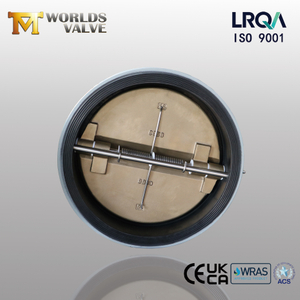

At Tianjin Worlds Valve Co., Ltd., we understand that a check valve is a vital investment in your system's health. We specialize in providing high-performance solutions, particularly our efficient Dual Plate Wafer Check Valves, which are ideal for a wide range of pipeline applications due to their:
Fast, Reliable Closure to prevent water hammer.
Compact, Lightweight Design for easy installation.
Low Pressure Drop for energy-efficient operation.
Our valves are manufactured under an ISO9001-certified quality management system and are designed to meet international standards. We support customization (OEM/ODM) to ensure the perfect fit for your unique system requirements and offer reliable support to a global clientele across water, oil & gas, chemical, and industrial sectors.
A pipeline check valve is far more than a simple component; it is an essential safeguard for your capital equipment and process integrity. By understanding its function, carefully selecting the right design for your needs, and following proper maintenance practices, you can ensure decades of reliable, efficient, and safe operation.
For robust, certified check valve solutions backed by technical expertise and global experience, contact Worlds Valve today. Let us help you specify the optimal valve to protect your pipeline investment.
