High Sealing performance Aluminum Bronze Dual Plate Check Valve

Tianjin Worlds Valve Co., Ltd. specializes in engineering precision-engineered dual plate check valves designed for zero-leakage security in critical fluid systems. Our Aluminum Bronze Dual Plate Check Valve combines superior corrosion resistance with unmatched sealing integrity, making it ideal for seawater, chemical, and high-temperature applications.

Model:
BFHV01-TA01
Brand:
OEM

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Features:

Crafted from aluminum bronze alloy (C95400/C95800), the valve body and plates withstand aggressive media, saltwater corrosion, and cavitation. The dual-disc design ensures rapid closure, eliminating water hammer and preventing dangerous backflow. Unique nitrile rubber (NBR) or EPDM seals bonded to aluminum bronze plates deliver Class VI sealing (per EN 12266-1), exceeding industry standards for leak-tight performance.

Key Advantages:

1. Zero-Leakage Guarantee: Dual-sealing surfaces + spring-assisted closure achieve bubble-tight shutoff (tested to 1.1x PN).

2. Ultra-Low Pressure Drop: Slim-profile design reduces flow resistance by 40% vs. swing check valves.

3. Maintenance-Free Operation: Self-cleaning plates and corrosion-proof materials ensure 10+ year service life.

4. Universal Installation: Horizontal/Vertical (flow-upward) mounting flexibility.

5. Certified Safety: Compliant with CE PED 2014/68/EU, UKCA, WRAS, and ACS standards.

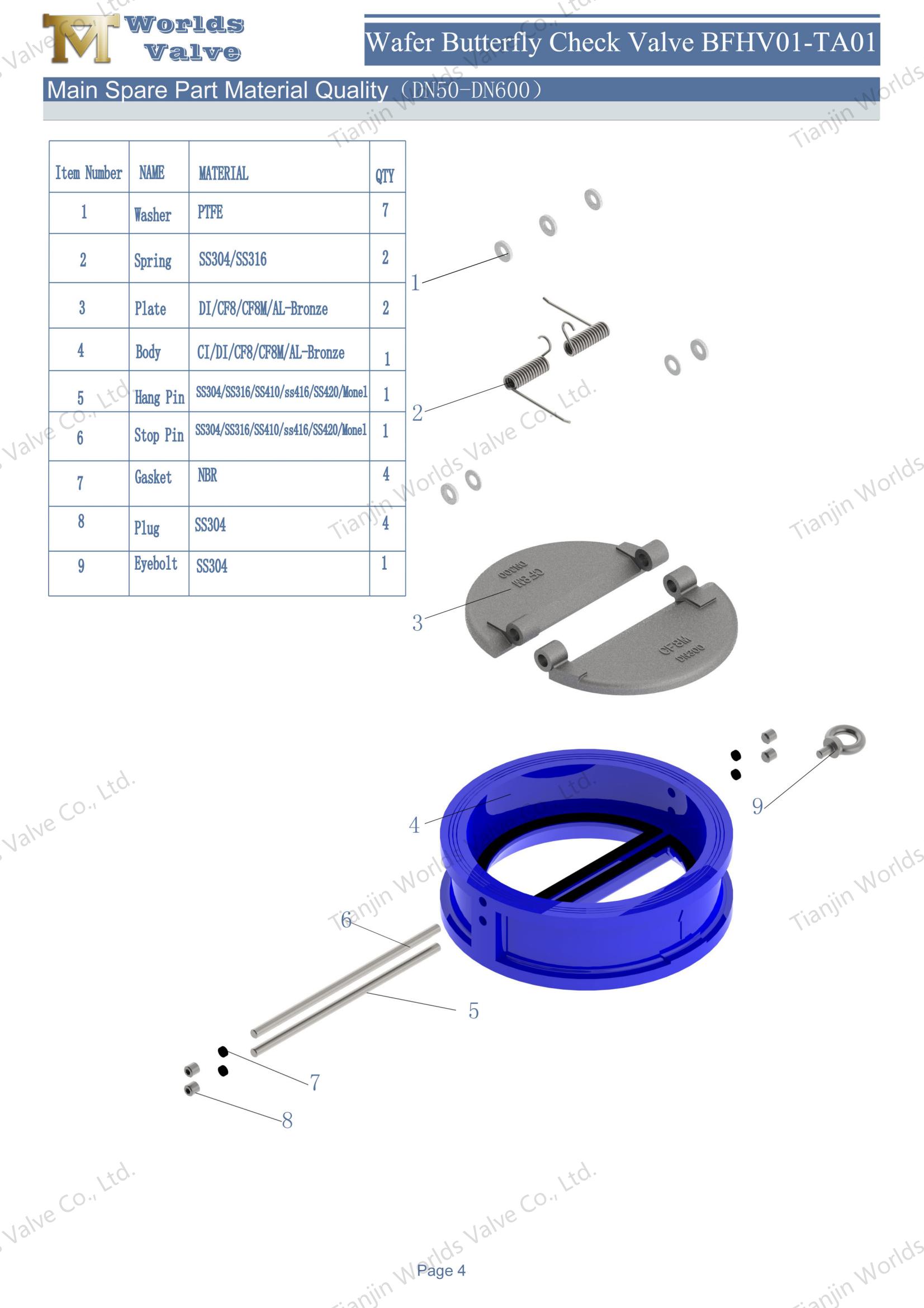

High Sealing performance Aluminum Bronze Dual Plate Check Valve-2

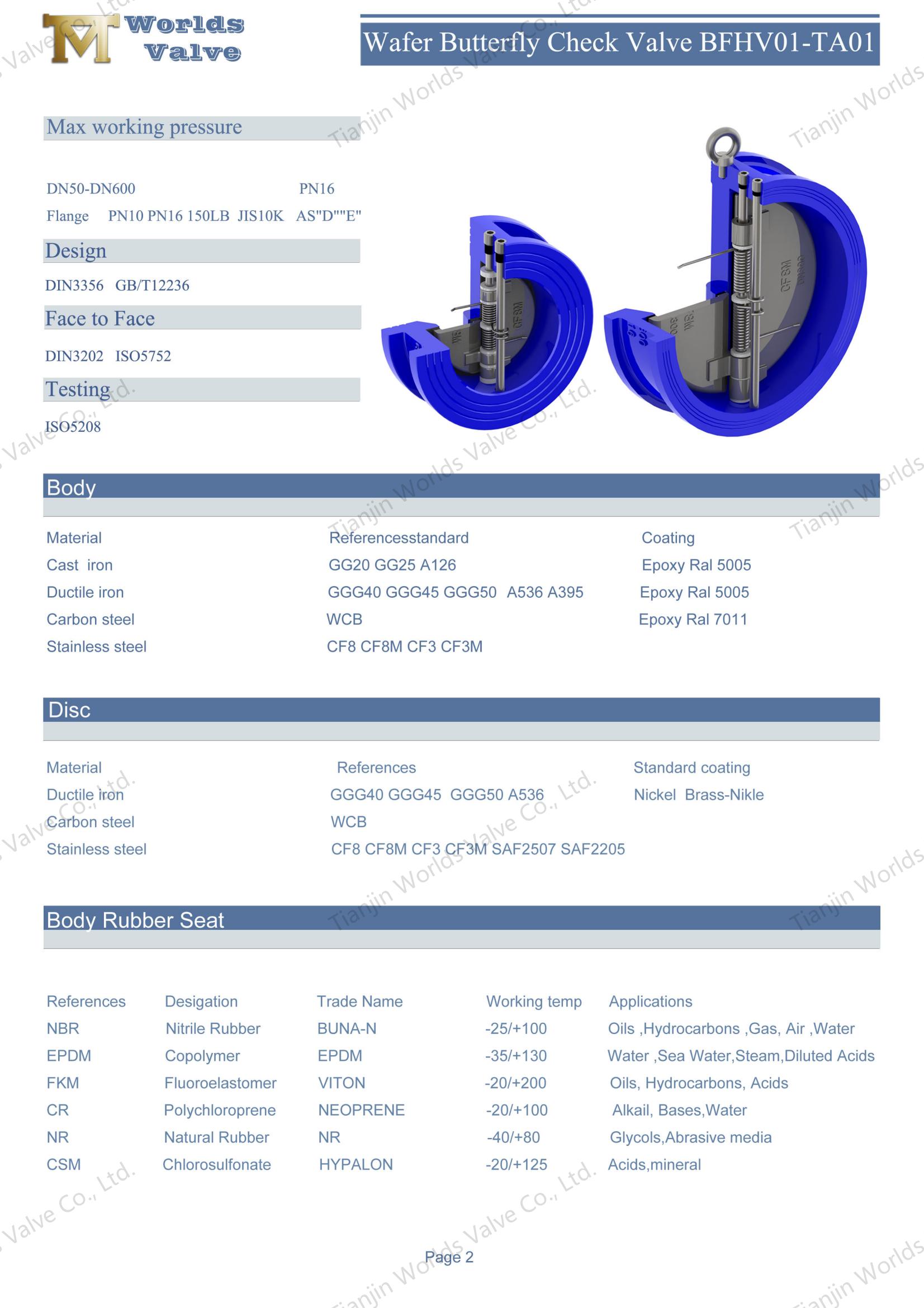

Technical Specifications

Component	Specification
Body	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Disc	Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Lining	EPDM NBR(BUNA-N) PTFE(Teflon) HEPDM FKM(VITON) Polychlorogrene Natural Rubber Silicone Rubber
Pin	Stainless Steel Monel K500
Size	DN50-DN600
Pressure Rating	PN10 PN16 150LB JIS10K AS”D””E”
Temperature Range	-15°C to 120°C (5°F to 250°F)
Testing	ISO5208
Certifications	ISO9001, ACS, UKCA, CE, ABS and so on.

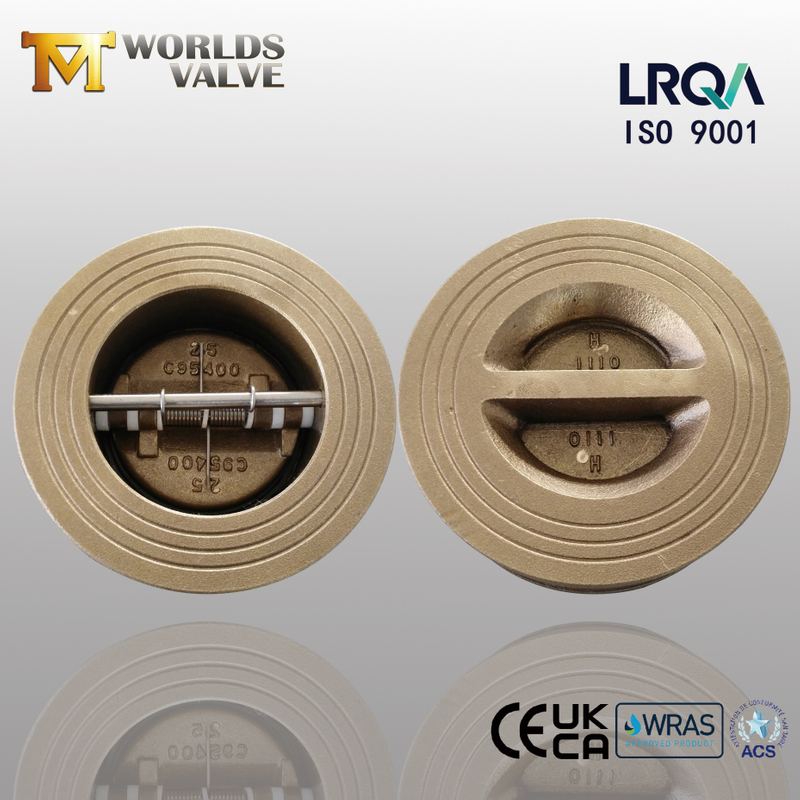

High Sealing performance Aluminum Bronze Dual Plate Check Valve-1

Certified Applications

Marine & Offshore (seawater cooling), Chemical Processing, Power Plant Cooling Systems, HVAC, Water Treatment, and Oil & Gas (non-sour service).

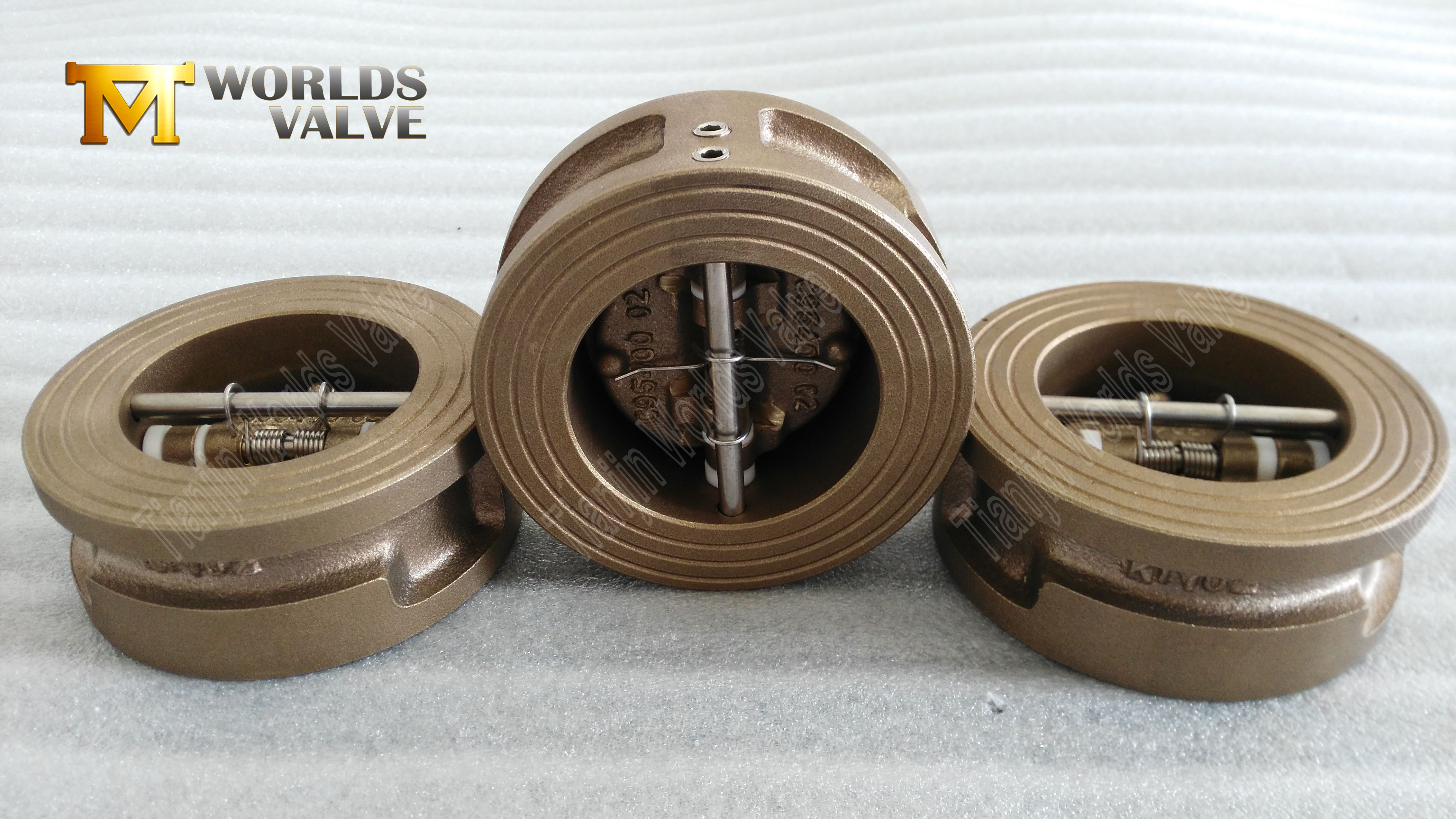

High Sealing performance Aluminum Bronze Dual Plate Check Valve-3

Beyond Compliance: Manufacturer Advantages

1. Expertise in OEM/ODM Services

As your trusted dual plate check valve manufacturer, we specialize in bespoke solutions tailored to your exact needs. We ensure seamless execution throughout the entire process, from initial design to final delivery.

2. Global Reach with Local Support

Worldwide delivery & dedicated local support.

3. Competitive Pricing

Competitive pricing on quality valves through optimized production & scale.

4. Comprehensive After-Sales Service

Expert technical support, installation guidance & maintenance services.

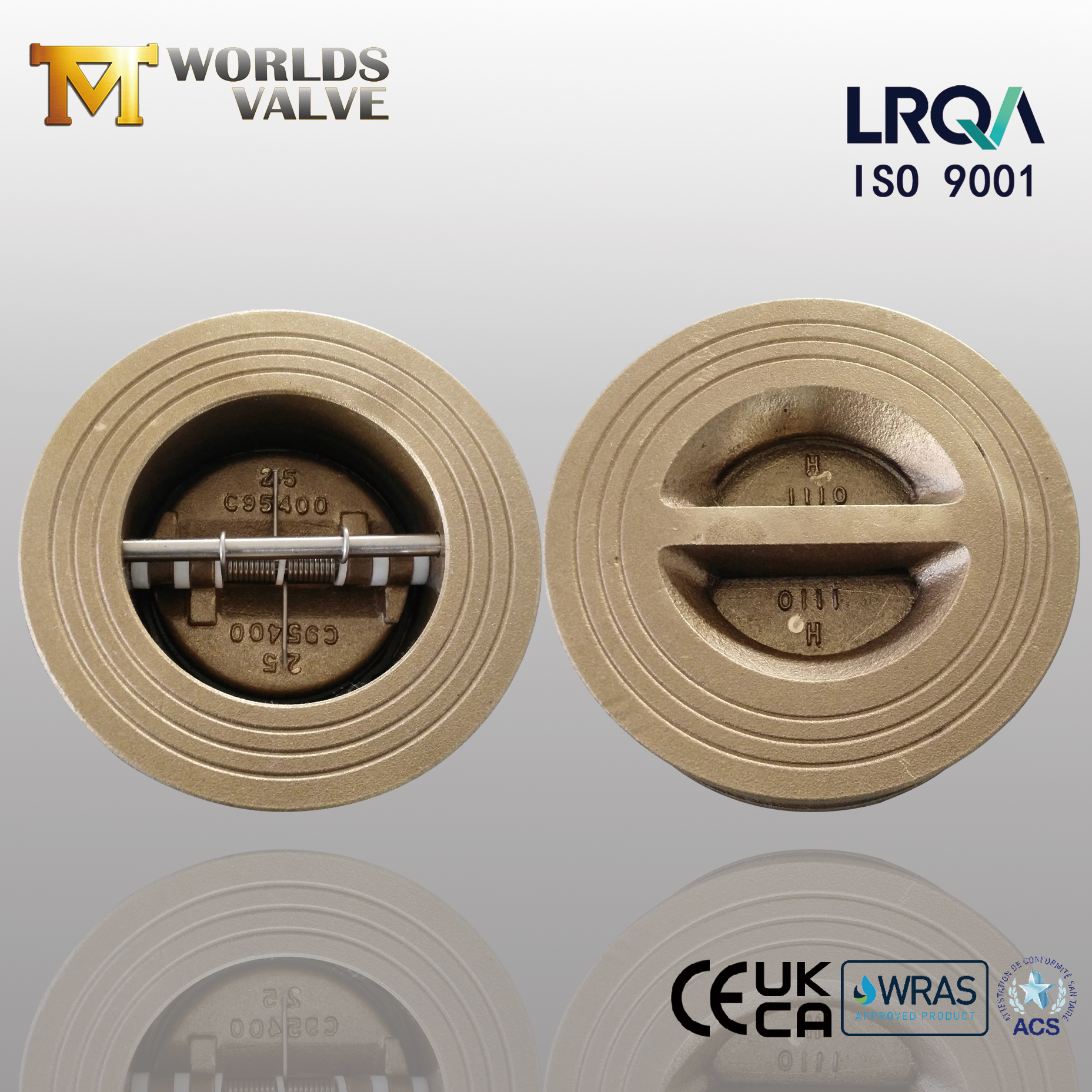

High Sealing performance Aluminum Bronze Dual Plate Check Valve-4

Conclusion:

Welcome to purchase our High Sealing performance Aluminum Bronze Dual Plate Check Valve. If you have any procurement needs, OEM/ODM or custom requirements, please contact our professional sales manager: dekai@worldsvalve.com
