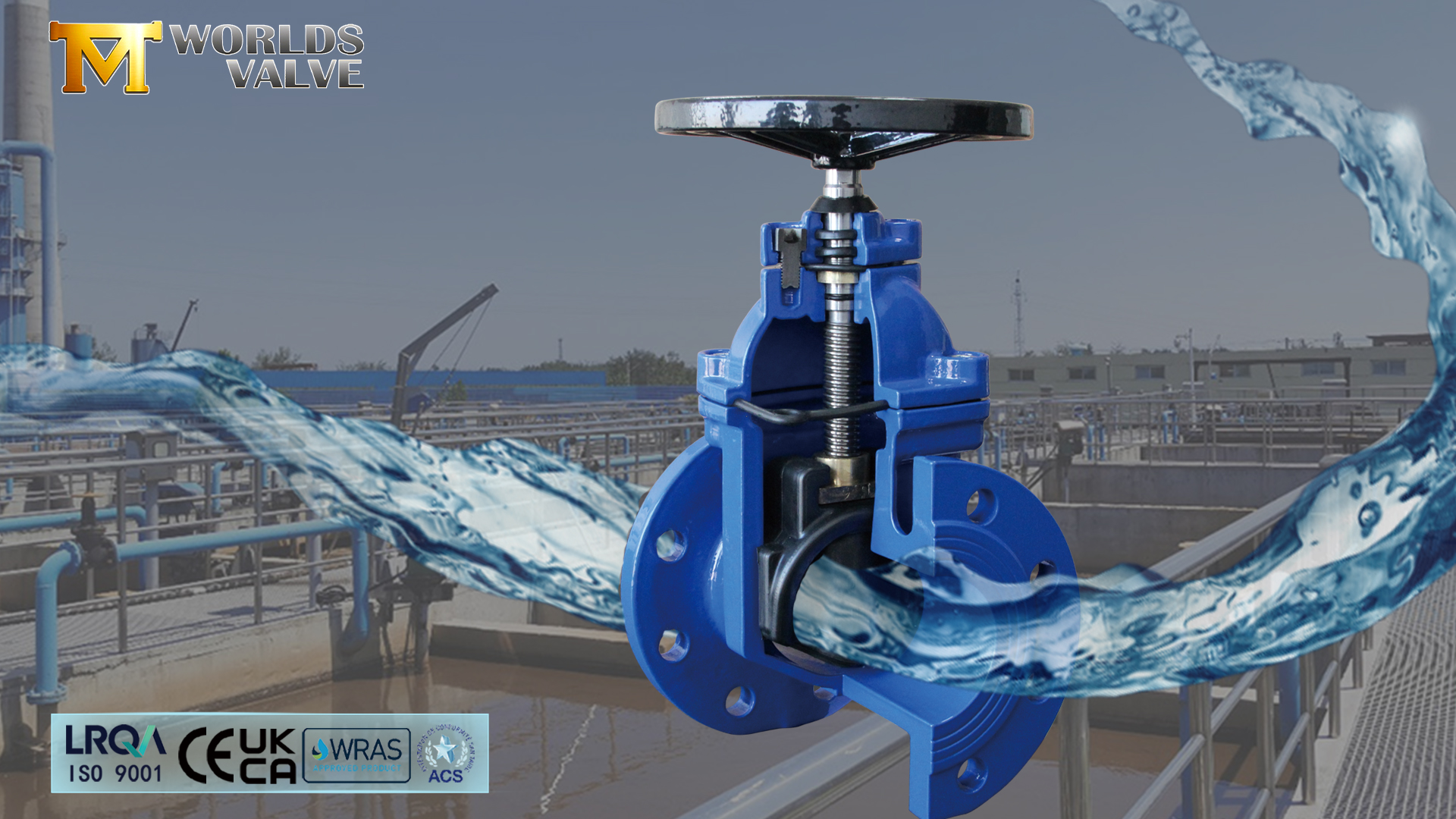

In fluid control systems where reliable shut-off is non-negotiable, the **Resilient Seated Gate Valve** is a cornerstone of modern pipeline design. Its unique sealing mechanism offers a superior solution compared to traditional metal-seated valves, especially in applications demanding bubble-tight closure and minimal maintenance.
This article provides a detailed breakdown of its working principle, core components, and the inherent advantages that make it a preferred choice across water, wastewater, and general industrial services.
Understanding the valve begins with its key parts, each engineered for durability and performance:
Body: Typically made from **ductile iron or cast iron**, often with **corrosion-resistant epoxy coating** for longevity. It houses all internal components and withstands pipeline pressures.
Gate/Wedge: A solid, usually stainless steel or coated component that moves perpendicularly to the flow to block or permit passage.
Resilient Seat: The defining feature. This is a **molded elastomer ring (EPDM, NBR)** securely bonded to the valve body, creating the sealing surface.
Stem: Connects the handwheel or actuator to the gate, translating rotational force into the gate’s linear motion. A **rising stem design** provides clear visual indication of valve position.
The operation is elegantly straightforward, centered on a perpendicular motion rather than a rotation.
The Opening & Closing Cycle:
1. Opening: Rotating the handwheel counter-clockwise rotates the stem, which mechanically lifts the gate **fully upward** into the bonnet. This retraction provides a **full, unobstructed bore**, minimizing pressure drop and allowing pigging in pipelines.
2. Closing: Clockwise rotation drives the gate **downward**. In the final stage of travel, the flat bottom of the gate contacts the inclined, resilient seat.
3. Sealing: As the gate continues its descent, it **compresses the elastomeric seat**. This compression forces the seat material to deform elastically, expanding laterally to fill the entire sealing interface between the gate and the body, creating a **bubble-tight seal**.
This design yields several critical benefits over metal-seated counterparts:
Bubble-Tight Seal: The elastic deformation of the seat compensates for minor surface imperfections, wear, or misalignment, ensuring zero leakage in the closed position—a requirement for potable water and environmental safety.
Low Operating Torque: The lubrication effect of the elastomer-on-metal contact requires significantly lower torque to operate than metal-to-metal seals, allowing for smaller actuators and easier manual operation.
Debris Resistance & Simplified Design: The valve body has a **smooth, groove-free bottom**. This prevents sediment and debris from accumulating in cavities (a common issue in metal-seated valves), reducing wear and simplifying maintenance. The design inherently is **bi-directional**, providing equal sealing in both flow directions.
Corrosion Resistance: The elastomer seat completely isolates the valve's metal components from the line media, protecting the gate and body from corrosion in water applications.
Optimal performance depends on correct application alignment:
Pressure & Temperature Limits: These valves excel in **moderate pressure ranges** (e.g., Class 150/PN16). The primary limitation is the **elastomer's temperature range** (typically -20°C to +110°C for EPDM). They are not suited for high-temperature steam or highly abrasive slurries.
Seat Material is Critical:
1. EPDM (Ethylene Propylene Diene Monomer): The standard for **potable water, wastewater, and mild chemicals.** Excellent resistance to weathering, ozone, and aging.
2. NBR (Nitrile Butadiene Rubber): Selected for applications involving **oils, fuels, and hydrocarbons.
3. Other elastomers like **FKM (Viton®)** are available for specific chemical or higher-temperature resistance.
Installation: Ensure proper pipeline alignment to avoid stressing the valve body. The valve can be installed in any orientation. Support the pipeline adequately on either side.
Maintenance: These valves are designed for minimal upkeep. Primary maintenance involves:
1. Cycling the Valve: Operate the valve fully open to closed periodically to prevent seat adhesion and keep moving parts free.
2. External Inspection: Check for leaks at the stem packing (which can usually be adjusted in-line) and inspect the epoxy coating for damage.
3. Seat Replacement: If the seal fails, the **entire resilient seat can be replaced** without removing the valve body from the line in many designs, drastically reducing downtime.
At **Tianjin Worlds Valve Co., Ltd.**, our resilient seated gate valves are built to exceed expectations through refined engineering:
Advanced Corrosion Protection: We apply **high-quality, baked epoxy coatings** internally and externally, certified for potable water (**WRAS, ACS**), ensuring durability in aggressive environments.
Optimized Seat & Gate Design: Our seats are precision-molded and bonded for uniform compression and maximum service life. The gate is precision-machined and coated for smooth, wear-resistant operation.
Rigorous Quality Assurance: Every valve is **factory tested** (shell strength and seat leakage tests) in accordance with **ISO 5208 standards** before shipment. Our **ISO9001-certified manufacturing** process guarantees consistency.
Global Service & Customization: Supporting clients in **over 50 countries**, we offer flexible **OEM/ODM services** and provide technical support to ensure the right valve, with the correct materials and certifications (**CE, UKCA**), is selected for your specific application.
The resilient seated gate valve achieves reliable, low-maintenance performance through its intelligent use of elastic deformation for sealing. Its simplicity, tight shut-off, and debris-tolerant design make it an indispensable asset for water distribution, wastewater treatment, and general industrial services. By selecting a valve from a manufacturer committed to quality materials, precise engineering, and thorough testing, you invest in decades of dependable service.
