Butterfly valves are widely used in industrial and commercial piping systems due to their compact design, ease of operation, and cost-effectiveness. Among the various types, Lug Butterfly Valve and wafer-style butterfly valves are two of the most common options. Understanding the differences between these two types is critical for engineers, operators, and maintenance personnel to select the right valve for their specific application. Each valve type offers distinct advantages in terms of installation, maintenance, pressure handling, and cost. Choosing the wrong type can lead to operational inefficiencies, higher maintenance costs, or even system failures. By analyzing their structural features, installation methods, application suitability, pressure capabilities, and overall cost, operators can make informed decisions that optimize performance and reliability in industrial systems.
The primary distinction between a Lug Butterfly Valve and a wafer butterfly valve lies in their body design and flange connection methods, which directly impact installation flexibility, maintenance, and performance under various operating conditions.
A Lug Butterfly Valve features threaded lugs distributed around its body. These lugs enable the valve to be bolted directly to the pipeline flanges independently, without requiring support from the opposing side. This design allows the valve to be installed at the end of a pipeline or in dead-end service, making it possible to isolate sections of the system for maintenance or replacement without shutting down the entire pipeline. This feature is particularly advantageous in industrial plants, chemical processing units, and water distribution systems where uninterrupted flow on the opposite side is crucial.

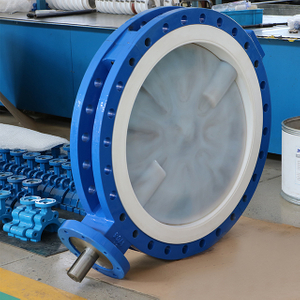

The valve body is typically constructed from durable materials such as ductile iron, stainless steel, or carbon steel. Often, the body is coated or lined for enhanced corrosion resistance. The valve disc and seat are precision-engineered to ensure tight sealing under a range of pressures. The stem enables smooth 90-degree rotation for rapid valve operation, making Lug Butterfly Valves highly efficient for both manual and automated systems.
In contrast, wafer butterfly valves are designed to fit snugly between two pipeline flanges. This sandwich-style configuration relies on flange bolt compression to hold the valve in position. Because wafer valves lack independent support from lugs, they cannot be installed at dead-end locations. Removing a wafer valve requires disassembling both flanges, which interrupts flow along the entire system, making maintenance more challenging in critical industrial applications.
The wafer valve also uses a central disc and seat for controlling fluid flow, similar to Lug Butterfly Valves. However, its sealing and pressure-handling capabilities are generally lower due to the reliance on flange compression rather than a reinforced lug body.
Installation and maintenance are key factors that differentiate these two types of butterfly valves.
One of the most significant advantages of a Lug Butterfly Valve is its installation and maintenance flexibility. Because the valve can be bolted independently to one flange, it can be installed at pipeline ends or locations requiring frequent access. This allows sections of the pipeline to remain operational while the valve is removed or serviced. Periodic maintenance—including inspection of the disc, seat, stem, and actuator—can be performed efficiently without disturbing connected piping, minimizing downtime and operational interruptions.
Wafer-style valves, on the other hand, must be sandwiched between two flanges. Installing or removing a wafer valve usually requires shutting down the pipeline and unbolting both flanges. While wafer valves are lighter and easier to handle, this maintenance approach can be cumbersome, particularly in large-scale or high-pressure industrial systems. Frequent maintenance is more disruptive and time-consuming compared to Lug Butterfly Valves.
The choice between a Lug Butterfly Valve and a wafer valve depends heavily on the operational context and system requirements.
Lug valves are ideal for systems that require dead-end service, enabling installation at the end of pipelines or removal without shutting down downstream flow. They are commonly used in water distribution networks, chemical processing plants, and oil and gas pipelines. Lug Butterfly Valves are also well-suited for high-pressure or large-diameter pipelines where sealing performance, durability, and maintenance convenience are critical.
Wafer valves are generally chosen for applications where cost, weight, and space are primary considerations. They are commonly employed in low-pressure, low-temperature pipelines or systems that do not require frequent valve removal. Typical examples include HVAC systems, small water treatment lines, and budget-sensitive industrial setups. While wafer valves are economical and lightweight, their inability to handle dead-end service or high-pressure conditions limits their versatility compared to Lug Butterfly Valves.
Pressure handling and sealing capabilities are significant differentiators between these valve types.
Lug Butterfly Valves are designed to withstand bi-directional pressure, meaning they can maintain a tight seal regardless of the direction from which pressure is applied. This capability makes them highly reliable for dead-end installations or pressurized pipelines where flow direction may change. Reinforced body construction, robust seat materials, and precision disc alignment combine to provide minimal leakage and consistent performance under high-pressure or high-stress conditions.
Wafer valves rely on flange compression to achieve support and sealing. This limits their pressure rating and makes them less suitable for high-pressure or fluctuating flow conditions. Consequently, wafer valves are best applied in moderate or low-pressure systems where sealing requirements are less demanding. While cost-effective and lightweight, wafer valves cannot match the robust performance and versatility of Lug Butterfly Valves in critical or high-pressure industrial applications.
Overall, understanding these structural, operational, and performance differences enables engineers and operators to make informed choices. Lug Butterfly Valves provide superior flexibility, high-pressure reliability, and maintenance convenience, while wafer valves offer economic advantages for lighter-duty or cost-sensitive systems. Selecting the correct type ensures optimal pipeline performance, reduces maintenance downtime, and enhances overall system safety and efficiency.
Cost is an important factor when choosing between a Lug Butterfly Valve and a wafer butterfly valve, as it can impact both initial investment and long-term operational expenses.
These valves generally have a higher upfront cost due to their robust construction, threaded lugs, and ability to handle bi-directional pressure. The design also facilitates easy installation and maintenance, particularly in dead-end service or high-pressure applications. While the initial investment is greater, it is often justified by long-term benefits such as reduced downtime, lower maintenance frequency, enhanced reliability, and extended service life. Over time, the durability and operational efficiency of Lug Butterfly Valves can offset the higher purchase price, making them a cost-effective choice for critical industrial applications.
Wafer valves are typically less expensive and lighter, offering a more economical solution for budget-sensitive projects or low-pressure systems. They are suitable for pipelines that do not require frequent maintenance or dead-end service. However, their cost advantage comes with trade-offs, including lower pressure handling capabilities and more complicated maintenance procedures, which may increase operational challenges in demanding systems.
Both Lug Butterfly Valves and wafer butterfly valves have unique advantages tailored to different industrial applications. Lug valves offer superior installation flexibility, bi-directional pressure handling, and easy maintenance, making them ideal for high-pressure systems, dead-end service, and demanding environments. In contrast, wafer valves are lightweight, cost-effective, and suited for low-pressure applications where budget and space are key considerations. Understanding these structural, operational, and economic differences helps engineers choose the right valve for reliable, safe, and efficient pipeline performance. For more information on high-quality Lug Butterfly Valves and expert guidance on selecting the ideal valve for your system, contact Tianjin Worlds Valve Co., Ltd. to explore their wide range of solutions and professional support.
