Grooved end butterfly valves have quietly become one of the most practical flow control solutions in water distribution, HVAC, and light industrial piping. They install fast, they're easy to maintain, and they don't require welding or flange bolting.

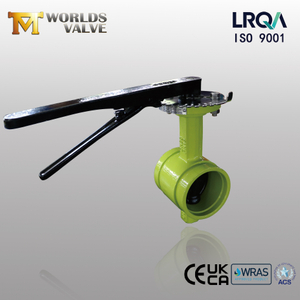

But not all grooved valves are the same. The body material, seat compound, and operation method all affect how the valve performs over time. This article looks at a configuration that has proven itself in the field: a grooved end butterfly valve with ductile iron body, EPDM seat, and hand lever operation—available in any size to suit your project requirements.
Grooved end connections have become a preferred choice for piping engineers across a wide range of industries. The concept is simple: the valve body has machined grooves on each end, and mechanical couplings clamp over the pipe ends and the valve grooves to form a secure, flexible joint.
What makes this connection method attractive?
Fast installation–A grooved joint can be assembled in a fraction of the time required for welding or flange bolting. No hot work permits, no specialized welders, no torque wrenches.
Easy maintenance–You can remove and replace the valve without cutting pipe or disturbing adjacent equipment. Just loosen the couplings, swap the valve, and tighten again.
Flexibility–Grooved joints allow slight angular and linear movement, which helps accommodate thermal expansion and minor pipe settling.
Standardization–Grooved ends are manufactured to AWWA C606, ensuring compatibility with standard couplings from multiple suppliers.
For water distribution, HVAC, and light industrial systems, these advantages translate into real savings—both during construction and over the life of the system.

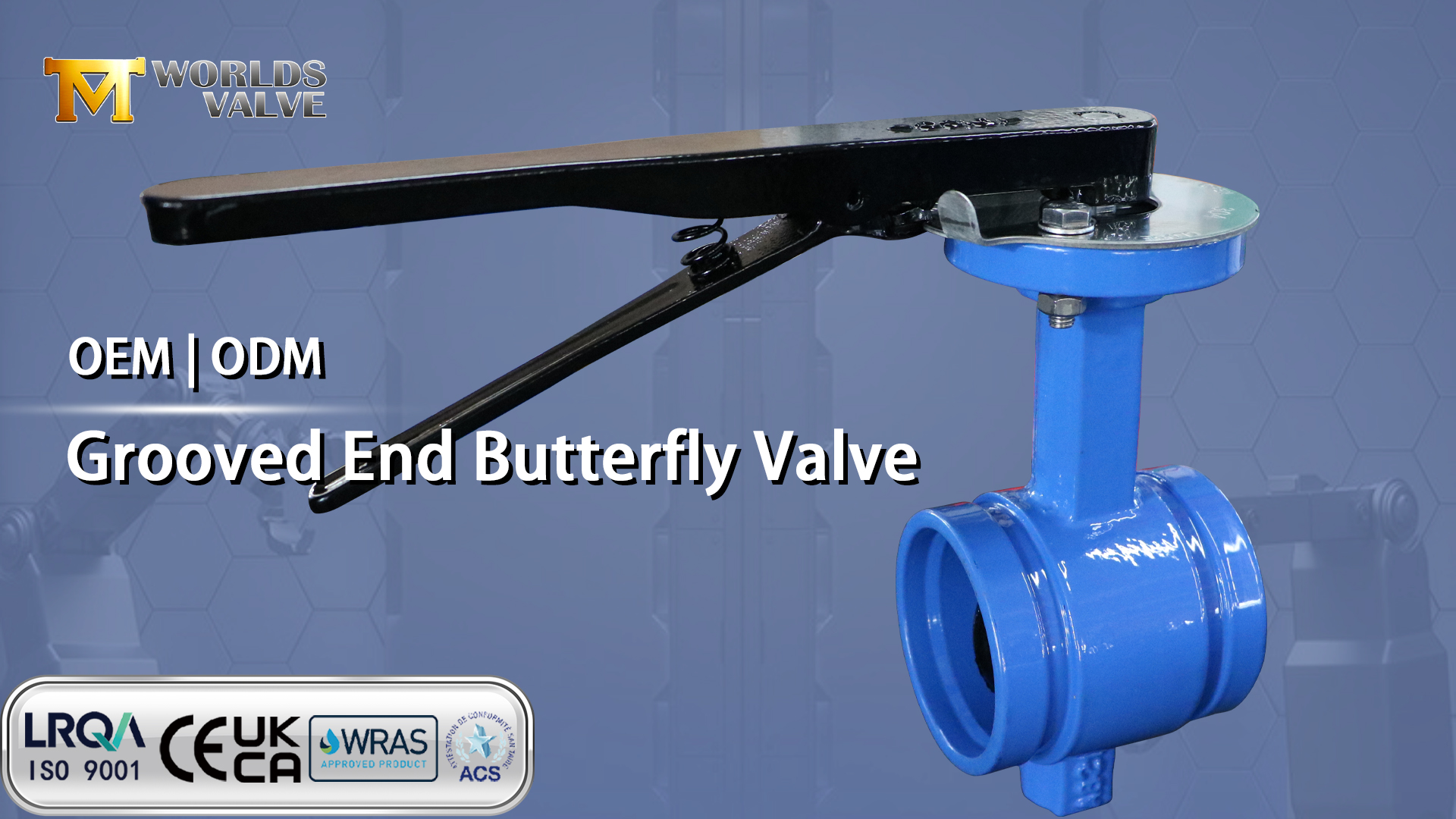

For valves in small to medium sizes, a hand lever is often the most practical choice. The operating torque is low enough for one person to manage comfortably, and there's no need for power, control air, or complex wiring.
A hand lever with a locking plate gives you clear open/closed indication and prevents accidental movement. It's a straightforward, reliable way to control flow at branch lines, isolation points, and equipment connections.
That said, there are situations where a hand lever isn't ideal. If the valve is operated frequently, or if it's located in a hard-to-reach area, a gear operator or actuator may be more appropriate. The good news is that most grooved end butterfly valves—including the configuration described here—feature an ISO 5211 top flange as standard. If your needs change, you can bolt on an actuator without replacing the valve body.
Ductile iron (DI) is the standard body material for water service butterfly valves. It offers roughly twice the tensile strength of gray iron, along with excellent impact resistance. For grooved end valves, that strength matters—the body must handle pressure surges, water hammer, and the mechanical stresses of a flexible piping system.
DI also machines well, so the groove dimensions and disc bores hold tight tolerances. The body is typically coated with epoxy—250μm minimum is a common specification—to protect against external corrosion in humid, buried, or washdown environments.
EPDM is the go-to seat material for water and wastewater applications. Its temperature range—typically -20℃ to +120℃—covers most municipal and industrial water systems. It resists water, steam, and outdoor weathering, and it handles dilute acids, alkalis, and common treatment chemicals like chlorine and ozone.
EPDM also compresses well, creating a bubble-tight seal against the disc even at low differential pressures. That's important in water systems, where leak-free isolation is a basic requirement.
One limitation: EPDM is not suitable for oil or hydrocarbon service. If your media contains oils, you'd need NBR or FKM instead.
This valve configuration—grooved end, DI body, EPDM seat, hand lever—fits naturally into a range of applications:
Water distribution–Branch lines, meter connections, and isolation points in municipal networks.
HVAC systems–Chilled water and hot water loops in commercial and institutional buildings.
Light industrial processes–Cooling water, process water, and utility lines.
Irrigation systems–Mainlines and sub-mains where manual control is sufficient.
Fire protection–Smaller fire water lines and sprinkler connections (with appropriate approvals).
In each case, the combination of grooved connection, hand lever, DI body, and EPDM seat delivers reliable performance without unnecessary complexity.
Grooved end valves are forgiving, but a few practices ensure long service life:
Check groove compatibility. Make sure the grooved couplings match the valve's groove dimensions. AWWA C606 is the common standard, but metric and imperial grooves differ.
Lubricate the gaskets. A little silicone lubricant helps the coupling gaskets slide into place and prevents pinching during assembly.
Tighten evenly. Follow the coupling manufacturer's torque recommendations. Over-tightening can distort the gasket; under-tightening can leak.
Support the pipe. Don't let the valve carry the weight of unsupported pipe. Use hangers or supports as needed.
Cycle the valve periodically. Even if it's not operated often, open and close it a few times a year to keep the seat and stem moving freely.
Inspect the seat. EPDM can harden or swell over time, especially in chlorinated water. Replace if you see cracking or leakage.
Using EPDM in oil service. It will swell and fail. Choose NBR or FKM instead.
Ignoring temperature derating. EPDM's pressure rating may be reduced at higher temperatures. Check the manufacturer's data.
Overtightening the lever. The lever should be snug, not forced. If it's hard to operate, check for debris or seat damage.
Skipping the ISO 5211 flange. If there's any chance you'll automate later, make sure the valve has this feature. Retrofitting without it is expensive.
A grooved end butterfly valve with a hand lever, ductile iron body, and EPDM seat is a practical, reliable choice for water distribution, HVAC, and light industrial systems. It installs fast, operates easily, and handles the pressures and temperatures of typical service conditions.
At Tianjin Worlds Valve Co., Ltd., we manufacture this configuration in any size to suit your project requirements. As an OEM/ODM manufacturer with LRQA-certified ISO 9001:2015 quality systems, we can customize materials, sizes, coatings, and actuators to your exact specifications. If you're selecting a valve for an upcoming project, our engineering team is happy to help you evaluate the options.
