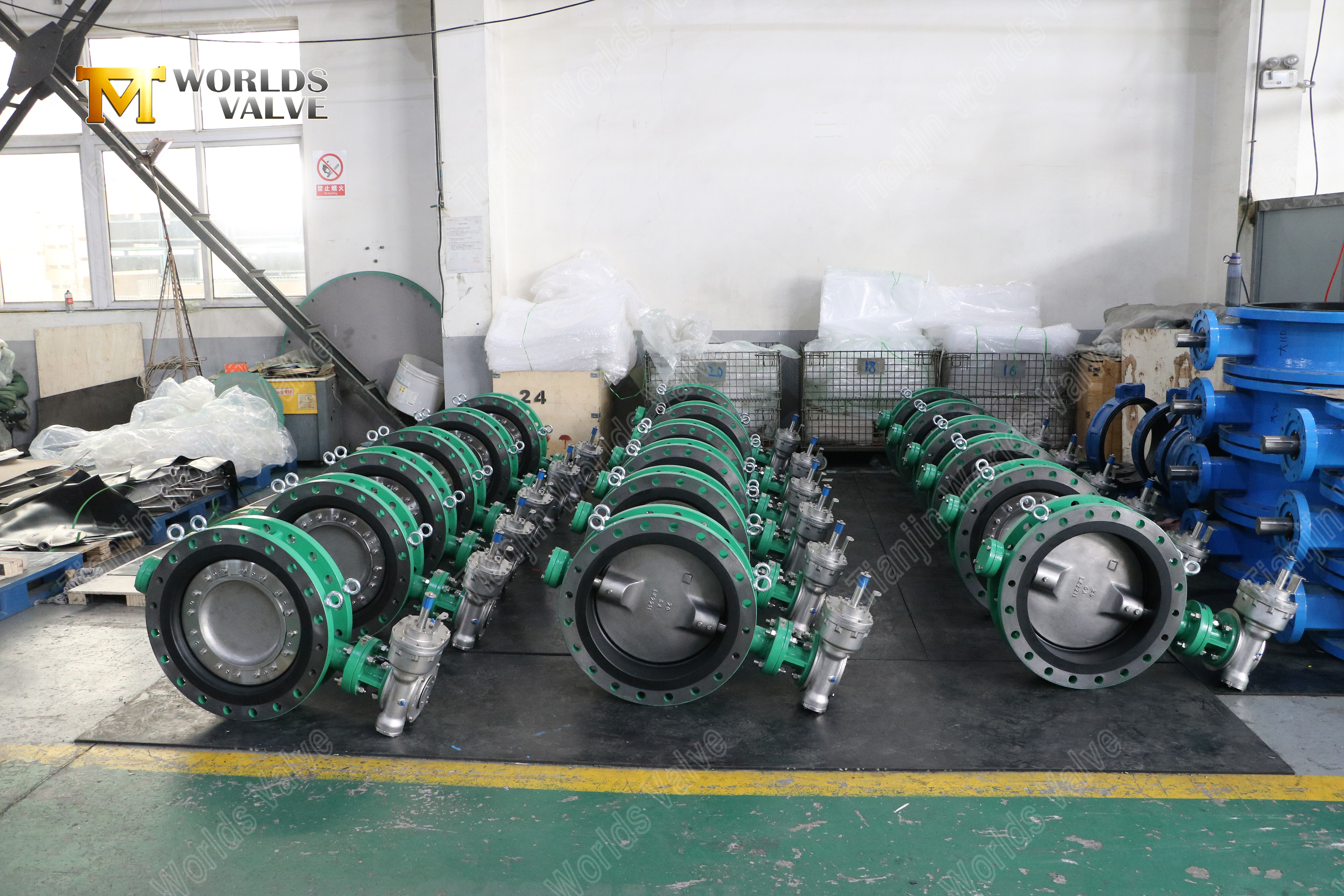

Design: Ebonite Seat Double Eccentric Butterfly Valves
Type: EBF01-TF03V
Size: DN1200
Body material: DI (Ductile Iron)
Seat: Ebonite
Disc: 5A
Pressure rating: 10 Bar
Operating temperatures: -30℃—80℃
Structure: Double Offset Flanged
Painting Colour: RAL6024
As a specialized butterfly valve manufacturer and supplier, we offer high-performance Ebonite Seat Double Eccentric Butterfly Valves engineered for severe corrosive and abrasive applications. These valves integrate a unique ebonite (hard rubber) seating surface with advanced double eccentricity design, ensuring exceptional shut-off reliability and extended service life in challenging environments.
1. Superior Corrosion Resistance
The ebonite seat provides excellent resistance to aggressive chemicals, acids, and alkalis, making it ideal for highly corrosive media.
2. Double Eccentric Design
Reduces seat friction and wear during operation, enabling tighter sealing, lower operating torque, and longer service life.
3. Abrasion Resistance
Ideal for slurry, sewage, and particulate-laden fluids where standard valves may fail prematurely.
4. Bidirectional Zero-Leakage Seal
Ensures reliable shut-off in both flow directions, even under varying pressure and temperature conditions.
5. Low Maintenance & High Durability
Suitable for continuous operation in industries such as mining, chemical processing, and wastewater treatment.
Chemical and Acid Handling | Wastewater and Slurry Systems | Mining and Mineral Processing | Marine and Offshore | Power Plant FGD Systems
Customizable seat and lining materials
Full compliance with international standards
OEM/ODM support with third-party certification support
Global supply capability with after-sales technical service
As an ISO 9001-certified manufacturer, Tianjin Worlds Valve Co., Ltd. provides OEM/ODM support and custom-designed valves tailored to specific project requirements.
Meeting Your Specific Needs:
