Butterfly valves are widely used in various industries for flow regulation and shut-off applications. Among the different types of butterfly valves, concentric butterfly valves stand out for their unique design and functionality. In this article, we will delve into what concentric butterfly valves are, their applications, and the advantages they offer.
A concentric butterfly valve, also known as a zero-offset or centric butterfly valve, is a type of valve that is designed to control the flow of fluids through a pipe. The term “concentric” refers to the alignment of the valve’s shaft, disc, and seat, which are all centered along the same axis.

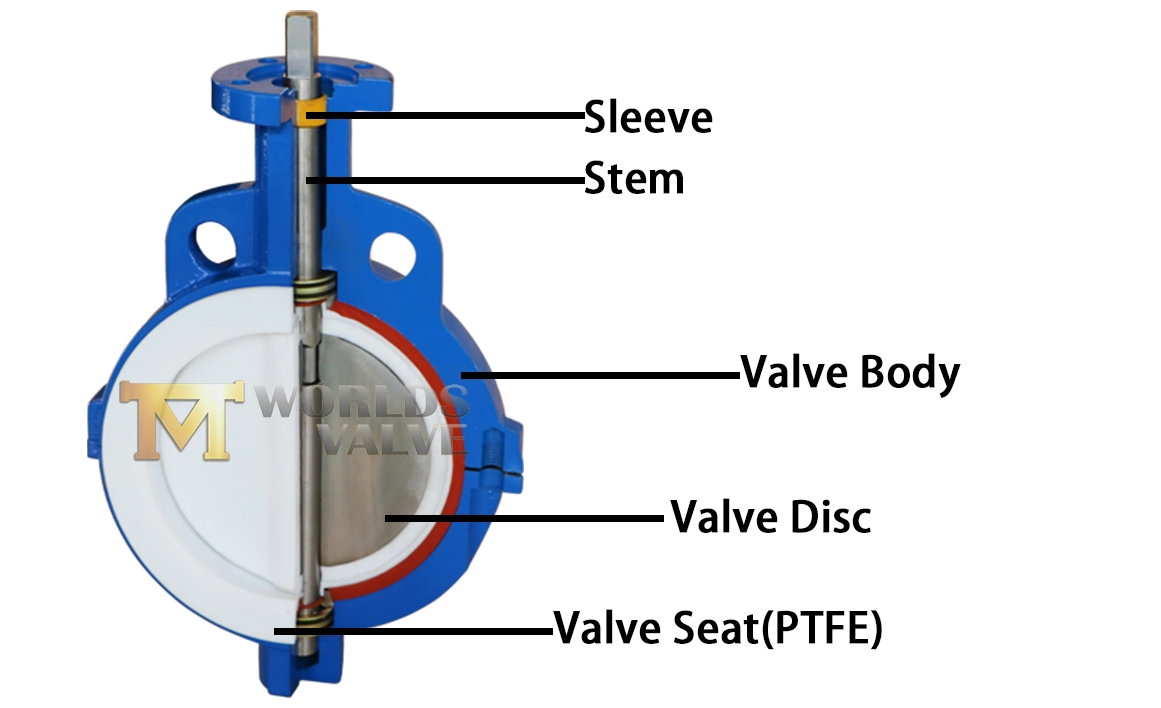

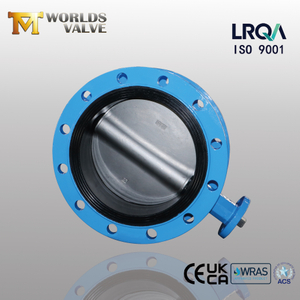

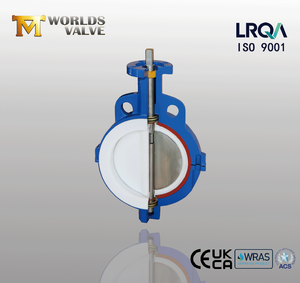

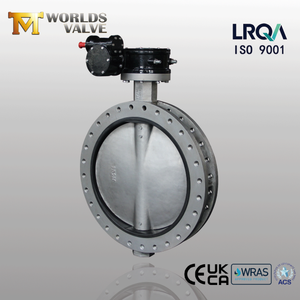

In a concentric butterfly valve, the disc is mounted on a shaft that passes through the center of the valve body. The disc is positioned in the flow path of the fluid, and when the valve is rotated, the disc either aligns parallel to the flow (open position) or perpendicular to the flow (closed position). The valve’s seat, which is a resilient elastomeric material, provides a tight seal around the disc to prevent leakage when the valve is closed.
Concentric butterfly valves are known for their simplicity, compact design, and cost-effectiveness. They are commonly used in applications such as water treatment, HVAC systems, and industrial processes where on/off control or throttling of flow is required.
Concentric butterfly valves find applications in various industries due to their versatility and reliability. Here are some common applications:
1. Water and wastewater treatment:Concentric butterfly valvesare extensively used in water and wastewater treatment plants for flow regulation and isolation purposes. They are employed in processes such as coagulation, sedimentation, filtration, and disinfection. The ability of concentric butterfly valves to handle large flow rates and provide tight shut-off makes them suitable for these applications.
2. HVAC systems:In heating, ventilation, and air conditioning (HVAC) systems, concentric butterfly valves are used for controlling the flow of chilled water, hot water, and steam. They are commonly installed in ductwork, air handling units, and fan coil units. The compact design and low torque requirements of concentric butterfly valves make them ideal for space-constrained HVAC applications.
3. Industrial processes:Concentric butterfly valves are widely used in various industrial processes such as chemical processing, food and beverage production, and oil and gas refining. They are employed for tasks like blending, batching, and transferring of fluids. The ability of concentric butterfly valves to handle corrosive and viscous fluids, coupled with their ease of maintenance, makes them a popular choice in industrial applications.
4. Fire protection systems:In fire protection systems, concentric butterfly valves are used for controlling the flow of water in fire hydrant networks, sprinkler systems, and foam systems. They are typically installed in underground water storage tanks, pump rooms, and distribution pipelines. The reliable performance and durability of concentric butterfly valves ensure the effective operation of fire protection systems in critical situations.
5. Mining and mineral processing:Concentric butterfly valves are employed in mining and mineral processing operations for tasks such as slurry handling, tailings disposal, and concentrate dewatering. They are designed to withstand harsh operating conditions, including high temperatures, aggressive chemicals, and abrasive solids. The robust construction and excellent sealing capabilities of concentric butterfly valves make them suitable for demanding mining applications.
Concentric butterfly valves offer several advantages that make them a preferred choice in various applications:
1. Compact design:The compact design of concentric butterfly valves allows for space-saving installations, especially in applications where horizontal or vertical space is limited. The slim profile of these valves minimizes the overall footprint, making them suitable for tight spaces.
2. Cost-effectiveness:Concentric butterfly valves are generally more cost-effective compared to other types of valves, such as gate or globe valves. The simpler construction and fewer moving parts result in lower manufacturing and maintenance costs.
3. Low torque requirements:The unique design of concentric butterfly valves requires less torque to operate compared to eccentric or double-offset butterfly valves. This characteristic allows for the use of smaller actuators, further reducing costs and space requirements.
4. Versatile applications:Concentric butterfly valves are versatile and can be used in a wide range of applications, including water and wastewater treatment, HVAC systems, industrial processes, and fire protection systems. Their ability to handle different fluids, pressures, and temperatures makes them a reliable choice for various industries.
5. Ease of maintenance:Concentric butterfly valves are known for their ease of maintenance. The simple design and few moving parts mean that these valves require minimal maintenance and have a long service life. In most cases, routine inspections and occasional lubrication are sufficient to keep the valves in optimal condition.
Concentric butterfly valves are a popular choice for flow control and shut-off applications due to their unique design and functionality. These valves find applications in various industries, including water and wastewater treatment, HVAC systems, industrial processes, and fire protection systems. The advantages of using concentric butterfly valves, such as their compact design, cost-effectiveness, low torque requirements, versatile applications, and ease of maintenance, make them a preferred option for many engineers and facility managers. When selecting a valve for your next project, consider the concentric butterfly valve as a reliable and efficient solution.
