Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer
RGV01-TF01-Operation and Maintenance Manual DOWNLOAD
Convenient Operation: The electric actuator enables open/close control from a control room, reducing labor costs and improving response time.
Local & Remote Control: Standard configuration includes manual override handwheel and position indication for local use.
Voltage Flexibility: Actuator voltage customizable (e.g., 110V, 220V, 380V, 24V DC) based on site requirements.
Vertical Clearance Saving: The stem does not rise when the valve opens, making it suitable for buried pipelines, valve pits, and installations with limited headroom.
Reliable Stem Protection: The stem threads are enclosed and lubricated, protected from debris and corrosion.
Zero Leakage: The EPDM rubber seat is compression-molded onto the ductile iron body or gate, providing a tight seal that meets or exceeds Class VI requirements for water service.
Excellent Media Compatibility: EPDM is resistant to water, wastewater, mild chemicals, and weathering.
Low Torque Operation: The resilient seat reduces friction between the gate and seat, lowering actuator torque requirements.
High Mechanical Strength: The body is cast from GGG40/500-7 ductile iron, offering superior tensile strength and impact resistance compared to gray iron.
Corrosion Protection: Standard epoxy coating (minimum 250μm) protects against atmospheric and soil corrosion for buried service.
Long Service Life: Ductile iron resists pressure surges and mechanical stress common in large-diameter water mains.
Unobstructed Flow Path: When fully open, the gate retracts completely into the bonnet, providing a full bore that does not restrict flow.
Energy Efficient: Reduced pressure drop lowers pumping costs in high-flow systems.
Flange Standards: Available with EN 1092-2 PN10/PN16, ANSI B16.1 Class 125, or other standards per request.
Accessories: Can be equipped with manual override, positioner, heater, or explosion-proof housing.

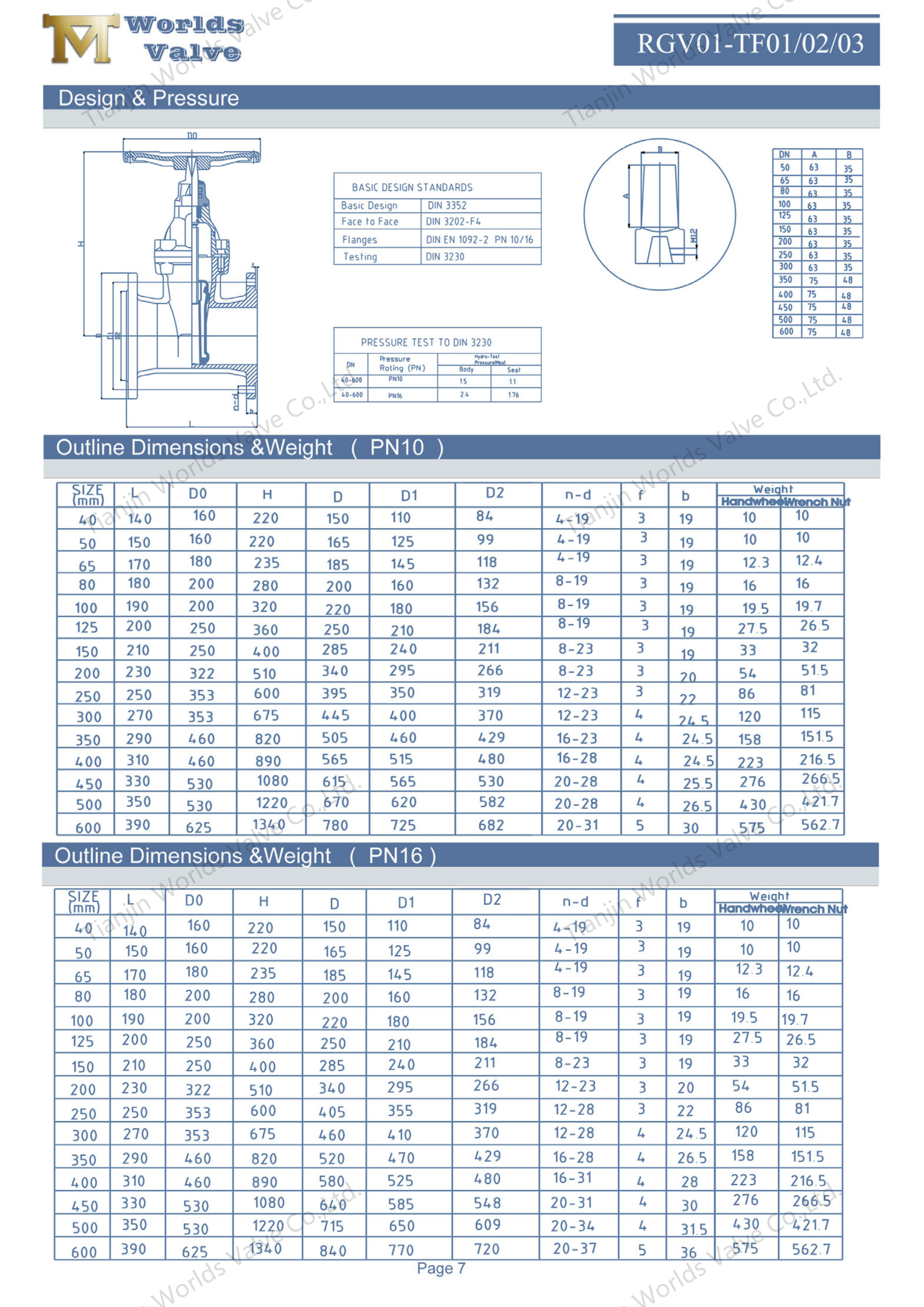

Parameter | Specification |
Model | Non-Rising Stem Resilient Seated Gate Valve(RGV01-TF01) |
Sizes | DN600 (24 inches) |
Pressure Rating | PN10/16/150LB/JIS10K |
Design | EN593 BS5155 EN1092 ISO5211 |
Testing | ISO5208 EN12266-1 |
TOP Flange | ISO5211 (according to customer’s needs) |
Face to Face | EN558-1 DIN3202 ISO5752 BS5155 |
Body | DI (Ductile Iron) |
Disc | Rubber Coated DI Disc |
Seat | EPDM,NBR,FKM,PTFE... |
Stem | SS410/420/431... |
Temperature Range | -20°C to +120°C (with EPDM seat) |
Applicable Media | Water, Treated Water, Wastewater, Mild Fluids |
Integrated Automation: We supply valve and actuator as a complete assembly, tested together for reliable operation.
OEM Customization: Flange drilling, actuator voltage, control type, and special coatings can be tailored to your project.
Certified Quality: ISO 9001 certified facility with CE, UKCA, and WRAS options available for potable water applications.
Global Supply: We have shipped large-diameter gate valves to water authorities and industrial clients worldwide.
Municipal Water Supply and Distribution Mains
Wastewater Treatment Plants and Pumping Stations
Industrial Cooling Water Systems
Fire Protection Systems (with appropriate approvals)
Irrigation and Flood Control Projects

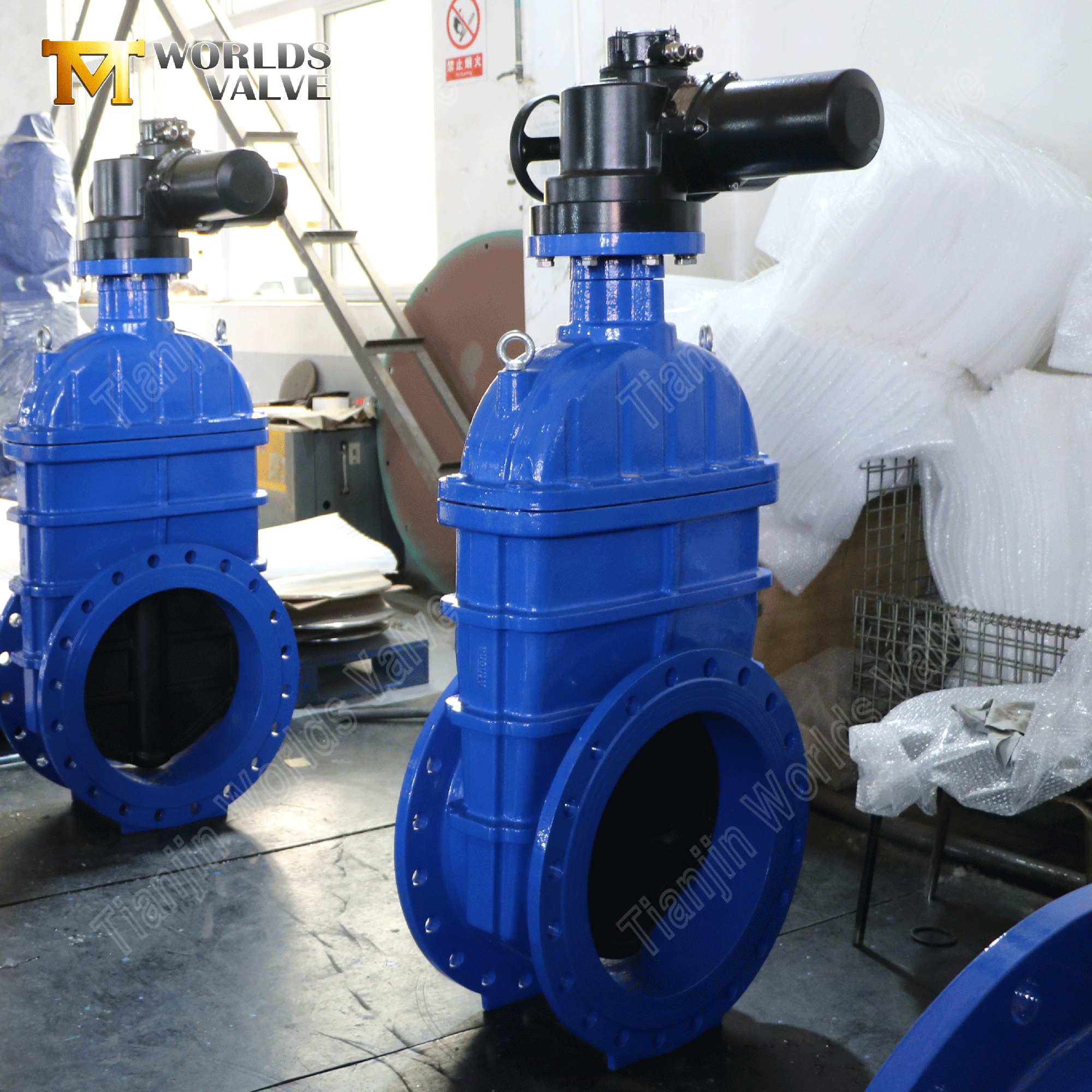

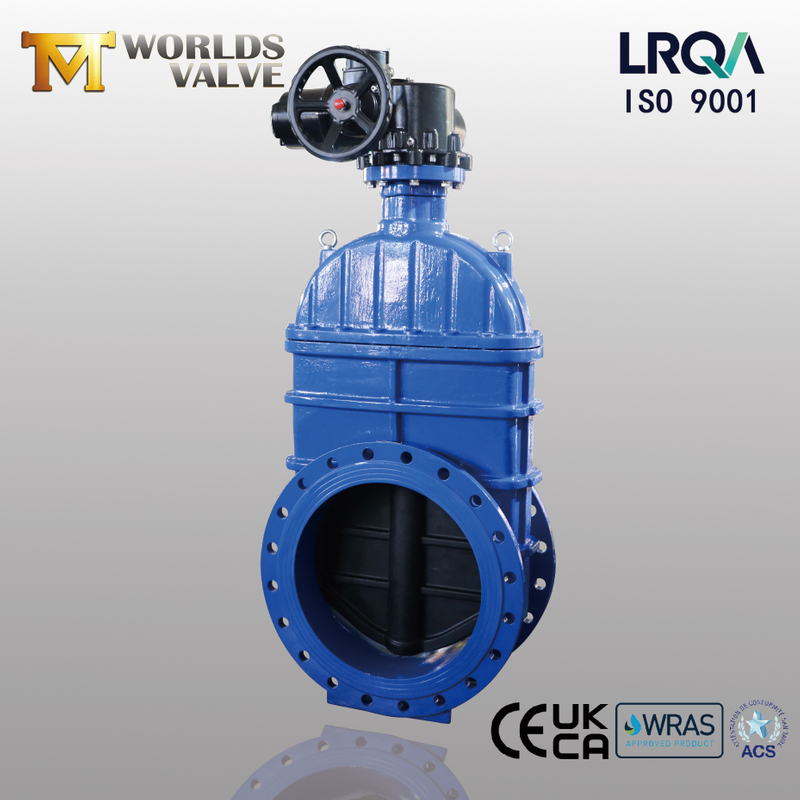

The DN600 Electric Non-Rising Stem Gate Valve with Ductile Iron Body and Resilient EPDM Seat from Tianjin Worlds Valve Co., Ltd. provides a reliable, space-saving solution for automated flow control in large-diameter water and wastewater systems. Its electric actuator enables remote operation, while the resilient seat ensures bubble-tight shut-off. Backed by customizable features and international certifications, this valve is engineered to meet the demands of municipal and industrial infrastructure.
Choose Tianjin Worlds Valve for your large-diameter automated gate valve needs.
Contact us today to discuss actuator specifications, flange standards, and project requirements for a customizedquotation.
