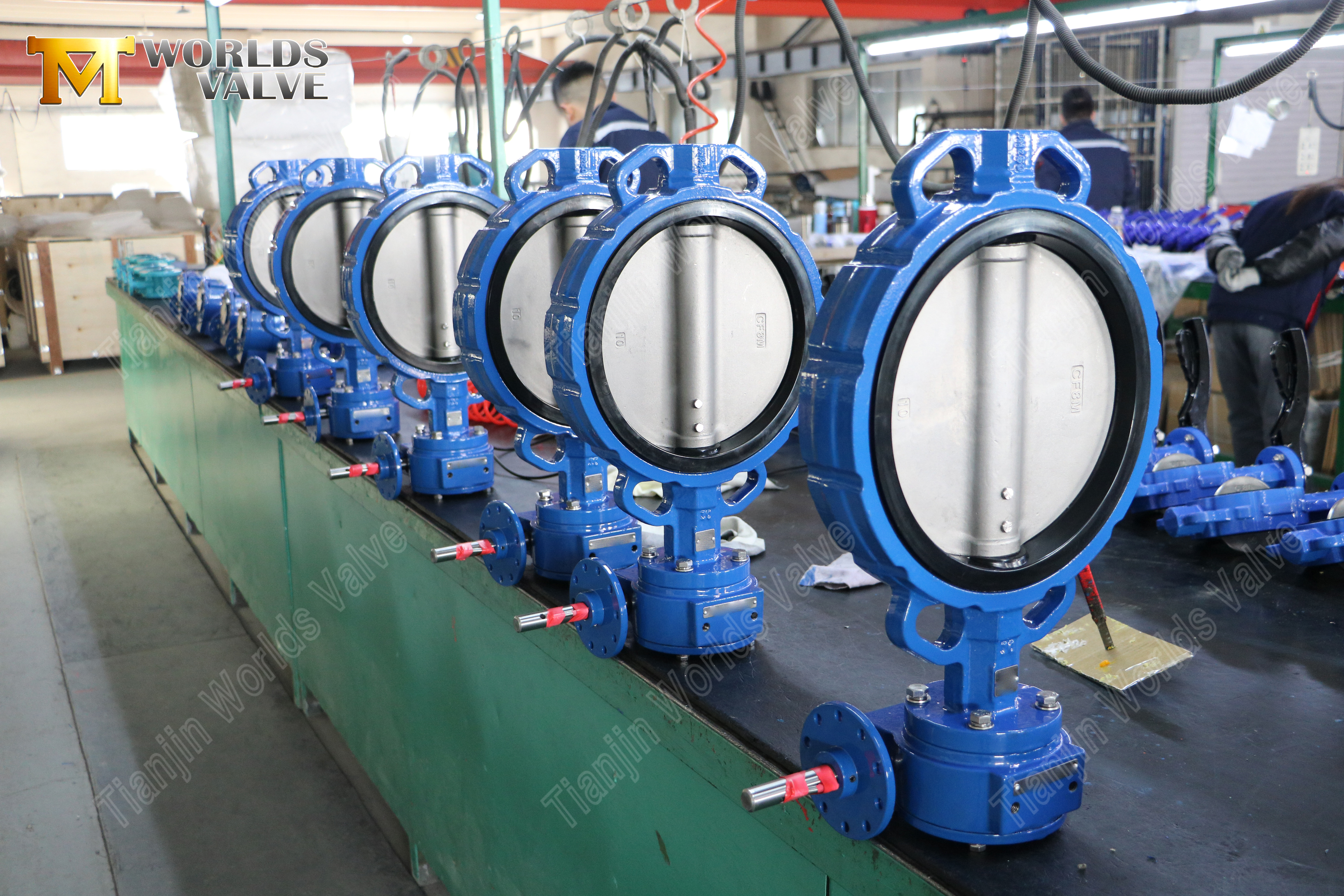

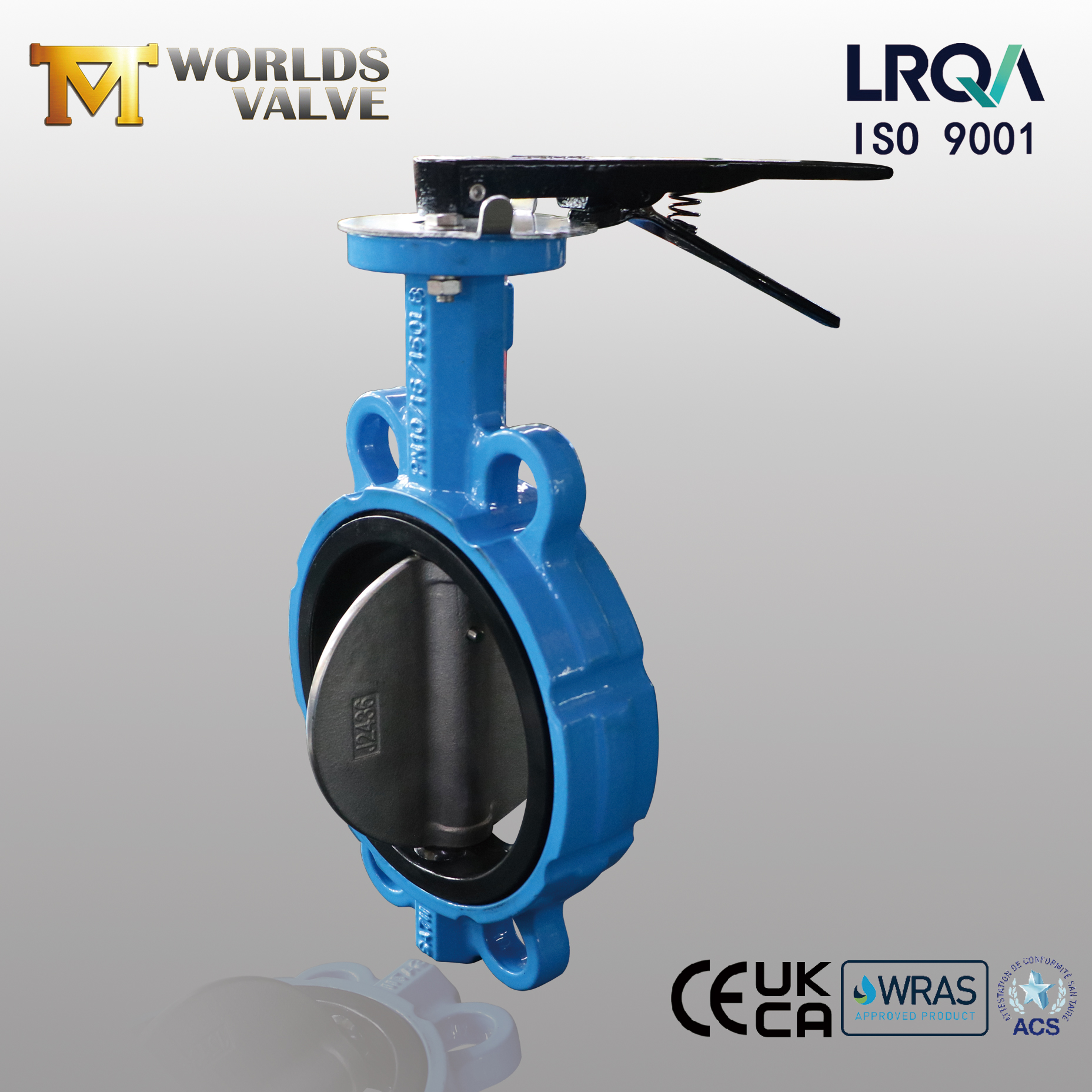

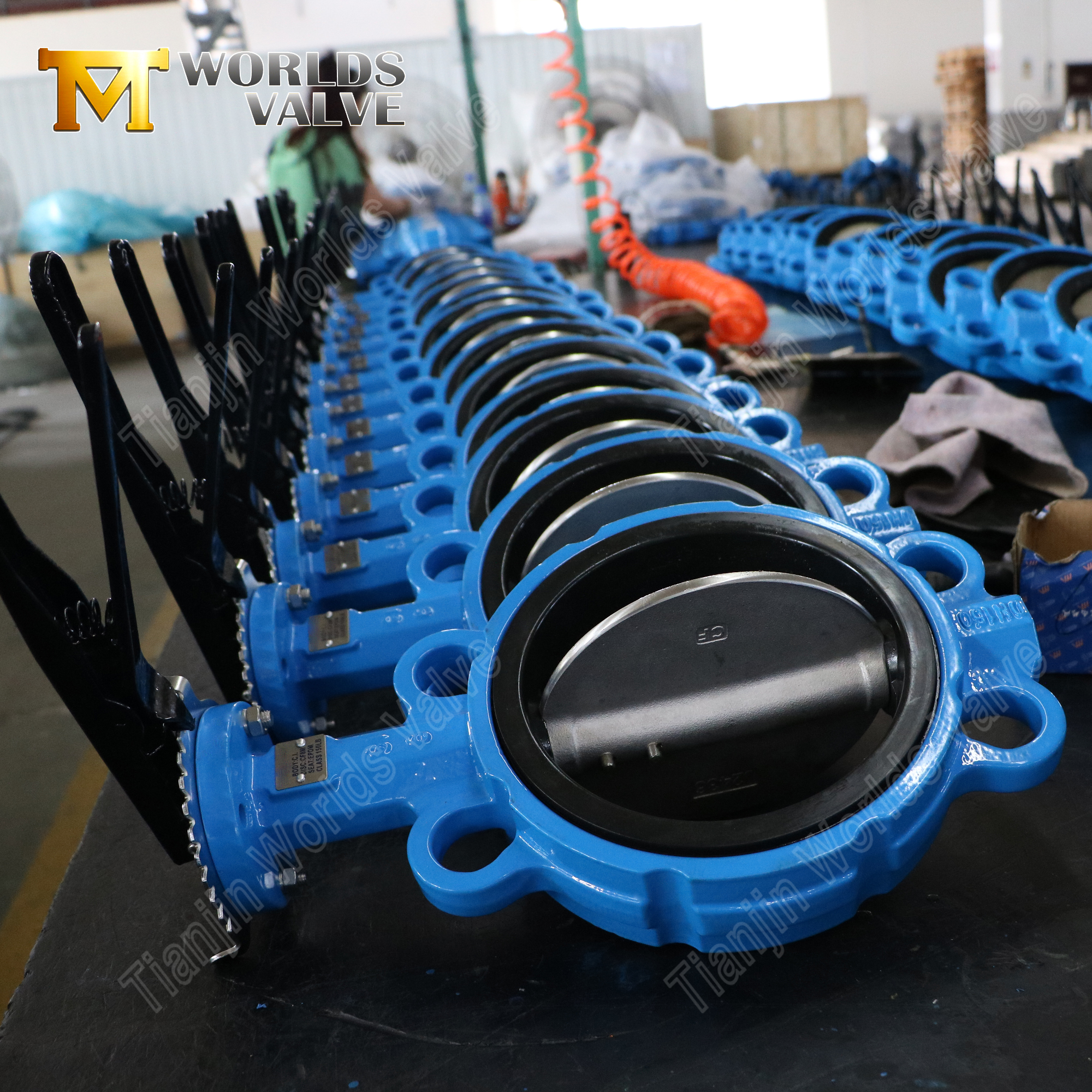

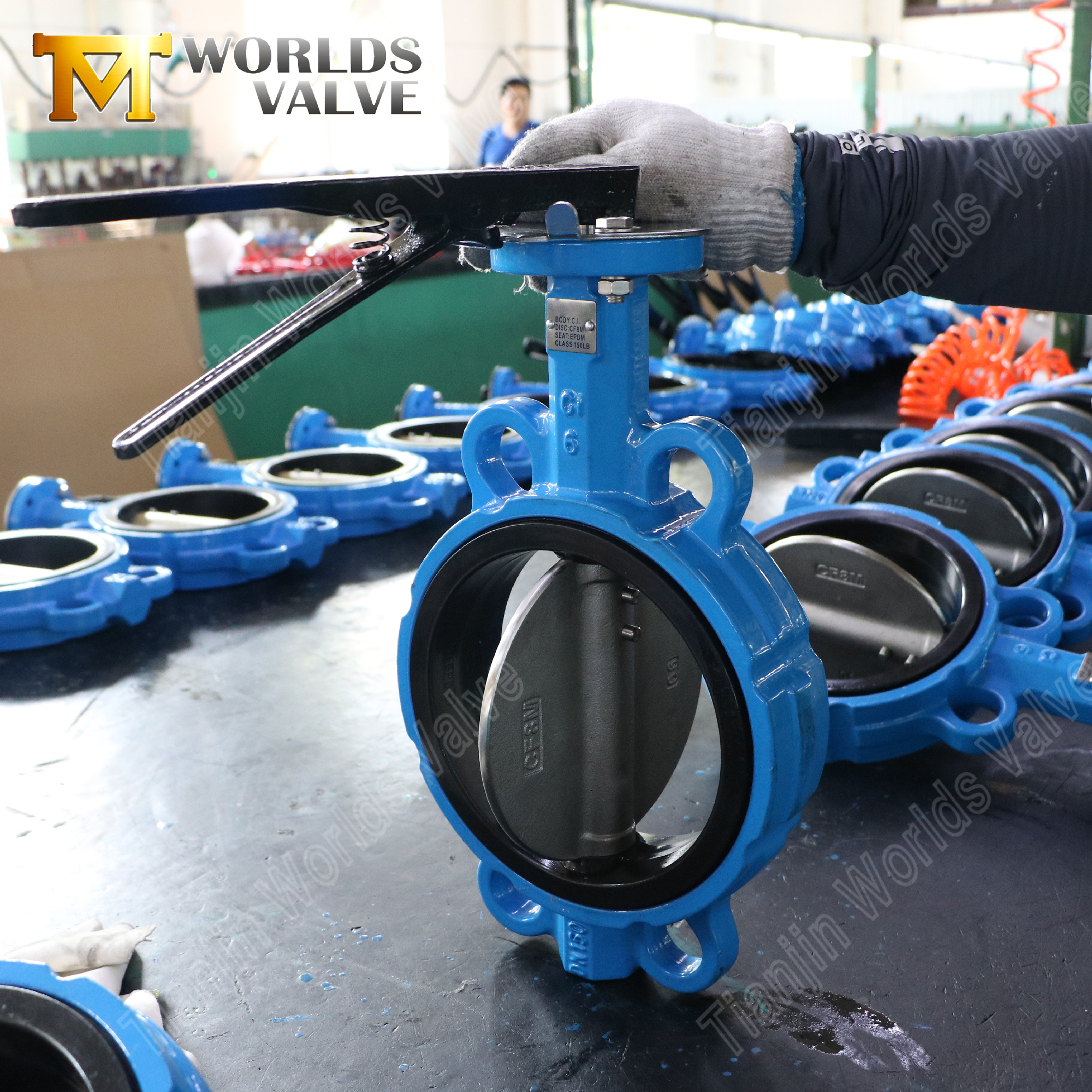

Wafer Butterfly Valve | Gray Iron Body | CF8M Disc | EPDM Seat | Class 150
Tianjin Worlds Valve Co., Ltd.–Your Reliable Source for Durable, Cost-Effective Flow Control
CBF01-TA01 - Detailed Product Info
This model is configured with the following parameters. Please note that every item listed below is customizable to your specific needs.
Parameter | Specification (This Model) | Customization Available |
Body Material | Gray Iron (ASTM A126 Class B) | Ductile Iron (GGG40/500-7), WCB, CF8, CF8M, Duplex, Super Duplex |
Disc Material | CF8M (AISI 316) | CF8 (304), Aluminum Bronze, Duplex, Coated Ductile Iron, PTFE-encapsulated |
Stem Material | SS420 (AISI 420) | SS304, SS316, Monel K500 |
Seat Material | EPDM–Temperature: -20℃ to +120℃ | EPDM, Viton/FKM, PTFE, Hard Back-up Seat (Metal-backed) |
Pressure Rating | Class 150 | PN6, PN10,PN16; PN25; Class 300; JIS 10K/16K |
Size Range | DN50–DN3000 (2″–120″) | Any intermediate size available upon request |
End Connection | Wafer Type | Lug Type, Double Flanged, Grooved End |
Coating | Epoxy Resin, RAL 5015, 250 μm thickness | Any RAL color, custom thickness, anti-corrosion coatings |
Top Flange | ISO 5211 | Customizable for various actuator interfaces |
Operation | Manual | Gear Operator, Electric, Pneumatic, Hydraulic, Chain Wheel |
Lightweight and Space-Saving–The wafer design eliminates integral flanges, reducing overall weight and allowing installation in tight piping layouts.
Fast Installation–Simply center the valve between two standard pipe flanges and tighten the flange bolts. No special tools or complex procedures required.
Lower Cost–With less material and simpler machining than lug or flanged designs, wafer valves offer excellent value for general-purpose applications.
Good Strength for General Service–Gray iron provides adequate mechanical strength for Class 150 service in water, oil, and gas applications.
Excellent Machinability–The material allows precise casting and tight dimensional tolerances, ensuring reliable flange sealing and smooth operation.
Cost-Effective Solution–Gray iron offers an economical material choice for general-purpose industrial applications where high impact resistance is not required.
Superior Corrosion Resistance–CF8M offers excellent resistance to pitting and crevice corrosion, particularly in chloride environments and seawater.
Wide Chemical Compatibility–Suitable for water, wastewater, mild chemicals, acids, and alkalis.
Long Service Life–The corrosion-resistant properties of CF8M ensure extended service life even in aggressive environments.
Excellent Water Resistance–EPDM offers outstanding resistance to water, steam, and outdoor weathering, making it ideal for water supply, wastewater, and HVAC applications.
Replaceable Design–The seat is mechanically retained, allowing replacement in the field without removing the valve from the pipeline–simply loosen the disc, swap the seat, and reassemble.
Wide Temperature Range–Maintains sealing properties from -20°C to +120°C, covering the full range of typical water system operating temperatures.
Thanks to its robust construction and fully customizable material options, this wafer butterfly valve is widely utilized across diverse industries:
Water Supply & Distribution–Municipal water mains, pumping stations, distribution networks.
Wastewater Treatment–Sewage lines, treatment plants, effluent systems.
HVAC Systems–Chilled water, hot water, cooling tower systems.
Fire Protection–Fire water lines, sprinkler systems.
Industrial Processes–General industrial water lines, cooling water, process fluids.
Irrigation–Agricultural and landscape irrigation systems.
1. LRQA-Certified Quality–Our ISO 9001:2015 certification is issued by LRQA, a globally trusted certification body–demonstrating our commitment to continuous improvement and risk management.
2. Wafer Valve Specialists–We have extensive experience manufacturing wafer butterfly valves for water, HVAC, and industrial projects worldwide.
3. Replaceable Seat Expertise–Our field-serviceable seat design means you can swap EPDM seats without removing the valve from the line – reducing downtime and maintenance costs.
4. Full Customization–Materials, flange standards (ANSI, DIN, JIS, BS), coatings (any RAL color), actuators–we build to your spec.
5. 19+ Years Export Experience–Smooth logistics and after-sales support to 50+ countries – including Europe, Americas, Middle East, and Southeast Asia.
6. 100% Traceability–Every valve comes with material certificates and pressure test reports–no exceptions.
7. Quick Turnaround–Dedicated project manager; typical lead time 15–40 days. Factory visits welcome in Tianjin.
Whether you need this 6-inch Class 150 configuration, a different size, automated actuation, or a complete valve package for a large-scale project – we're ready to build to your specification.
Simply send us:
Required size and pressure rating
Media type and operating temperature
Preferred material combination (body / disc / seat)
Actuator type (manual, gear, electric, pneumatic, hydraulic)
Flange standard and drilling (ANSI, DIN, JIS, BS)
Target quantity and destination port
We also welcome factory visits–come see how we manufacture your valves in Tianjin, China.
