CBF02-TU03V
OEM | ODM | WDS
| Quantity: | |
|---|---|

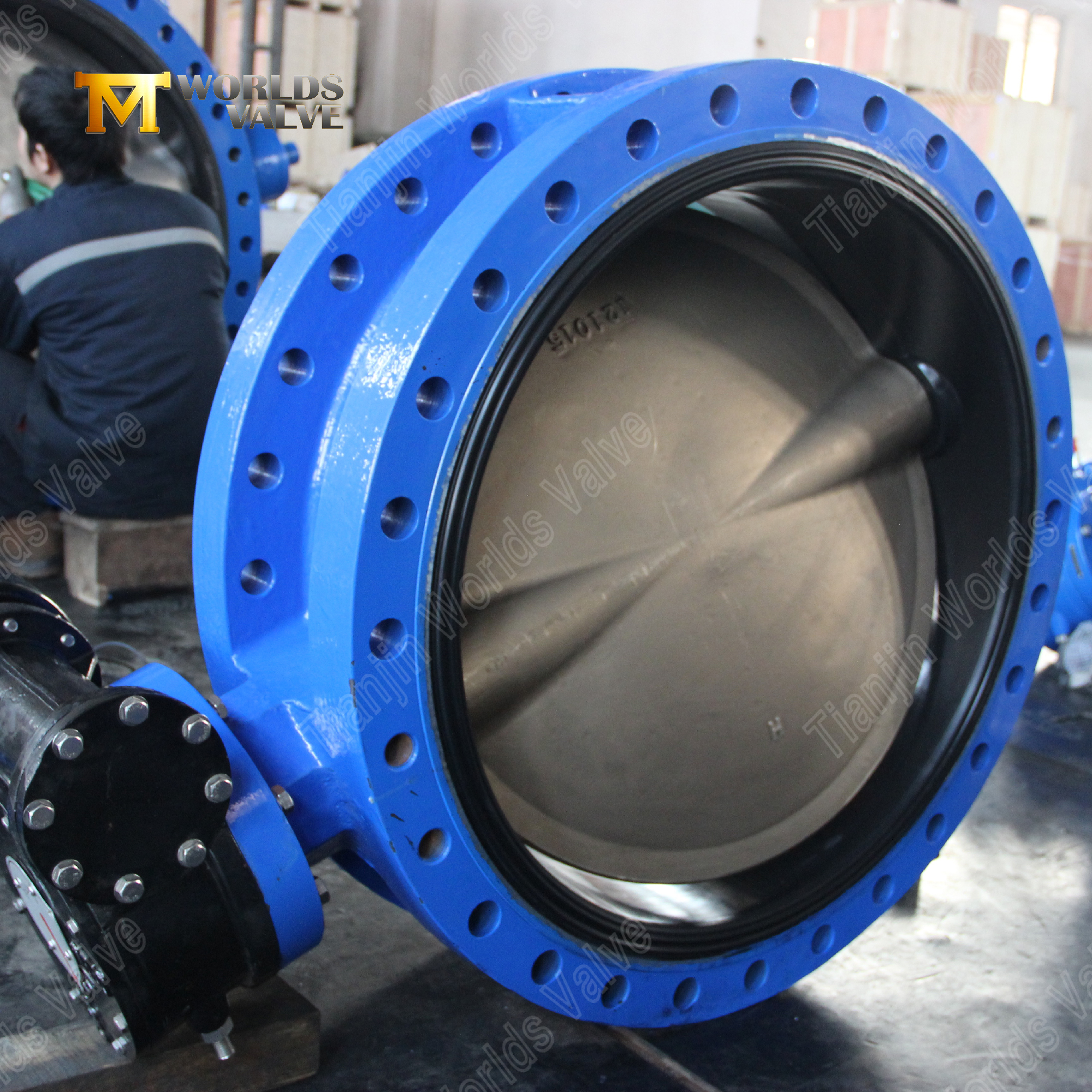

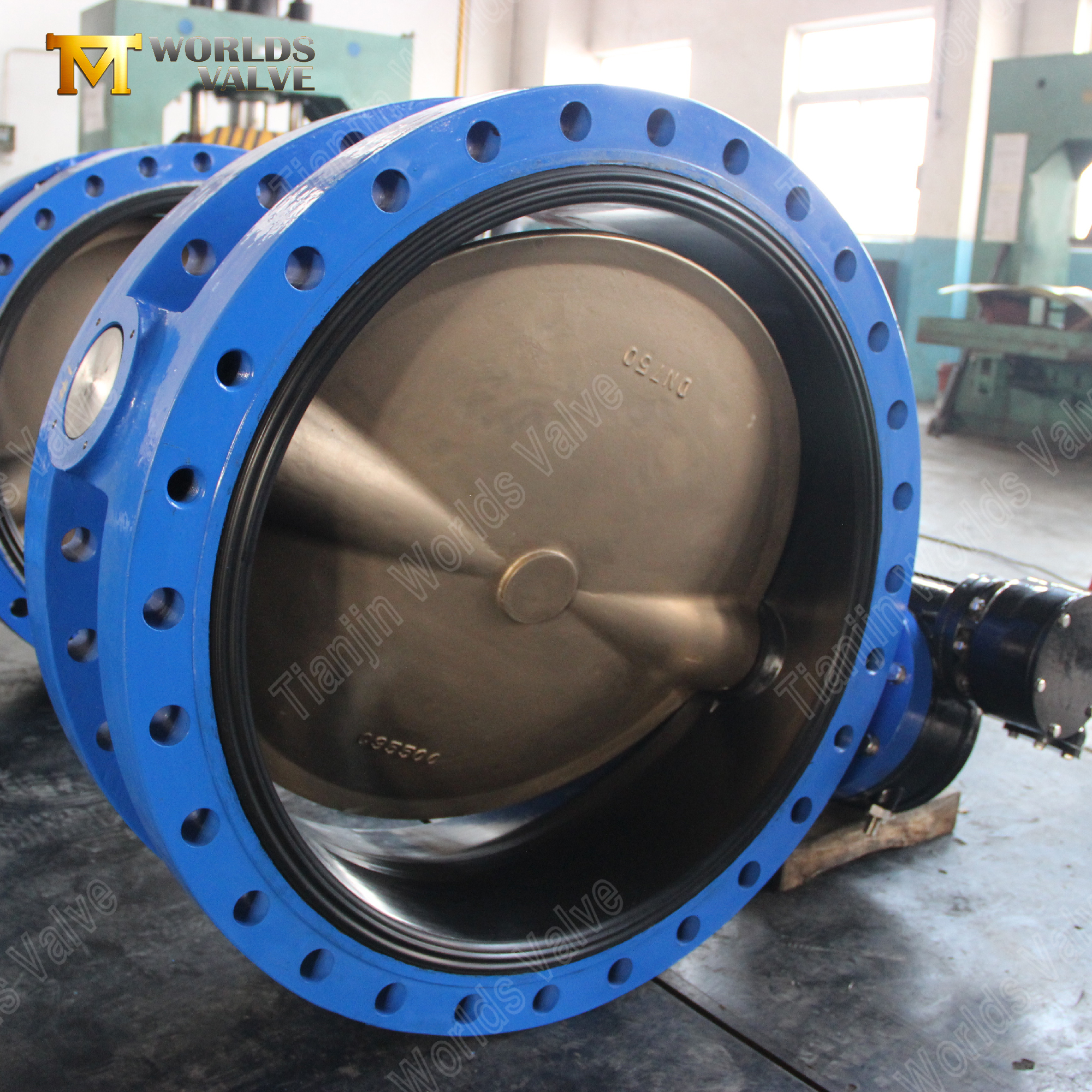

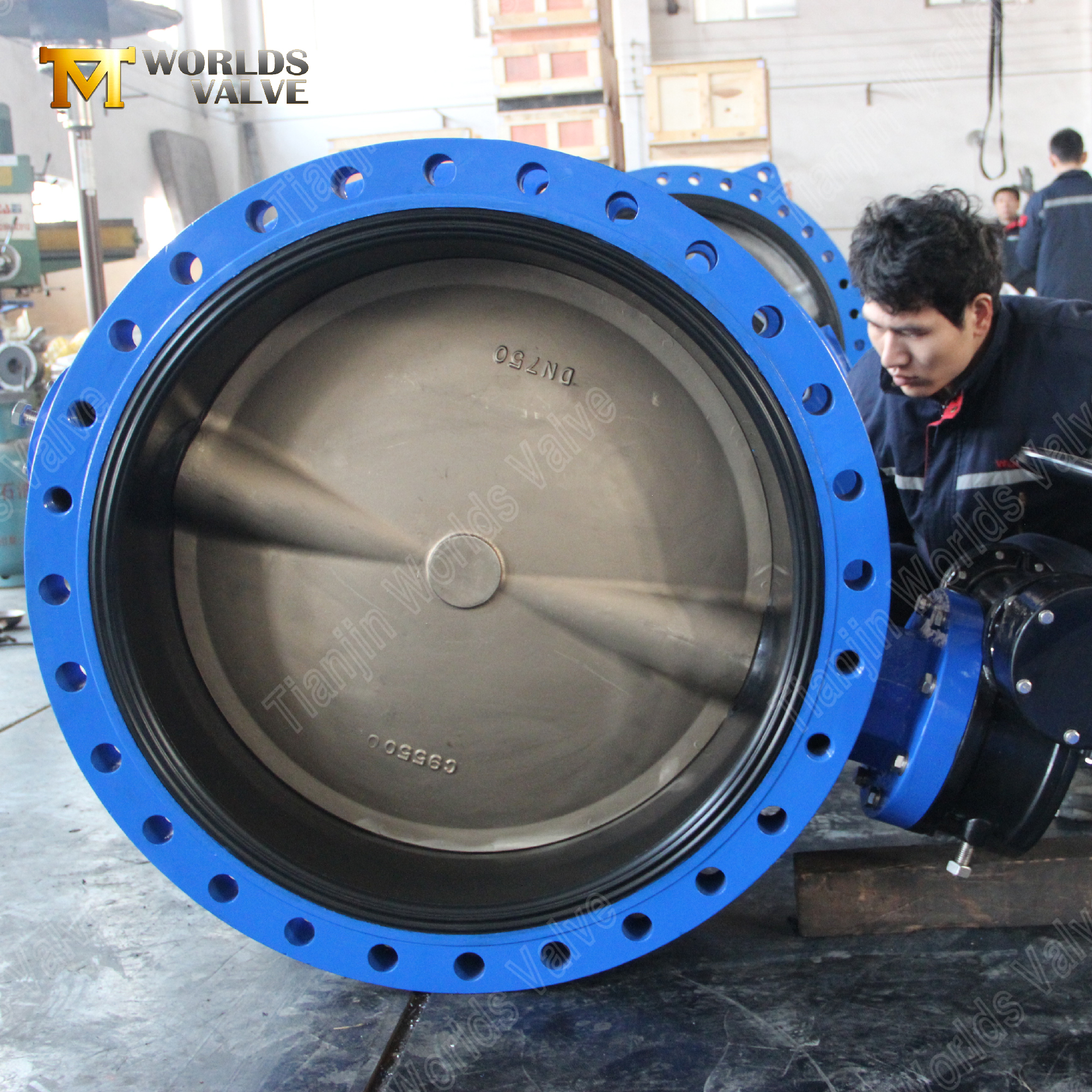

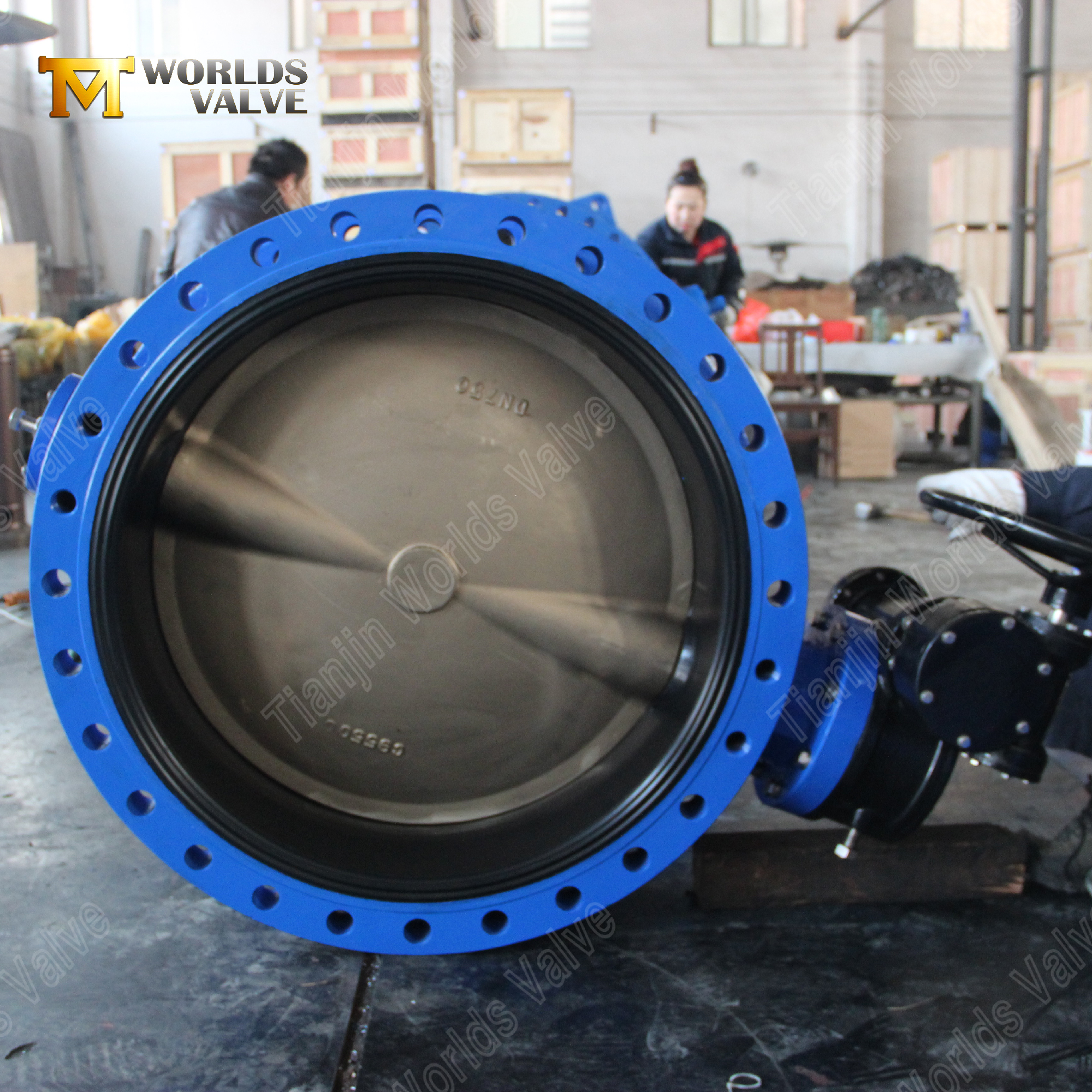

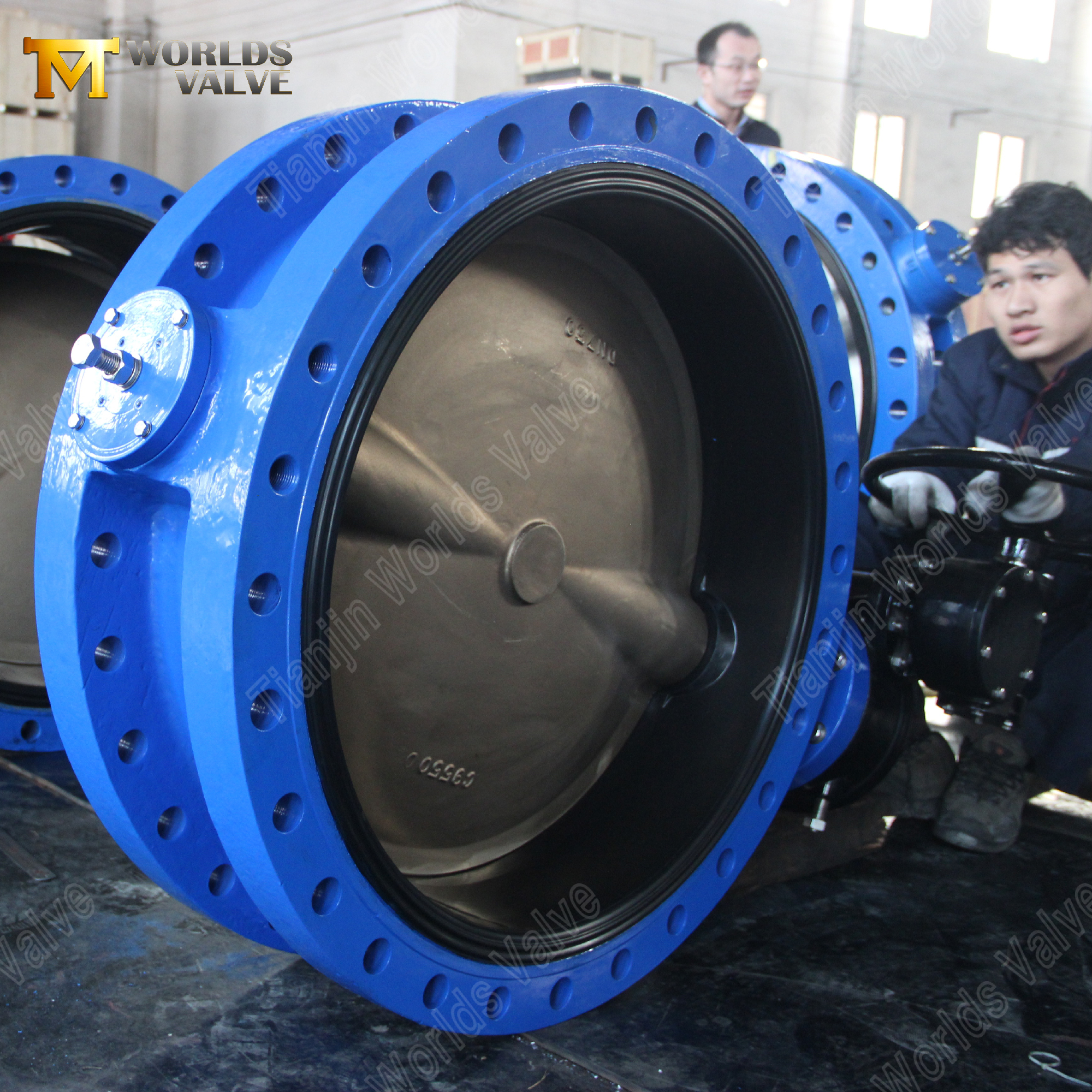

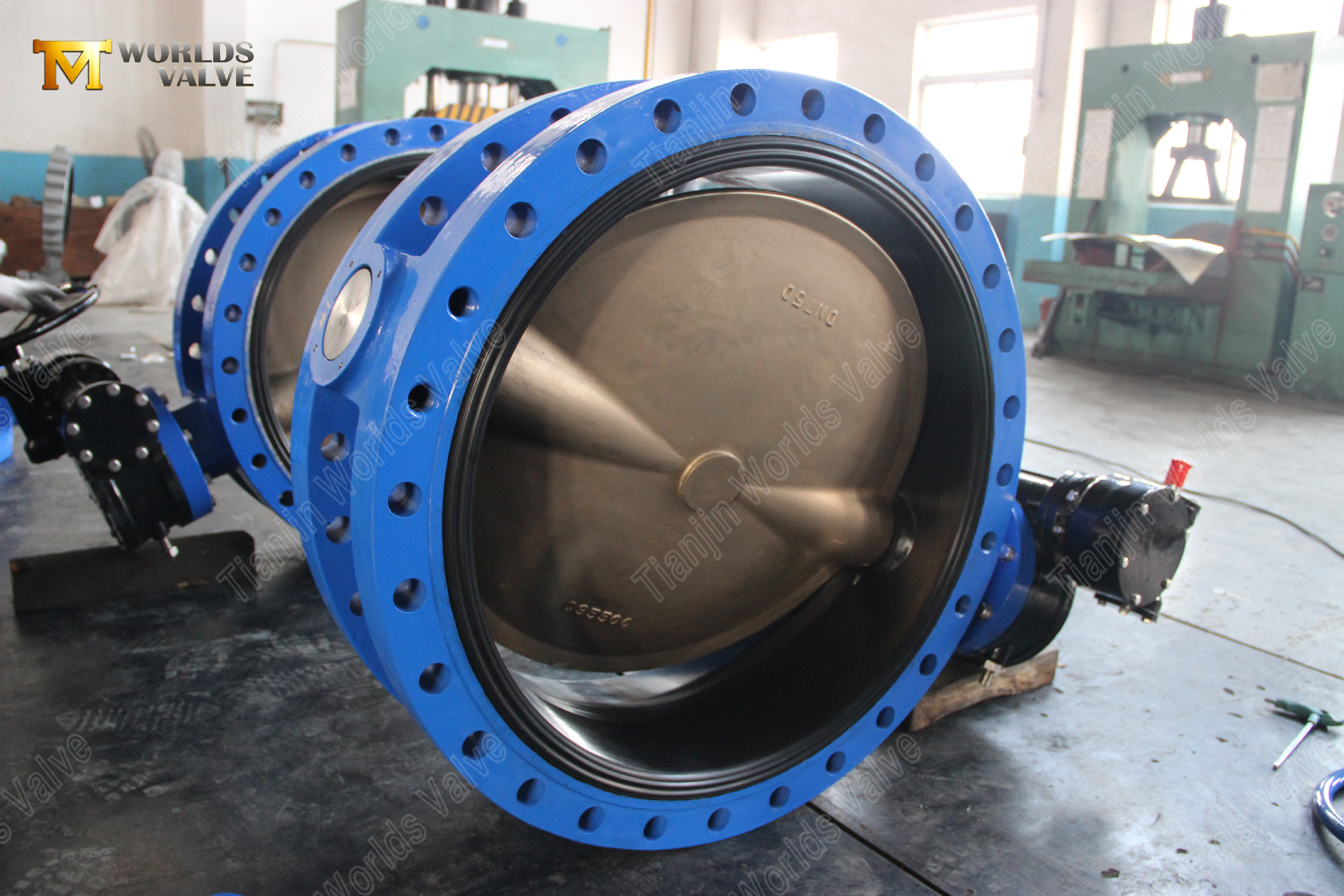

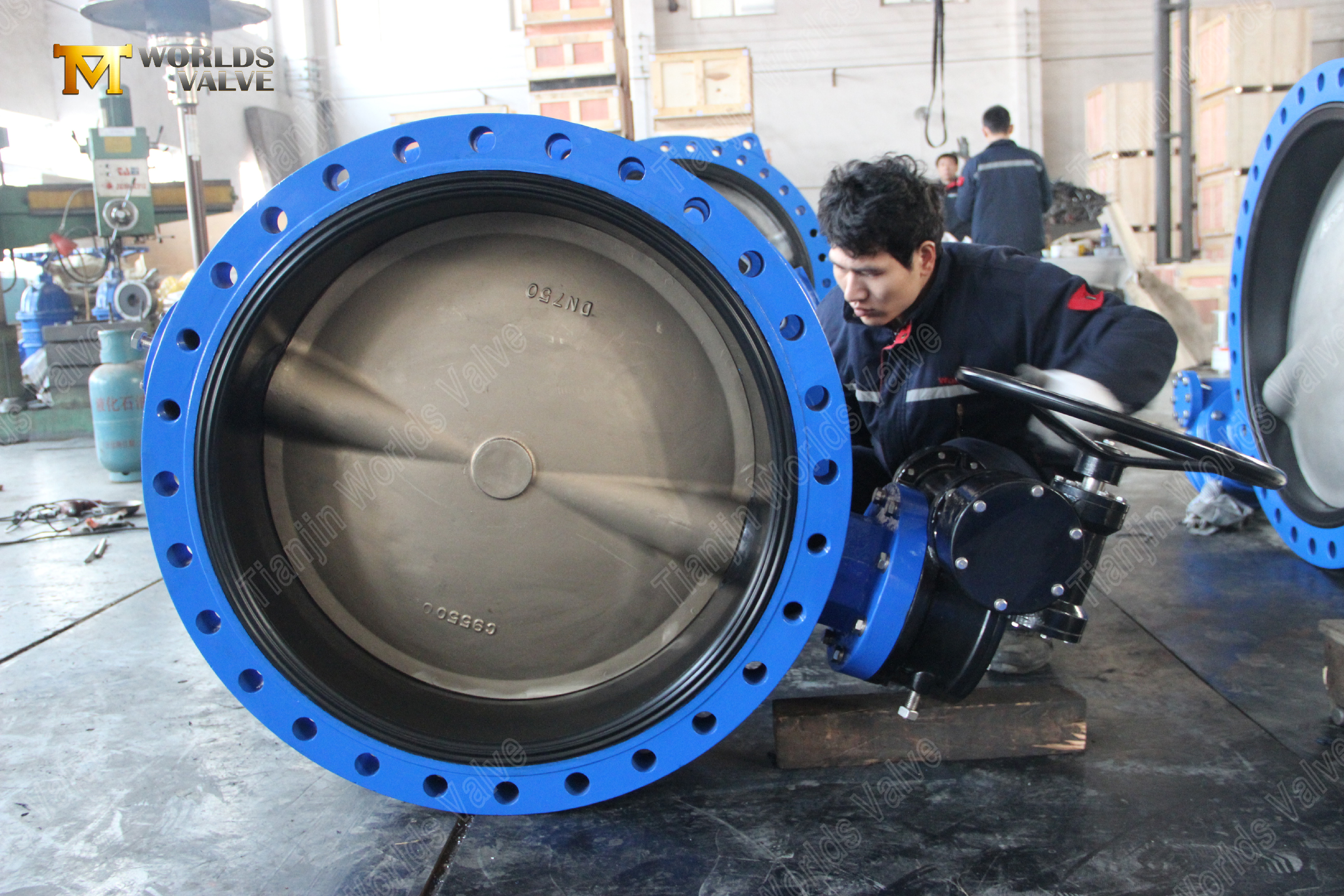

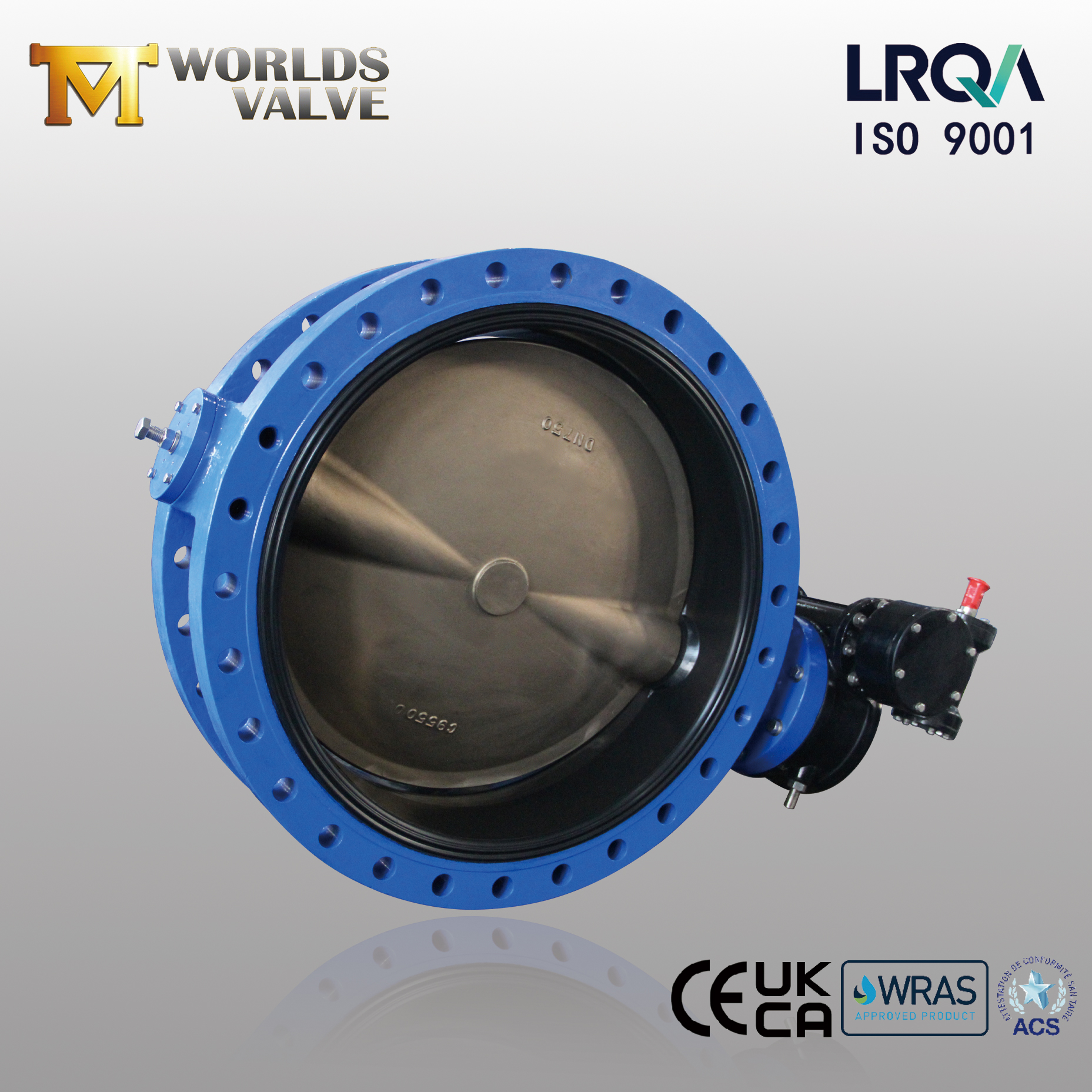

Tianjin Worlds Valve Co., Ltd. presents a 30-inch (DN750) U-type flanged butterfly valve featuring a WCB carbon steel body, a C95500 nickel-aluminum bronze disc, an SS316 stem, and an EPDM seat–all rated for Class 150 service. This large-diameter valve is engineered for demanding marine, seawater cooling, desalination, and industrial applications where corrosion resistance, high strength, and reliable sealing are critical.
Tianjin Worlds Valve Co., Ltd. operates under an ISO 9001 certified quality management system and can supply products with CE, UKCA, WRAS, and ACS certifications upon request. We are a direct China-based OEM/ODM manufacturer, producing valves strictly to customer specifications, providing full documentation (material certificates with mill test reports and pressure test reports) with every order.
30" U-Type Flanged Butterfly Valve | C95500 Aluminum Bronze Disc | SS316 Stem | EPDM Seat | WCB Body | Class 150
Tianjin Worlds Valve Co., Ltd.–Your Reliable Source for Durable, Cost-Effective Flow Control
CBF02-TU03V - Detailed Product Info

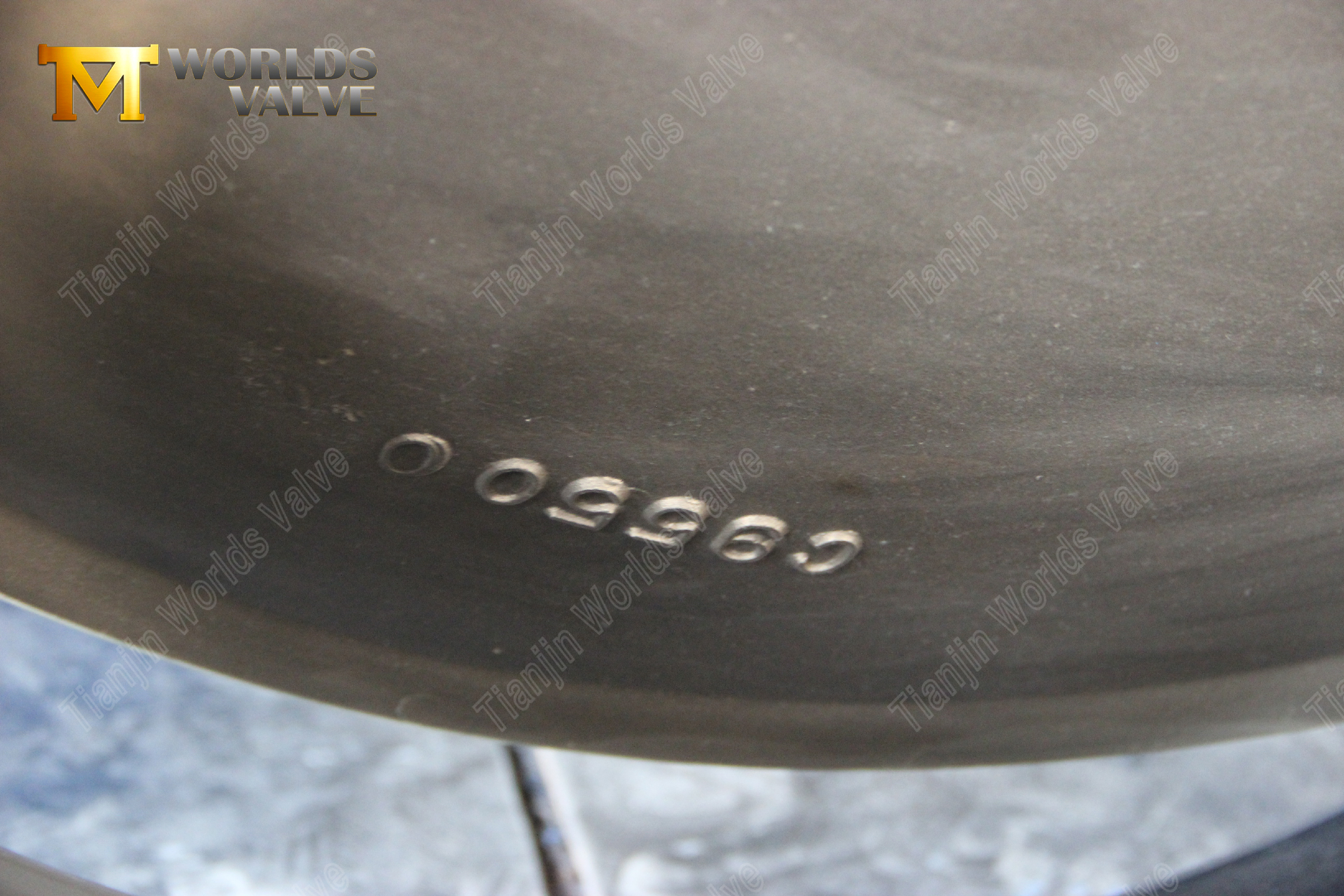

1. C95500 Aluminum Bronze Disc–Superior Seawater & Corrosion Resistance
C95500 nickel-aluminum bronze offers superior saltwater corrosion resistance and is resistant to cavitation and erosion.
Tensile strength range of 90–110 ksi (620–758 MPa)–over twice the strength of standard 316 stainless steel.
Excellent resistance to seawater corrosion, heat, wear, and high‑impact conditions.
Stable mechanical properties at temperatures below 400°C.
Ideal for marine, offshore, desalination, and aggressive chemical environments.
2. U-Type Flanged WCB Body–High Strength & Rigidity
One-piece U-type body design provides high strength and can withstand significant pipeline stress.
WCB carbon steel (ASTM A216 Grade WCB) offers a temperature range of -29°C to +425°C and minimum tensile strength of 485 MPa.
Integral flanged ends provide rigid, leak-proof connections suitable for permanent installations and end-of-line service.
Epoxy coating (any RAL color) provides excellent external corrosion protection.
3. SS316 Stem–Corrosion-Resistant Torque Transmission
SS316 (AISI 316) stainless steel offers excellent resistance to pitting and corrosion in seawater and chemical environments.
Provides reliable torque transmission and long‑term durability in demanding service conditions.
Precision-machined for smooth operation and minimal wear.
4. EPDM Seat–Bubble-Tight Sealing for Water & Seawater Service
EPDM delivers zero leakage (Class VI) sealing for water, seawater, and mild chemical services.
Excellent resistance to water, steam, ozone, and aging–ideal for marine and outdoor installations.
Temperature range: -20℃ to +120℃.
Upgrade options: Viton (FKM) for aggressive chemicals/high temperatures, or PTFE for high-purity/wide temperature range.
5. Large-Diameter Design–Engineered for 30-Inch Service
Designed for high-flow marine cooling water, desalination, and industrial applications.

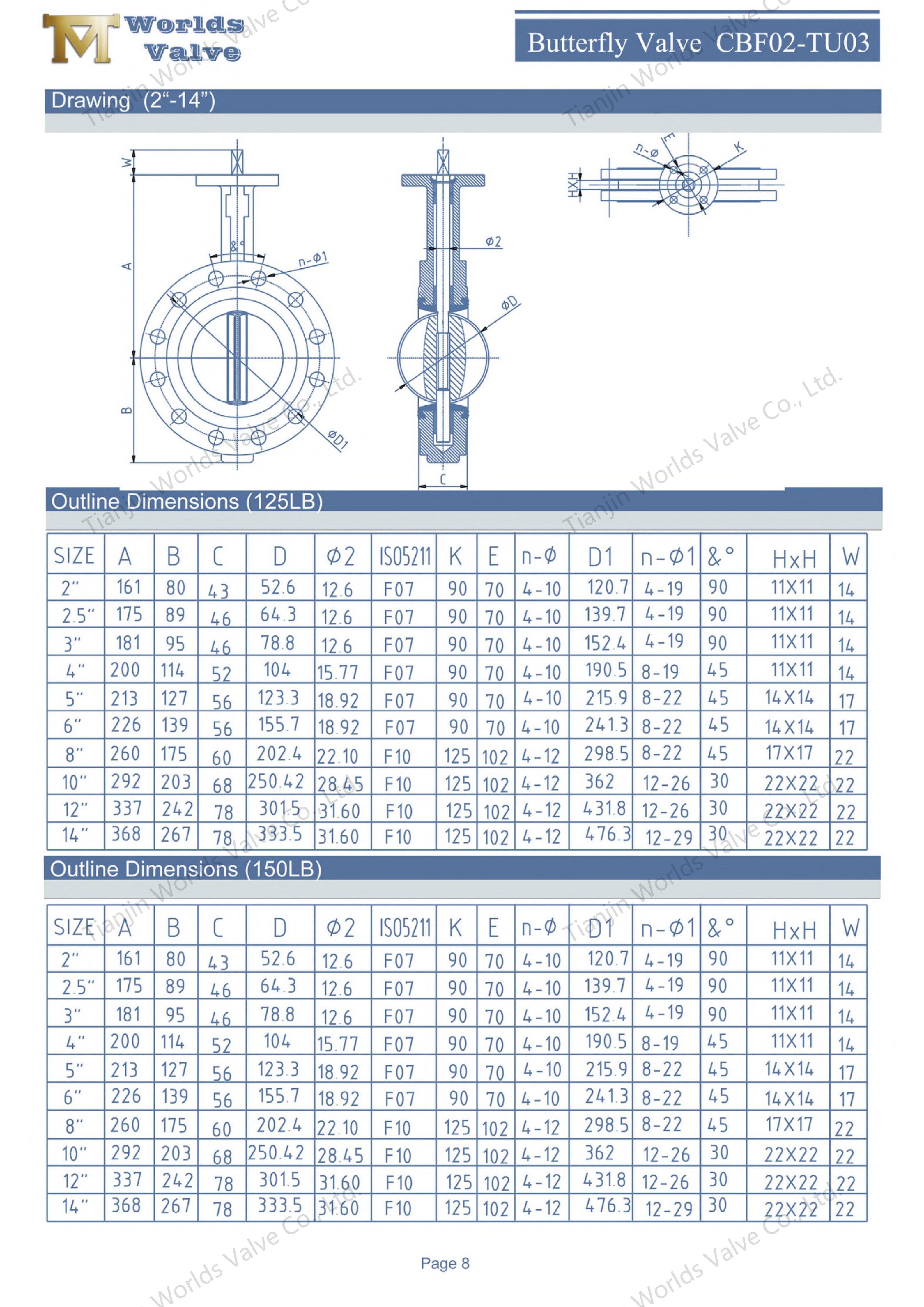

Conforms to API 609 and ISO 5752 face-to-face dimensions.
Flange drilling compatible with ANSI B16.5 Class 150, EN 1092 PN10/PN16, and JIS 10K/16K.
ISO 5211 top flange for direct actuator mounting.
6. Fully Customizable OEM/ODM Solution
Disc materials: C95500 (standard), C95400, CF8, CF8M, duplex, super duplex.
Seat materials: EPDM (standard), NBR, Viton, PTFE.
Body materials: WCB (standard), ductile iron, CF8, CF8M.
Operation: Worm gear (standard for 30″), hand lever, electric actuator, pneumatic actuator.
Flange standards: ANSI B16.5 Class 150, EN 1092, JIS B2220, AS2129.
Certifications: ISO 9001, CE, UKCA, WRAS, ACS available upon request.
Parameter | Available Options |
Valve type | U-Section Butterfly Valve（CBF02-TU03V） |
Nominal size | Sizes Available(DN50-DN1400) |
Disc material | C95500(Aluminum Bronze) |
Seat material | EPDM |
Body material | WCB, Ductile iron (with epoxy coating); CF8, CF8M, AL-B... |
Epoxy coating color | Customer-selectable (any RAL or custom color) |
Pressure rating | PN10 / PN16 / Class 150LB/ JIS5K/10K (customizable) |
Top flange | ISO 5211 optional for actuator mounting |
Applicable Media | Acids, alkalis, solvents, seawater, brine, high-purity water, chemicals |
Direct OEM/ODM Manufacturer–We are a direct OEM/ODM manufacturer with our own ISO 9001 certified factory–not a trading company. Every butterfly valve can be manufactured to your exact specifications..
Material Expertise–Our C95500 aluminum bronze disc and SS316 stem combination delivers exceptional corrosion resistance for seawater, marine, and desalination applications–over twice the strength of standard 316 stainless steel.
U-Type Body Design–The one-piece U-type body provides high strength and can withstand significant pipeline stress, making it ideal for large-diameter, high-flow systems.
Large-Diameter Manufacturing Capability–Our manufacturing experience includes valves up to DN1400 (56 inches), with rigorous quality control and testing for large-diameter products.
Certified Quality–ISO 9001 certified with CE, UKCA, WRAS, and ACS certifications available upon request to meet global market requirements.
Full Documentation–Material certificates (mill test reports) and pressure test reports provided with every order.
Global Export Experience–Supplying valves to over 50 countries with reliable logistics and technical support.
We invite you to contact us for a competitive quotation or to arrange a visit to our factory. Our engineering team is ready to discuss your specific media, temperature, and pressure requirements–whether you need a standard 30-inch Class 150 U-type flanged butterfly valve or a fully customized solution with special materials or actuation.
