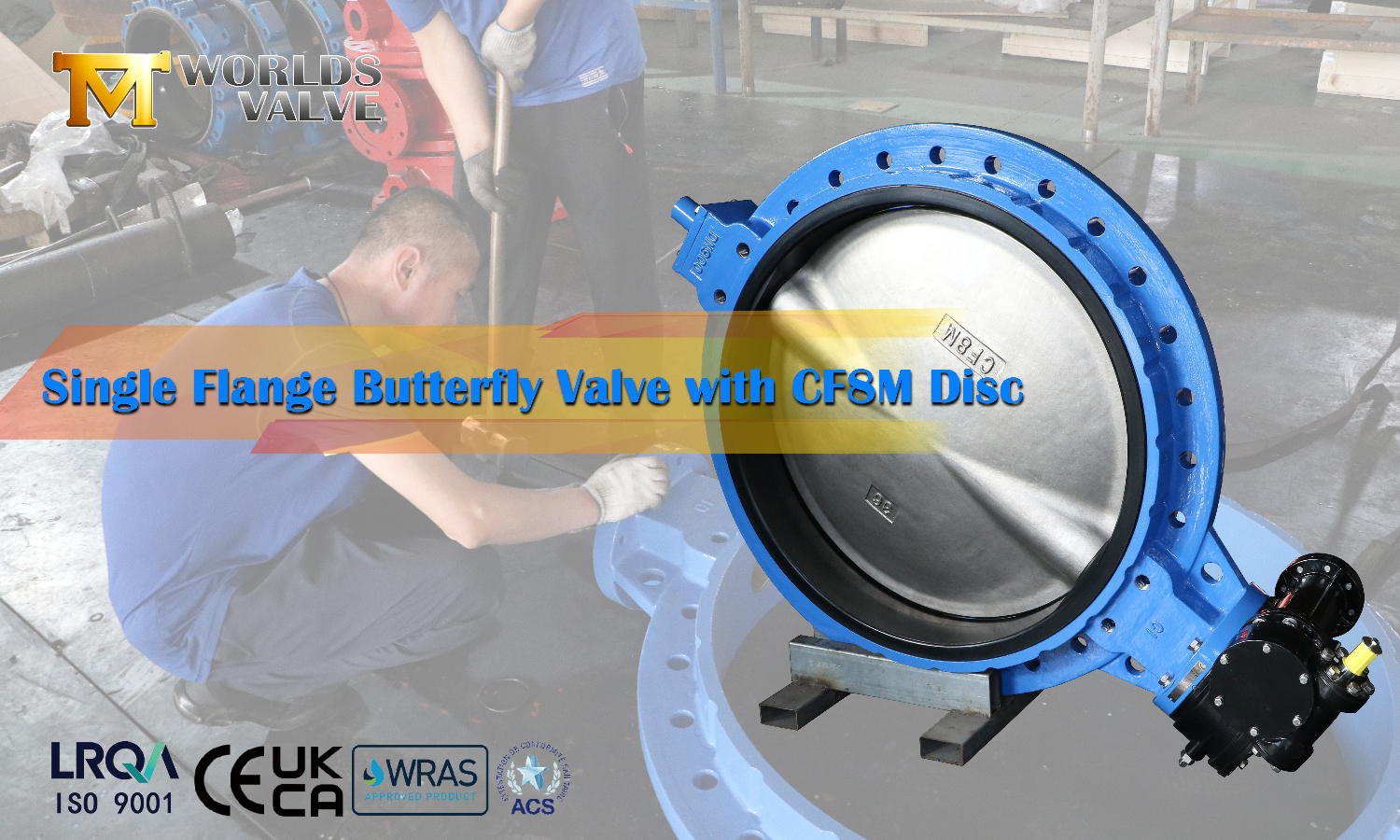

Single Flange CI Butterfly Valve with CF8M Disc: Cost-Effective Corrosion Resistance for Heavy-Duty Applications

Key features:

Design:Single Flange CI Butterfly Valve with CF8M Disc

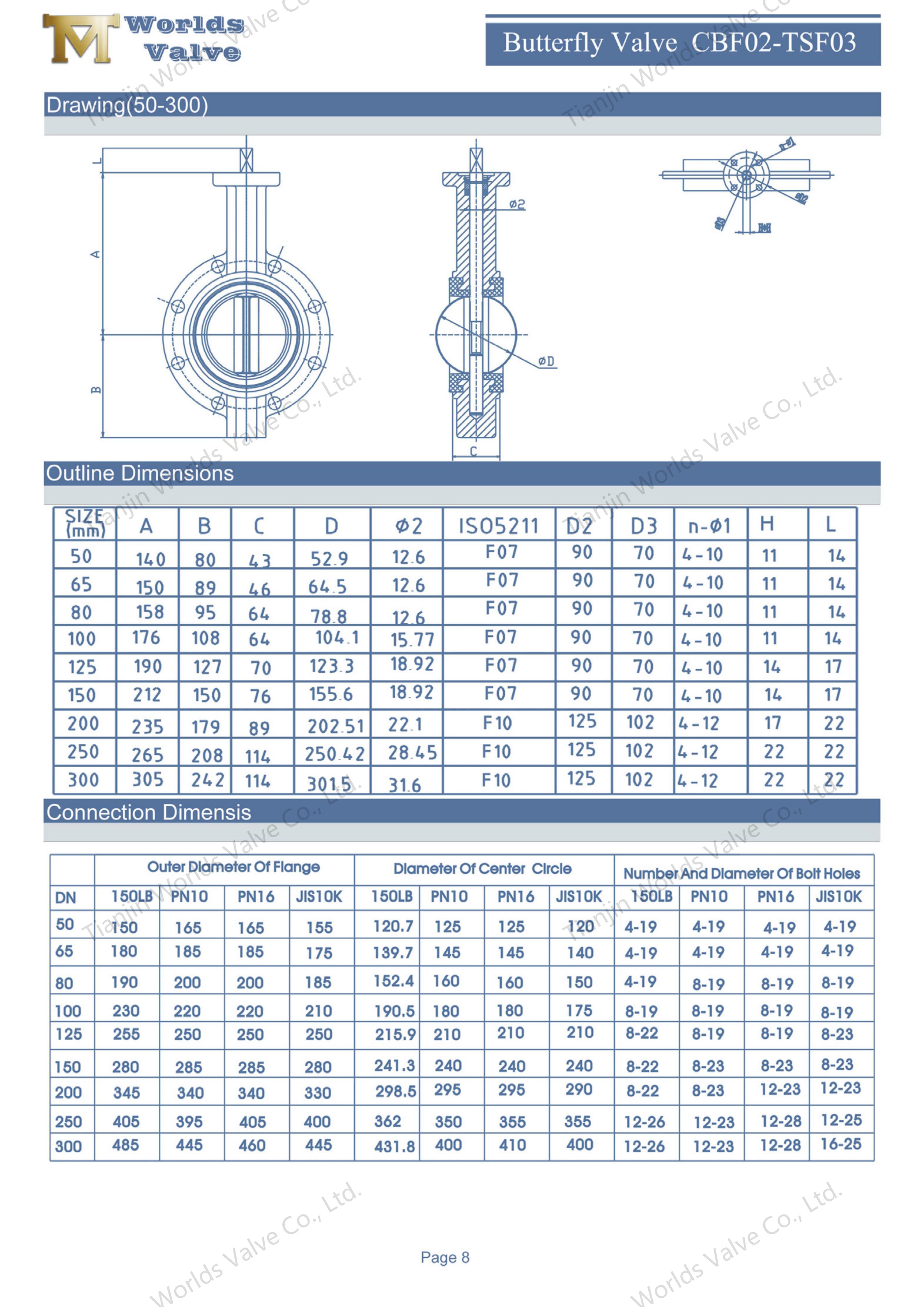

Type: CBF02-TSF03 Maintenance and Operation DOWNLOAD

Size: DN900

Body material: CI (CAST IRON)

Seat: EPDM

Disc:CF8M

Pressure rating: PN10

Operating temperatures: -20℃—120℃

Structure: Single Flange

Driving method: Worm Gear

The Single Flange CI Butterfly Valve with CF8M Disc combines the strength and economy of cast iron with the superior corrosion resistance of a stainless steel disc, delivering reliable performance in demanding water and moderate chemical services. Engineered for durability and ease of maintenance, this valve is designed to handle abrasive and corrosive media where full stainless steel valves may be cost-prohibitive. Its key features include:

1.Robust Cast Iron Body: Provides high mechanical strength, impact resistance, and cost-effectiveness for heavy-duty industrial applications, with optional epoxy coatings for enhanced corrosion protection.

2.CF8M (SS316) Stainless Steel Disc: The disc material offers excellent resistance to corrosion, pitting, and chemical attack, ensuring long-term reliability in water, mild chemicals, and saline environments.

3.Single Flange Design: Facilitates easy installation and removal from the pipeline, reducing downtime during maintenance. The flange connection ensures a secure, leak-free fit with pipeline flanges.

4.Bubble-Tight Sealing: Features a resilient seat (EPDM, Nitrile, or Viton) compatible with a wide range of media, providing bidirectional zero-leakage shut-off and low operating torque.

5.Operational Flexibility: Compatible with manual handles, gear operators, or actuators (pneumatic/electric) for automated control, making it suitable for diverse operational requirements.

Key Advantages:

Cost-Effective Solution | Superior Corrosion Resistance (CF8M Disc) | Easy Maintenance & Installation | Robust Construction | Leak-Free Performance | Wide Media Compatibility | Optional Epoxy Coating.

Ideal Applications:

Water Treatment Plants, Cooling Water Systems, HVAC, Industrial Water Supply, Chemical Processing (mild acids/alkalis), Mining and Slurry Applications, and General Industrial Services.

Meeting Your Specific Needs:  dekai@worldsvalve.com
