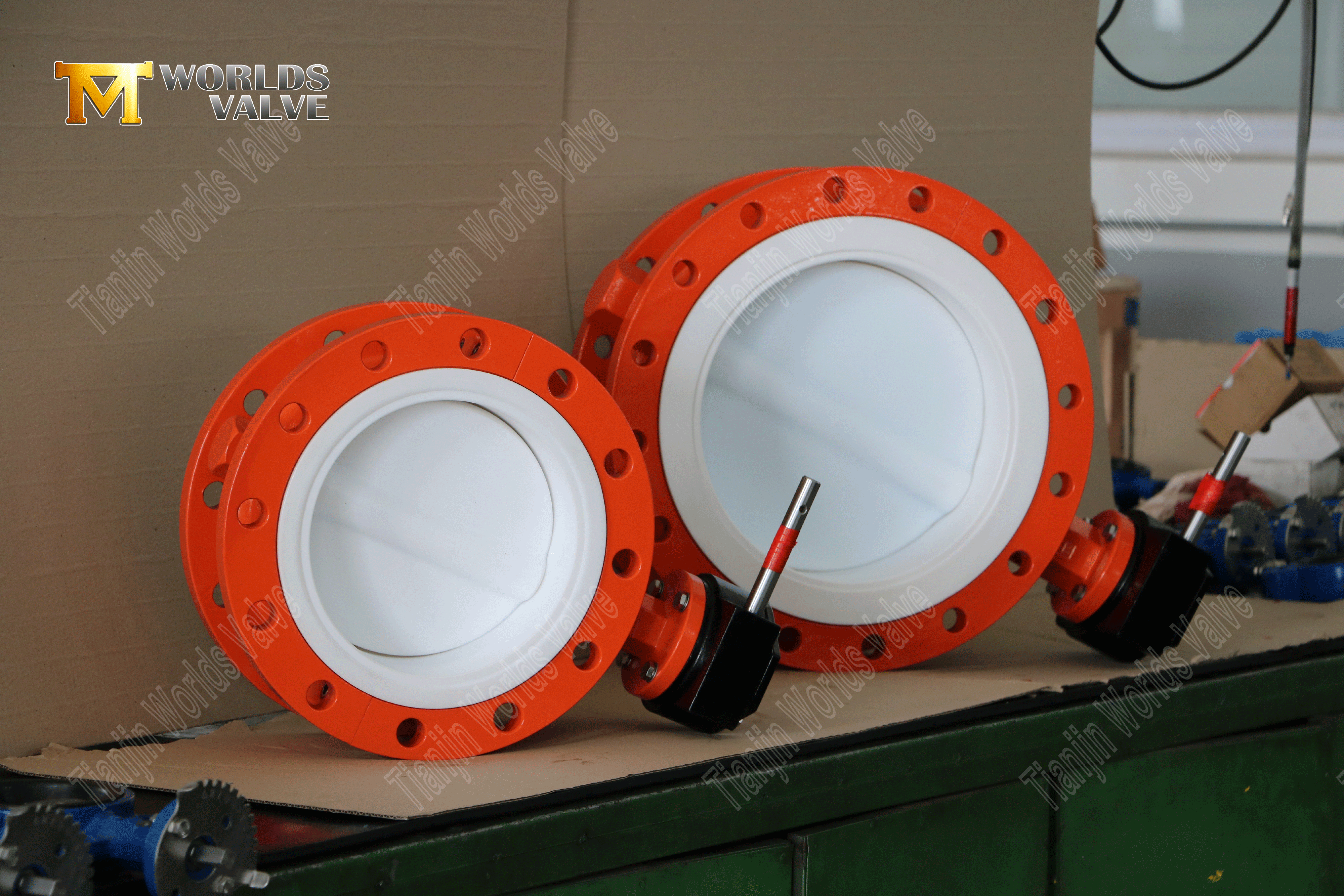

Design:PTFE Coated Seat & Disc Flange Type Butterfly Valve
Type: CBF04-TF01 OPERATION AND MAINTENANCE DOWNLOAD
Size: DN50-DN600
Body material: WCB
Seat: PTFE (Teflon)
Disc: PTFE (Teflon)
Pressure rating:
DN50-DN250 PN16
DN300-DN600 PN10
Operating temperatures: -35℃—200℃(depending on pressure, medium and material)
Structure: Flanged Type
The PTFE Coated Seat & Disc Flange Type Butterfly Valve delivers exceptional performance in handling highly corrosive and ultra-pure media through its advanced PTFE coating technology. This specialized valve combines the structural strength of a flange-type body with the superior chemical inertness of PTFE, making it an ideal solution for chemical processing, pharmaceutical, and food-grade applications where contamination must be prevented.
1. Complete PTFE Protection
- Both seat and disc fully coated with PTFE for maximum chemical resistance
- Excellent resistance to strong acids, alkalis, and organic solvents
- Suitable for temperatures up to 200°C (392°F)
2. Flange Type Reliability
- Robust flange design ensures secure pipeline connection
- Compatible with ANSI, DIN, JIS standard flanges
- Withstands higher pressure ratings compared to wafer-type valves
3. Bubble-Tight Sealing
- PTFE-to-PTFE seating surface ensures zero leakage
- Maintains sealing integrity in both flow directions
- Suitable for vacuum service applications
4. Non-Stick & Ultra-Smooth Surface
- Prevents material buildup and contamination
- Ideal for sanitary and high-purity applications
- Easy to clean and maintain
5. Corrosion-Free Fluid Path
- Complete isolation of media from metal components
- Prevents galvanic corrosion and product contamination
- Maintains fluid purity throughout service life
- Chemical and Pharmaceutical Processing
- Food and Beverage Production
- Ultra-Pure Water Systems
- Semiconductor Manufacturing
- Acid and Alkali Handling Systems
Customizable seat and lining materials
Full compliance with international standards
OEM/ODM support with third-party certification support
Global supply capability with after-sales technical service
Manufactured under ISO 9001 quality standards with full material certification and pressure testing documentation. Available with customized coating thickness and flange standards to meet specific project requirements.
