Lug Butterfly Valve – NBR Seat, CF8M Disc, OEM Manufacturer

Product Overview

A lug butterfly valve is a quarter-turn flow control device with threaded inserts on both sides of the body, allowing each side to be bolted independently to pipe flanges. This design enables dead-end service–the valve can be removed from one side of the pipeline while the other side remains pressurized, making maintenance isolation faster and safer.

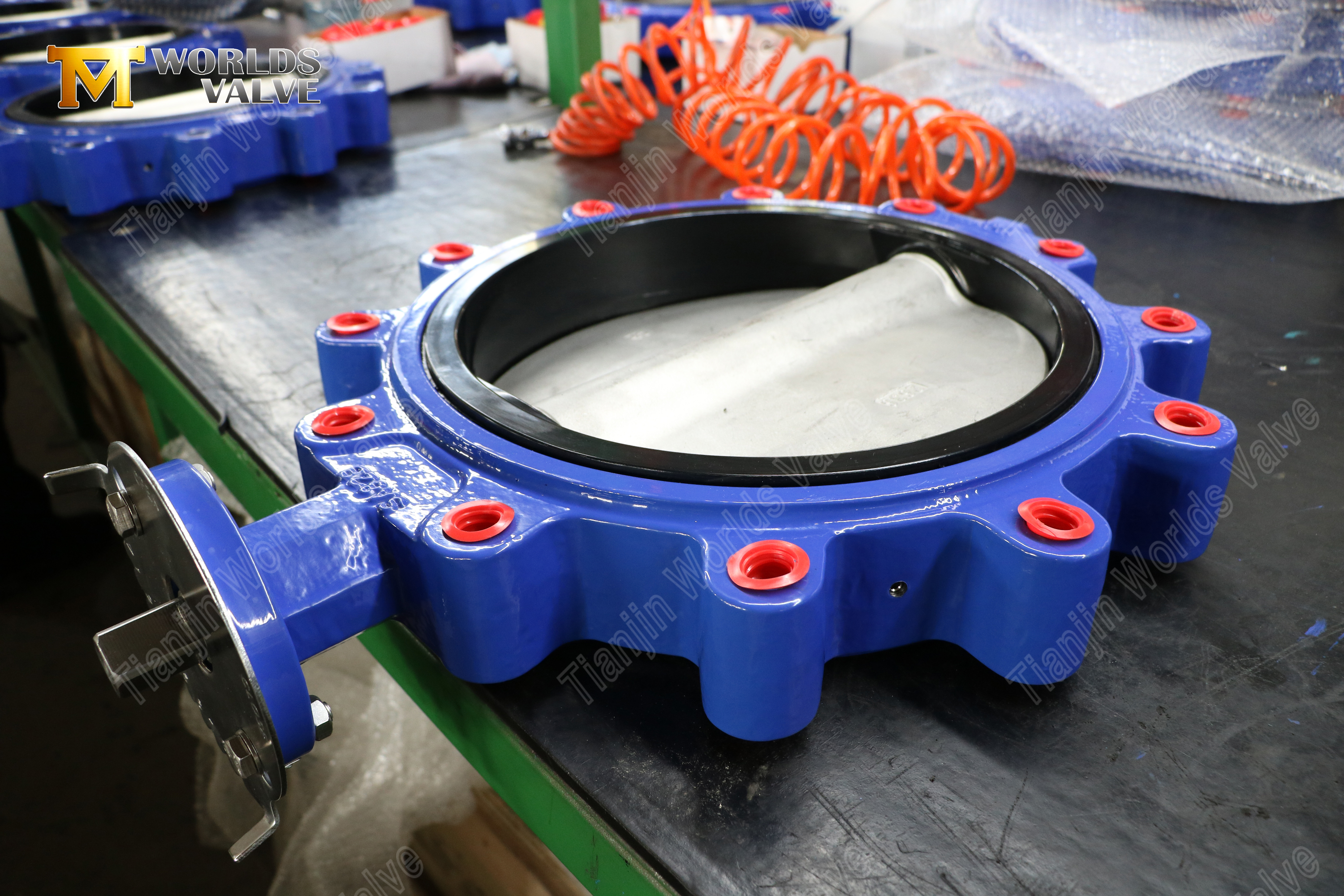

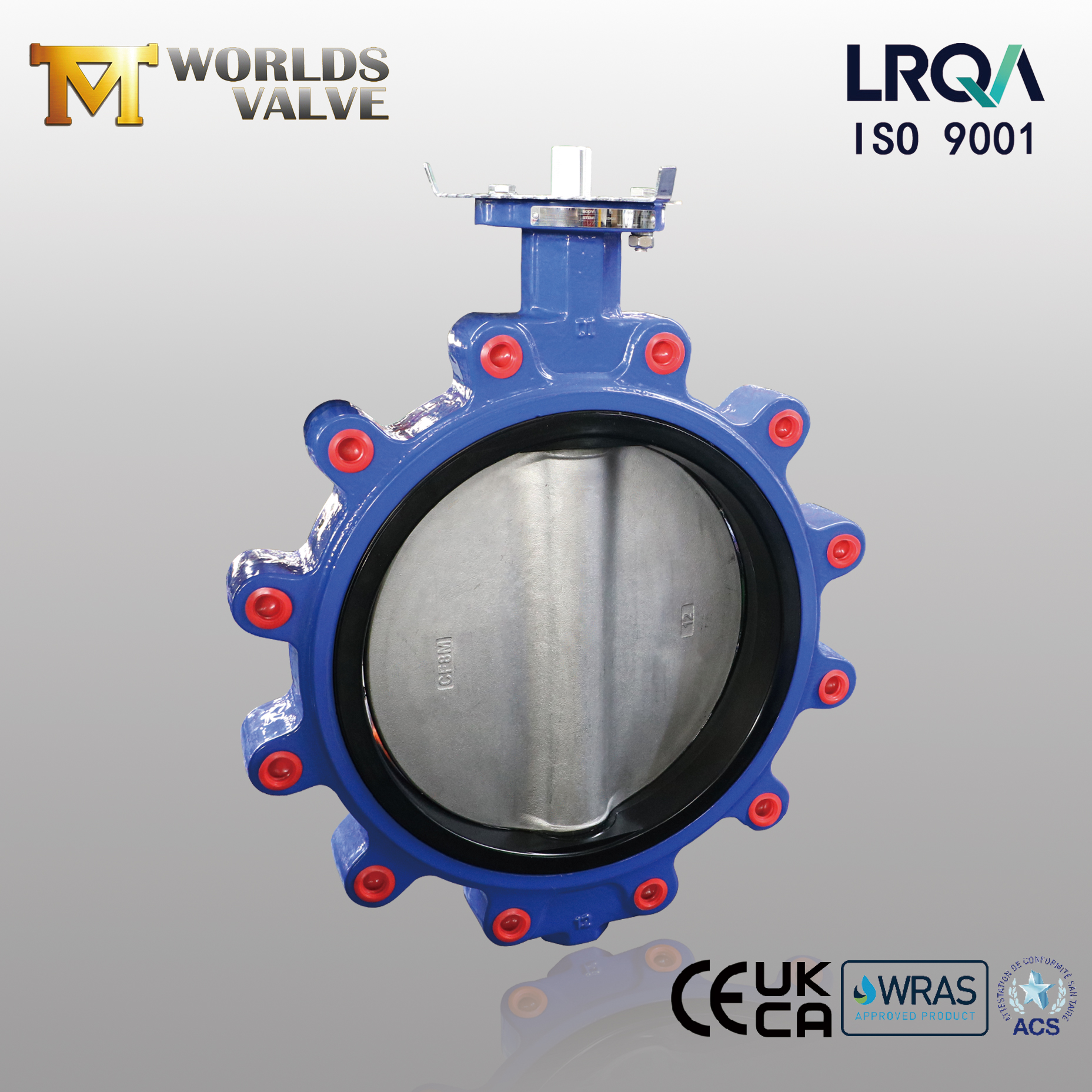

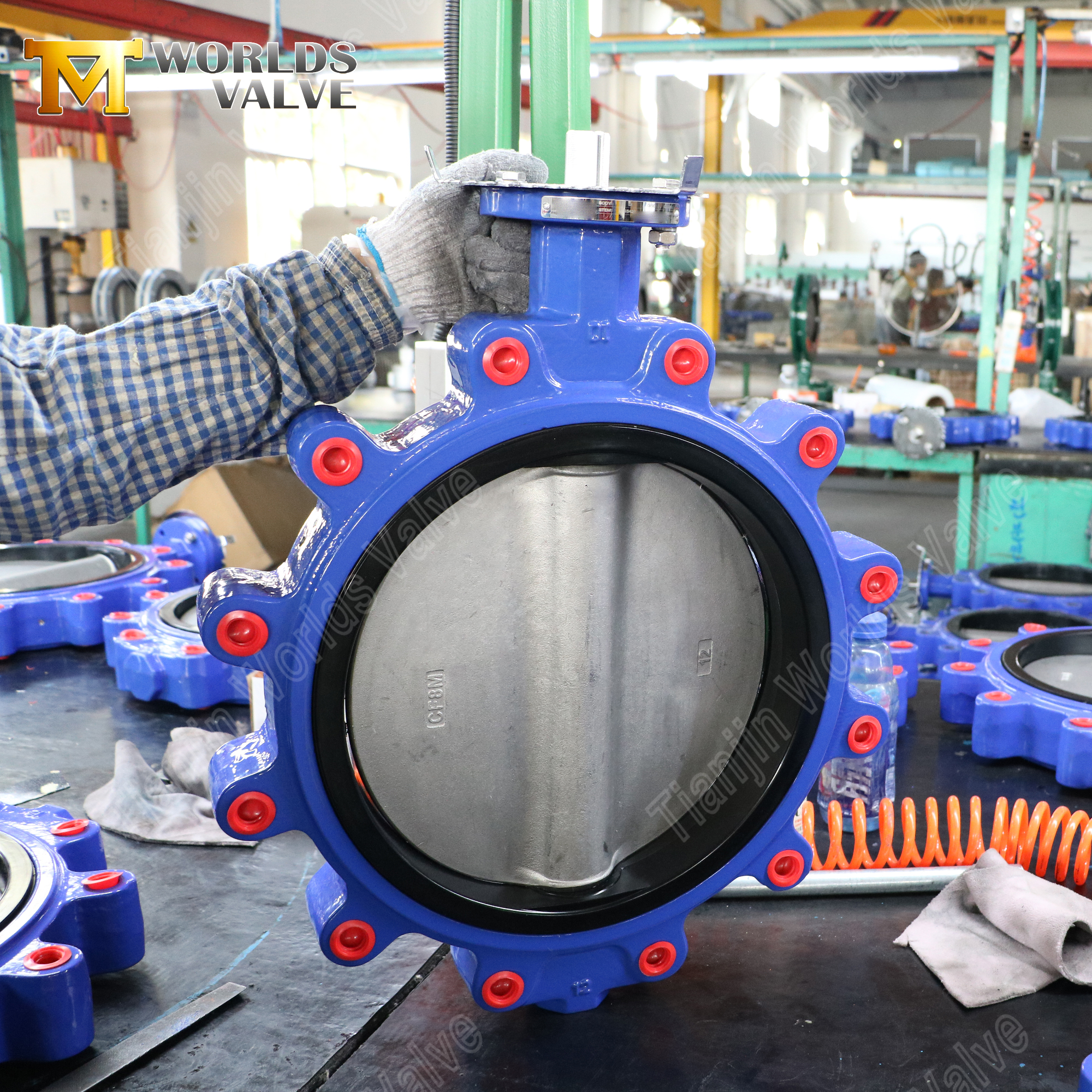

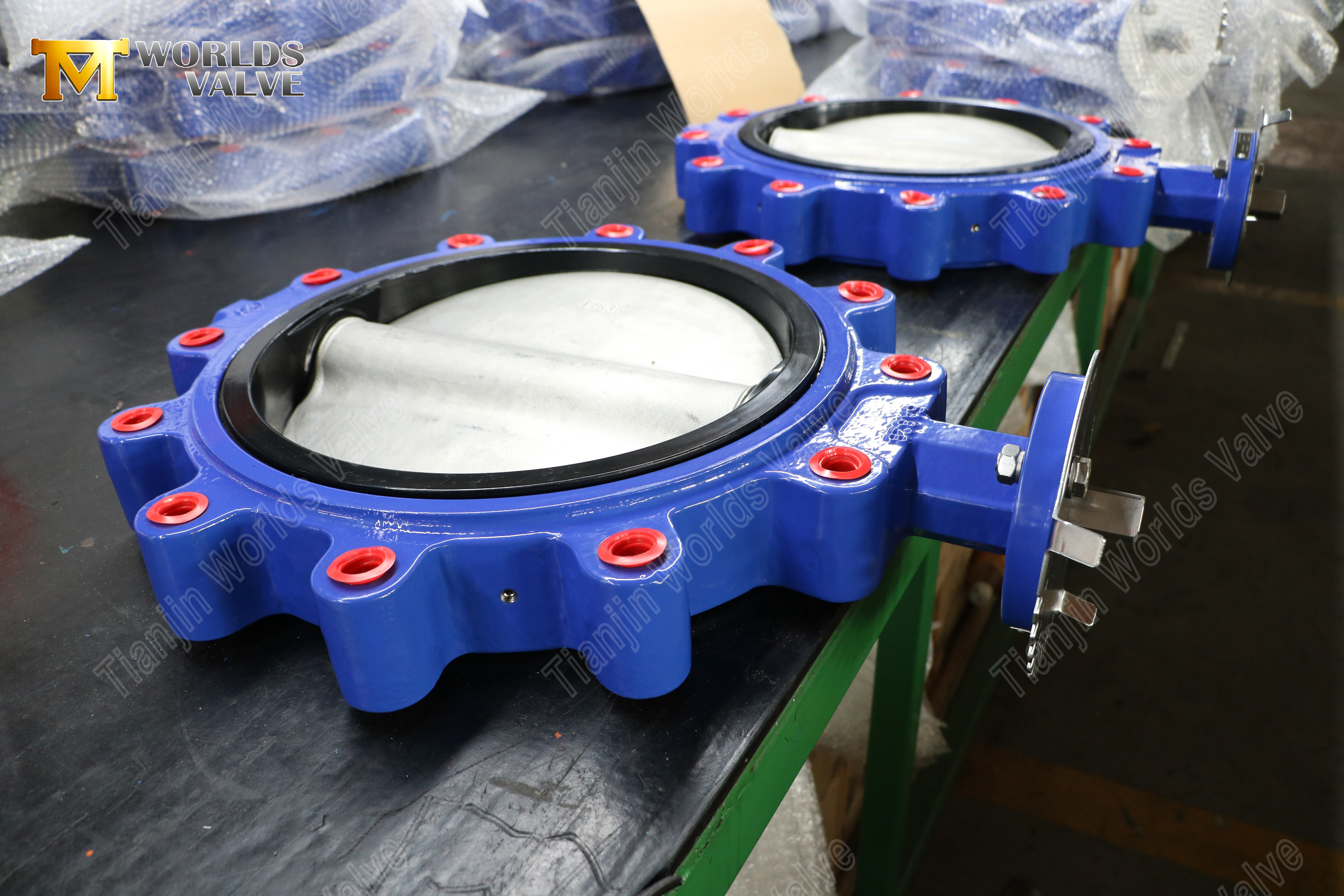

This 12-inch model features a ductile iron body, a CF8M stainless steel disc for superior corrosion resistance, an NBR seat for reliable sealing in oil and fuel service, and an SS420 stem for robust torque transmission. The NBR seat makes this valve particularly suited for media containing hydrocarbons, oils, and fuels–where EPDM would degrade.

As a direct OEM/ODM manufacturer with over 15 years of export experience, Tianjin Worlds Valve Co., Ltd. customizes materials, sizes, pressure ratings, flange standards, coatings, and actuators to your exact requirements. Products are exported to 50+ countries and backed by ISO 9001 (certified by LRQA), CE, UKCA, WRAS, and ACS certifications.

Introduce:

Lug Butterfly Valve |NBR Seat | DI Body | CF8 M Disc | OEM Manufacturer

Tianjin Worlds Valve Co., Ltd.–Your Reliable Source for Durable, Cost-Effective Flow Control

CBF02-TL01 - Detailed Product Info

Technical Specifications

This model is configured with the following parameters. Please note that every item listed below is customizable to your specific needs.

Key Features & Advantages

1. Lug Type Design–Dead-End Service & Maintenance Isolation

• Independent Bolting–Threaded lugs on both sides allow each flange to be bolted separately, enabling dead-end service and isolated maintenance without full pipeline shutdown.

• Superior Rigidity–The lug design withstands pipe stress, vibration, and thermal expansion better than wafer types.

• Easier Alignment–Valves can be centered and aligned before final bolt tightening, reducing installation time.

2. Body Material–Ductile Iron (GGG40)

• High Strength–Tensile strength ≥400 MPa, reliable under pressure surges.

• Impact Resistance– Nodular graphite structure withstands mechanical shock and vibration.

• Corrosion Protection–Epoxy coating (250μm minimum) resists external corrosion in water and industrial environments.

3. Disc Material–CF8M Stainless Steel (AISI 316)

• Superior Corrosion Resistance–Excellent resistance to pitting and crevice corrosion, particularly in chloride environments.

• Wide Chemical Compatibility–Suitable for water, mild chemicals, acids, and alkalis.

• Long Service Life–Extends valve life in aggressive media, reducing replacement frequency.

4. Seat Material–NBR (Nitrile Rubber)

• Excellent Oil & Fuel Resistance–NBR is specifically formulated to withstand mineral oils, greases, and hydrocarbon fuels, making it ideal for oil-handling and petrochemical systems.

• Good Abrasion Resistance–Withstands wear from small particles and frequent cycling.

• Wide Temperature Range– Maintains sealing from -20℃ to +100℃.

• Bubble-Tight Shut-Off–Reliable bi-directional sealing for oil, fuel, and general industrial service.

5. Stem Material–SS420 Stainless Steel

• High Strength–Martensitic stainless steel with high tensile strength for reliable torque transmission.

• Wear Resistant–Hardened surface resists galling and fretting during repeated cycling.

• Blow-Out Proof Design–Retention mechanism prevents accidental stem ejection under pressure surges.

6. ISO 5211 Top Flange–Ready for Automation

• Standardized Interface–Accepts hand lever, gear operator, electric, pneumatic, or hydraulic actuators.

• Easy Upgrade–Change actuation method without replacing the valve body.

Typical Applications

Lug butterfly valves with NBR seat & DI Body & CF8M Disc are trusted across a wide range of industries:

Quality Assurance & Certifications

Every lug butterfly valve undergoes rigorous quality control at our LRQA-audited ISO 9001:2015 certified facility:

• 100% pressure testing (shell and seat) per EN 12266 or API 598.

• Dimensional inspection against approved drawings.

• Material verification with traceable mill test certificates (MTC).

Certifications:

• ISO 9001:2015–Quality management system (certified by LRQA)

• CE–EU safety compliance

• UKCA–UK conformity assessment

• WRAS–UK drinking water approval (available on request)

• ACS–French health certification (available on request)

Why Choose Tianjin Worlds Valve?

• Quality you can trust. ISO 9001:2015 certified by LRQA. Every valve comes with material certificates and pressure test reports.

• NBR Seating Expertise. NBR seats are formulated for oil, fuel, and hydrocarbon service–where EPDM would fail. We match the right seat material to your media.

• Lug Valve Specialists. Extensive experience manufacturing lug butterfly valves for oil, gas, and industrial projects worldwide.

• Full Customization. Materials, sizes, pressure ratings, flange standards (ANSI, DIN, JIS, BS), coatings, actuators–all tailored to your specification.

• 19+ Years Export Experience. Serving 50+ countries across Europe, Americas, Middle East, and Asia-Pacific.

• 100% Traceability. Material certificates and pressure test reports with every order.

• Quick Turnaround. Dedicated project manager; typical lead time 20–30 days. Factory visits welcome in Tianjin.

Get in Touch – Customize Your Lug Valve Today:

Whether you need this 12-inch configuration with NBR seat, a different size, or a fully custom design – we’re ready to build to your specification.

Send us your requirements:

• Required size and pressure rating

• Media type and operating temperature

• Preferred material combination (body / disc / seat / stem)

• Actuator type (manual, gear, electric, pneumatic, hydraulic)

• Flange standard and drilling (ANSI, DIN, JIS, BS)

• Coating color (any RAL)

• Target quantity and destination port

Our team will respond within 24 hours with a quotation and engineering proposal.

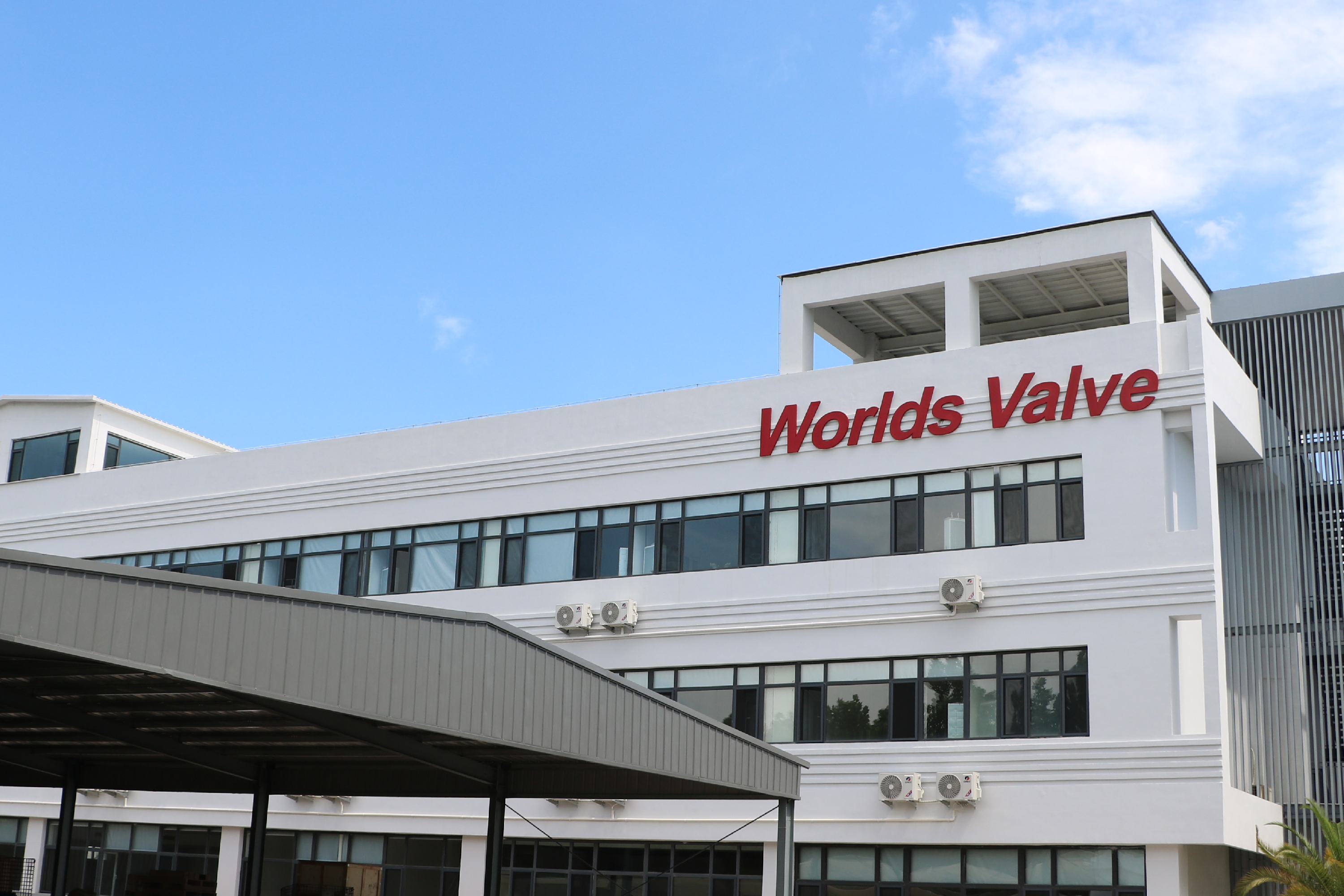

Factory visits welcome–come see how we manufacture your valves in Tianjin, China.
